The Core and curtain are ground as a unit for a precision fi t and must be purchased as a set.
Upper Half of Body.
Lower Half of Body. * 1004 ONLY
Item Series
Valve
Designation
No.
Item Name
100__
B C D
E
F G*
1
Simple Swivel Assem.
4, 14
2-5021-2
2-5021-2
2-5021-2
2-5021-2
2-5021-2
2-5021-2
2
Control Handle
4, 14
2-3434-2
2-3435-2
2-3435-2
2-3436-2
2-3436-2
2-3437-2
4
Quadrant
4, 14
2-1161-1
2-1162-1
2-1162-1
2-1163-1
2-1163-1
—
5
Handle Locking Screw
4, 14
R777-5230
R777-5230
R777-5230
R777-5350
R777-5350
R777-5340
6
Curtain Locking Screw
4, 14
R775-1940
R775-1940
R775-1940
R775-2870
R775-2870
R775-3550
7
Shaft
4
2-0890-1
2-0890-2
2-0890-3
2-0890-4
2-0890-5
2-0890-6
14
2-0890-1A
2-0890-2A
2-0890-3A
2-0890-4A
2-0890-5A
—
8
Curtain Adj.
4, 14
2-1617-1
2-1617-2
2-1617-3
2-1617-4
2-1617-5
2-1617-6
Screw and Knob
10
Indicator Plate
4, 14
2-0810-1
2-1137-1
2-1137-1
2-0686-1
2-0686-1
2-1613-1
11 Core
(Sleeve)† and
4
2-5897-1
2-5897-3
2-5897-5
2-5897-7
2-5897-9
2-5897-11
Curtain
(Slide)† Assy
14
2-5897-2
2-5897-4
2-5897-6
2-5897-8
2-5897-10
—
—
13
Body
4
2-0354-1
14
2-1626-1 2-0371-1 2-0410-1
2-0405-1
2-0424-1
2-0355-2A
—
8765-4-C(2")
8765-6-D(3")
8765-9-F(8")
14 Flange
4,
14
8765-3-B(1
1
/
2
") 8765-5-C(2
1
/
2
") 8765-7-D(4") 8765-8-E(6")
8765-4-B(2")
8765-6-C(3")
8765-8 × 7-D(6" × 4")
2-3753-1(10")
15
Welding Flange
4, 14
—
—
—
—
8765-9-FW(8")
2-3754-1(12")
2-9914-1(10")
2-3749-1(14")
16 Nameplate
4,
14
2-0993-1
2-0993-1
2-0993-1 2-0993-1 2-0993-1
2-0993-1
32 Coverplate
4,
14
2-0394-1
2-0427-1
2-0428-1 2-0429-1 2-0888-1
2-0889-1
33 Collar
4,
14
2-0891-1
2-0891-2
2-0891-2 2-0891-3 2-0891-3
2-0891-4
34 Gasket
4,
14
4-5371-1
4-5371-2
4-5371-3 4-5371-4 4-5371-5
4-5371-6

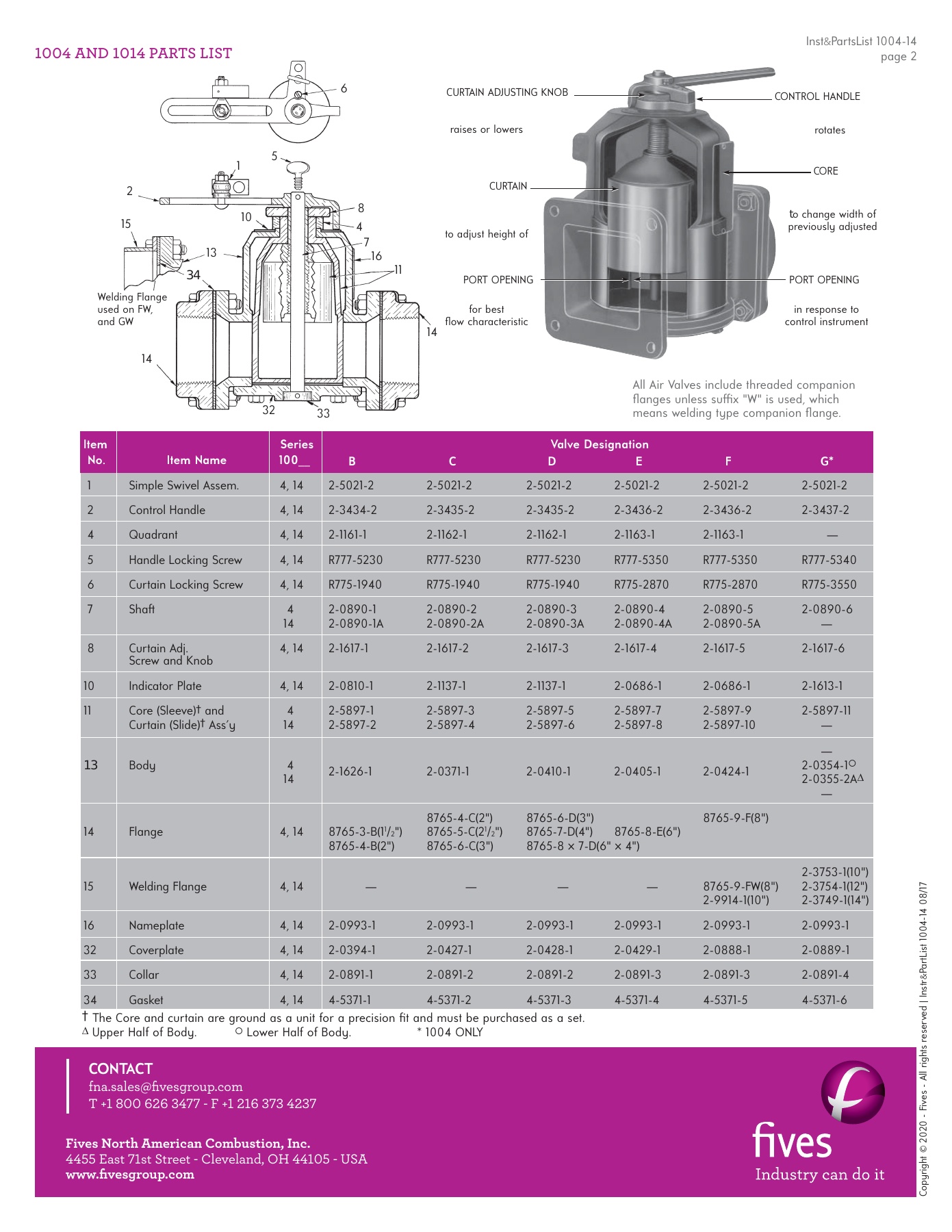

1004 AND 1014 PARTS LIST
CONTROL HANDLE
CORE
PORT OPENING
PORT OPENING
CURTAIN
CURTAIN ADJUSTING KNOB
raises or lowers
to adjust height of
for best
fl ow characteristic
rotates
t
o change width of
previously adjusted
in response to
control instrument
All Air Valves include threaded companion
fl anges unless suffi
x "W" is used, which
means welding type companion fl ange.
6
1
2
15
5
10
13
34
Welding Flange
used on FW,
and GW
14
32
33
14
16
11
7
4
8
Inst
&
PartsList 1004-14
