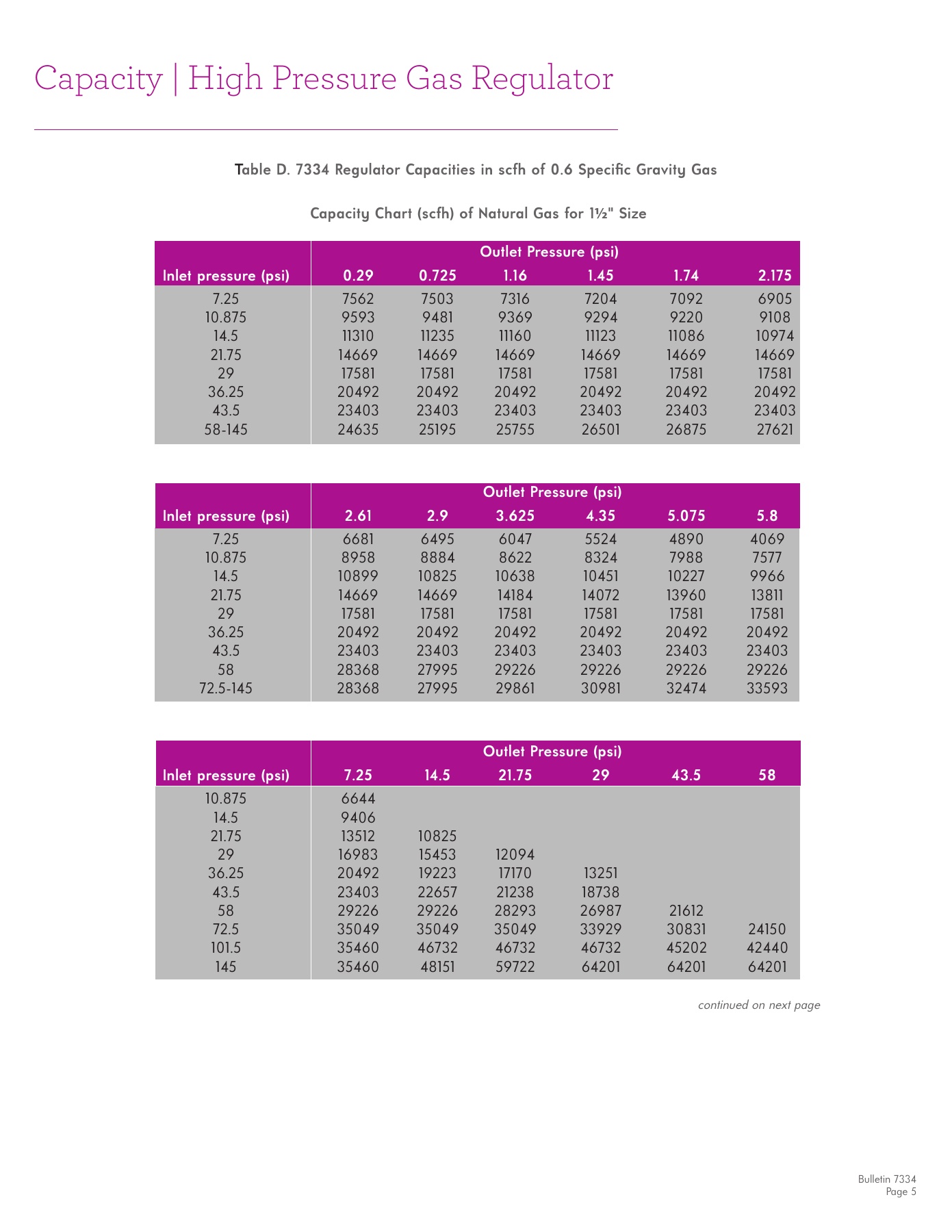

Capacity | High Pressure Gas Regulator
Bulletin 7334
Page 5
T
able D. 7334 Regulator Capacities in scfh of 0.6 Specifi c Gravity Gas
Inlet pressure (psi)
2.61
2.9
3.625
4.35
5.075
5.8
7.25
6681
6495
6047 5524
4890
4069
10.875
8958
8884
8622 8324 7988 7577
14.5
10899
10825
10638
10451
10227
9966
21.75
14669
14669
14184
14072
13960
13811
29
17581 17581 17581 17581 17581 17581
36.25
20492 20492 20492 20492 20492 20492
43.5
23403 23403 23403 23403 23403 23403
58
28368 27995 29226 29226 29226 29226
72.5-145
28368
27995
29861 30981 32474 33593
Inlet pressure (psi)
7.25
14.5
21.75
29
43.5
58
10.875
6644
14.5
9406
21.75
13512
10825
29
16983
15453
12094
36.25
20492
19223
17170 13251
43.5
23403
22657
21238
18738
58
29226
29226
28293
26987
21612
72.5
35049
35049
35049
33929
30831
24150
101.5
35460
46732
46732
46732
45202
42440
145
35460
48151
59722
64201
64201
64201
Outlet Pressure (psi)
Outlet Pressure (psi)
Capacity Chart (scfh) of Natural Gas for 1
½
" Size
continued on next page
Inlet pressure (psi)
0.29
0.725
1.16
1.45
1.74
2.175
7.25
7562
7503
7316 7204 7092 6905
10.875
9593 9481 9369 9294 9220 9108
14.5
11310
11235
11160 11123
11086
10974
21.75
14669 14669 14669 14669 14669 14669
29
17581 17581 17581 17581 17581 17581
36.25
20492 20492 20492 20492 20492 20492
43.5
23403 23403 23403 23403 23403 23403
58-145
24635
25195
25755 26501 26875 27621
Outlet Pressure (psi)
