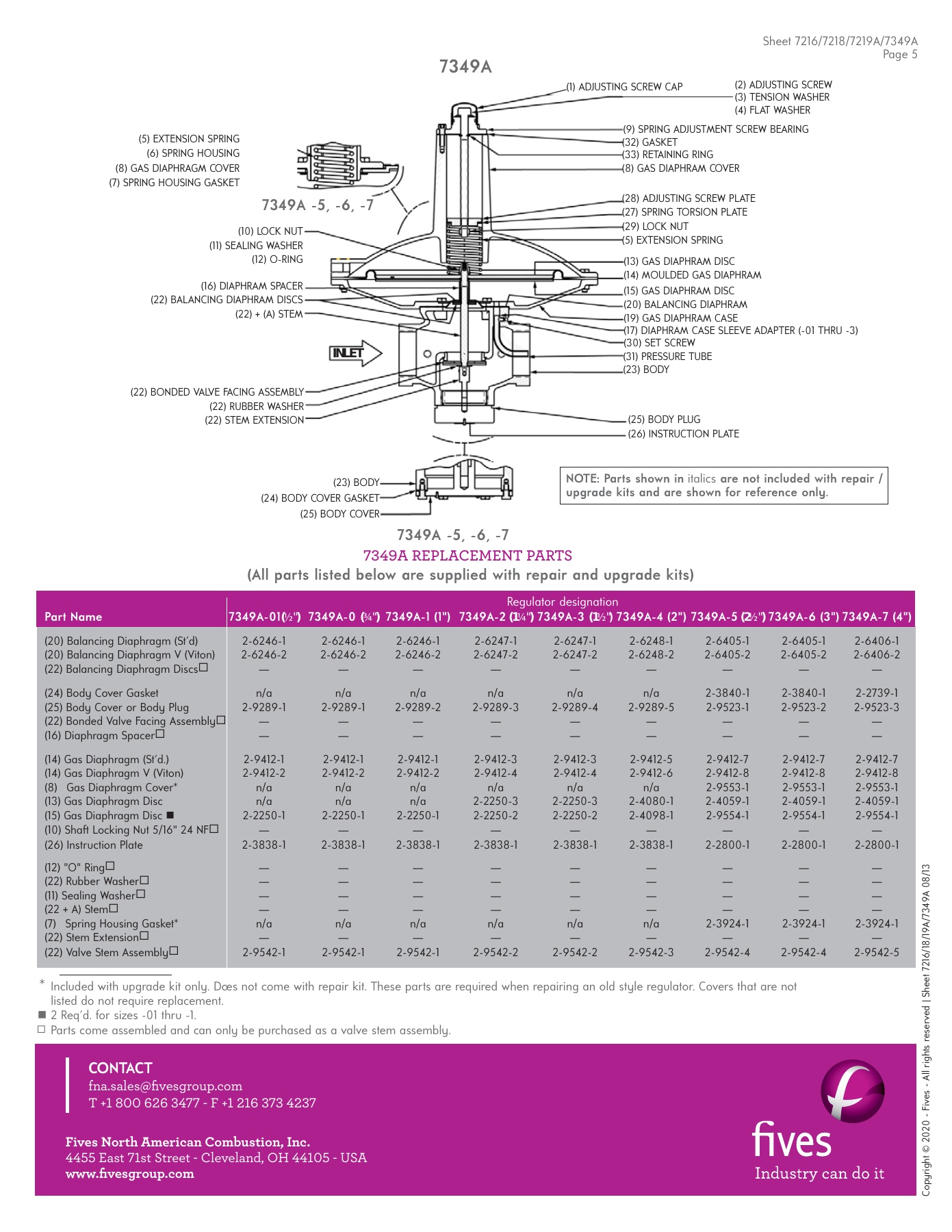

Sheet 7216/7218/7219A/7349A

Page 5

INLET

(5) EXTENSION SPRING

(6) SPRING HOUSING

(8) GAS DIAPHRAGM COVER

(7) SPRING HOUSING GASKET

7349A -5, -6, -7

7349A -5, -6, -7

(31) PRESSURE TUBE
(23) BODY

(25) BODY PLUG
(26) INSTRUCTION PLATE

(13) GAS DIAPHRAM DISC
(14) MOULDED GAS DIAPHRAM
(15) GAS DIAPHRAM DISC
(20) BALANCING DIAPHRAM
(19) GAS DIAPHRAM CASE
(17) DIAPHRAM CASE SLEEVE ADAPTER (-01 THRU -3)
(30) SET SCREW

(28) ADJUSTING SCREW PLATE
(27) SPRING TORSION PLATE
(29) LOCK NUT
(5) EXTENSION SPRING

(10) LOCK NUT

(11) SEALING WASHER

(12) O-RING

(16) DIAPHRAM SPACER

(22) BALANCING DIAPHRAM DISCS

(22) + (A) STEM

(22) BONDED VALVE FACING ASSEMBLY

(22) RUBBER WASHER

(22) STEM EXTENSION

(23) BODY

(24) BODY COVER GASKET

(25) BODY COVER

NOTE: Parts shown in

 italics

 are not included with repair /

upgrade kits and are shown for reference only.



Regulator designation

Part Name

7349A-01

(

½

"

7349A-0

(

¾

")



7349A-1 (1")  7349A-2

 (1

¼

")

 7349A-3

(1

½

"

) 7349A-4 (2") 7349A-5

 (2

½

")

 7349A-6 (3") 7349A-7 (4")

(20) Balancing Diaphragm (Std)

2-6246-1

2-6246-1

2-6246-1

2-6247-1

2-6247-1

2-6248-1

2-6405-1

2-6405-1

2-6406-1

(20) Balancing Diaphragm V (Viton)

2-6246-2

2-6246-2

2-6246-2

2-6247-2

2-6247-2

2-6248-2

2-6405-2

2-6405-2

2-6406-2

(22) Balancing Diaphragm Discs



—  — —  —  — — — — —

(24) Body Cover Gasket

n/a

n/a

n/a

n/a

n/a

n/a

2-3840-1

2-3840-1

2-2739-1

(25) Body Cover or Body Plug

2-9289-1

2-9289-1

2-9289-2

2-9289-3

2-9289-4

2-9289-5

2-9523-1

2-9523-2

2-9523-3

(22) Bonded Valve Facing Assembly



—  — —  —  — — — — —

(16) Diaphragm Spacer



—  — —  —  — — — — —

(14) Gas Diaphragm (Std.)

2-9412-1

2-9412-1

2-9412-1

2-9412-3

2-9412-3

2-9412-5

2-9412-7

2-9412-7

2-9412-7

(14) Gas Diaphragm V (Viton)

2-9412-2

2-9412-2

2-9412-2

2-9412-4

2-9412-4

2-9412-6

2-9412-8

2-9412-8

2-9412-8

(8)  Gas Diaphragm Cover*

n/a

n/a

n/a

n/a

n/a

n/a

2-9553-1

2-9553-1

2-9553-1

(13) Gas Diaphragm Disc

n/a

n/a

n/a

2-2250-3

2-2250-3

2-4080-1

2-4059-1

2-4059-1

2-4059-1

(15) Gas Diaphragm Disc

 2-2250-1

2-2250-1

2-2250-1

2-2250-2

2-2250-2

2-4098-1

2-9554-1

2-9554-1

2-9554-1

(10) Shaft  Locking Nut 5/16" 24 NF



—  — —  —  — — — — —

(26) Instruction Plate

2-3838-1

2-3838-1

2-3838-1

2-3838-1

2-3838-1

2-3838-1

2-2800-1

2-2800-1

2-2800-1

(12) "O" Ring



—  — —  —  — — — — —

(22) Rubber Washer



—  — —  —  — — — — —

(11) Sealing Washer



—  — —  —  — — — — —

(22 + A) Stem



—  — —  —  — — — — —

(7)  Spring Housing Gasket*

n/a

n/a

n/a

n/a

n/a

n/a

2-3924-1

2-3924-1

2-3924-1

(22) Stem Extension



—  — —  —  — — — — —

(22) Valve Stem Assembly

 2-9542-1

2-9542-1

2-9542-1

2-9542-2

2-9542-2

2-9542-3

2-9542-4

2-9542-4

2-9542-5

7349A REPLACEMENT PARTS

 (All parts listed below are supplied with repair and upgrade kits)

7349A

(1) ADJUSTING SCREW CAP

(9) SPRING ADJUSTMENT SCREW BEARING

(32) GASKET
(33) RETAINING RING
(8) GAS DIAPHRAM COVER

(2) ADJUSTING SCREW
(3) TENSION WASHER
(4) FLAT WASHER

Cop

yr

igh

t © 2020 - F

iv

es - All r

igh

ts r

eser

ved | Shee

t 7216/18/19A/7349A 08/13



*

  Included with upgrade kit only. Dœ s not come with repair kit. These parts are required when repairing an old style regulator. Covers that are not

    listed do not require replacement.



2 Reqd. for sizes -01 thru -1.



Parts come assembled and can only be purchased as a valve stem assembly.
