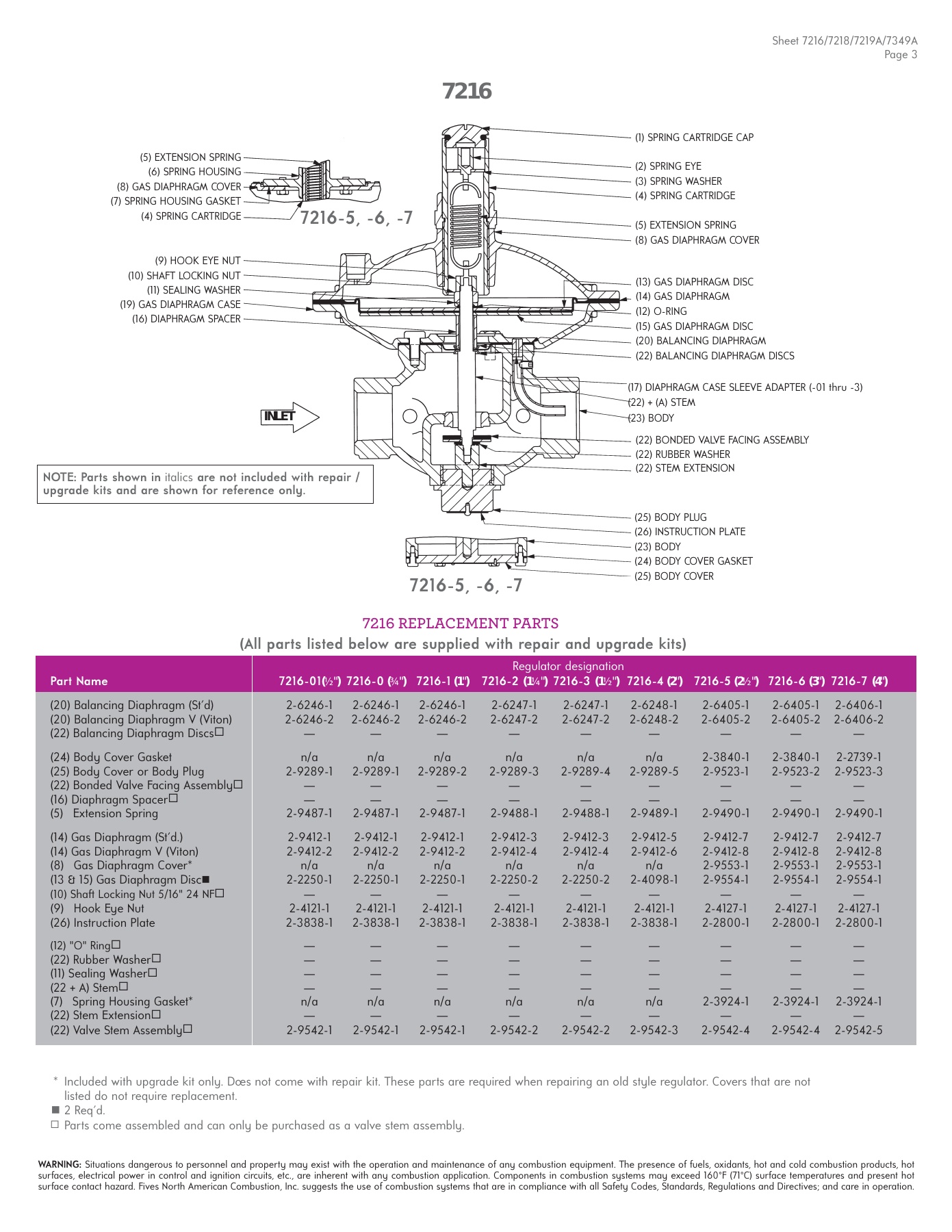

Sheet 7216/7218/7219A/7349A

Page 3

INLET

(5) EXTENSION SPRING

(6) SPRING HOUSING

(8) GAS DIAPHRAGM COVER

(7) SPRING HOUSING GASKET

(4) SPRING CARTRIDGE

(9) HOOK EYE NUT

(10) SHAFT LOCKING NUT

(11) SEALING WASHER

(19) GAS DIAPHRAGM CASE

(16) DIAPHRAGM SPACER

7216-5, -6, -7

7216-5, -6, -7

(1) SPRING CARTRIDGE CAP

(2) SPRING EYE
(3) SPRING WASHER
(4) SPRING CARTRIDGE

(5) EXTENSION SPRING
(8) GAS DIAPHRAGM COVER

(13) GAS DIAPHRAGM DISC
(14) GAS DIAPHRAGM
(12) O-RING
(15) GAS DIAPHRAGM DISC
(20) BALANCING DIAPHRAGM
(22) BALANCING DIAPHRAGM DISCS

(17) DIAPHRAGM CASE SLEEVE ADAPTER (-01 thru -3)
(22) + (A) STEM
(23) BODY

(22) BONDED VALVE FACING ASSEMBLY
(22) RUBBER WASHER
(22) STEM EXTENSION

(25) BODY PLUG
(26) INSTRUCTION PLATE
(23) BODY
(24) BODY COVER GASKET
(25) BODY COVER

NOTE: Parts shown in

 italics

 are not included with repair /

upgrade kits and are shown for reference only.



Regulator designation

Part Name

7216-01

(

½

")



7216-0

 (

¾

")

 7216-1

 (1")

 7216-2

(1

¼

")

 7216-3

(1

½

")

 7216-4

 (2")

 7216-5

 (2

½

")

 7216-6

 (3")

 7216-7

(4")

(20) Balancing Diaphragm (Std)

2-6246-1

2-6246-1

2-6246-1

2-6247-1

2-6247-1

2-6248-1

2-6405-1

2-6405-1  2-6406-1

(20) Balancing Diaphragm V (Viton)

2-6246-2

2-6246-2

2-6246-2

2-6247-2

2-6247-2

2-6248-2

2-6405-2

2-6405-2  2-6406-2

(22) Balancing Diaphragm Discs



— — —  —  —  —  —  — —

(24) Body Cover Gasket

n/a

n/a

n/a

n/a

n/a

n/a

2-3840-1

2-3840-1

2-2739-1

(25) Body Cover or Body Plug

2-9289-1

2-9289-1

2-9289-2

2-9289-3

2-9289-4

2-9289-5

2-9523-1

2-9523-2  2-9523-3

(22) Bonded Valve Facing Assembly



— — —  —  —  —  —  — —

(16) Diaphragm Spacer



— — —  —  —  —  —  — —

(5)  Extension Spring

2-9487-1

2-9487-1

2-9487-1

2-9488-1

2-9488-1

2-9489-1

2-9490-1

2-9490-1  2-9490-1

(14) Gas Diaphragm (Std.)

2-9412-1

2-9412-1

2-9412-1

2-9412-3

2-9412-3

2-9412-5

2-9412-7

2-9412-7

2-9412-7

(14) Gas Diaphragm V (Viton)

2-9412-2

2-9412-2

2-9412-2

2-9412-4

2-9412-4

2-9412-6

2-9412-8

2-9412-8

2-9412-8

(8)  Gas Diaphragm Cover*

n/a

n/a

n/a

n/a

n/a

n/a

2-9553-1

2-9553-1

2-9553-1

(13 & 15) Gas Diaphragm Disc



2-2250-1 2-2250-1 2-2250-1  2-2250-2  2-2250-2 2-4098-1  2-9554-1  2-9554-1 2-9554-1

(10) Shaft  Locking Nut 5/16" 24 NF



— — —  —  —  —  —  — —

(9)  Hook Eye Nut

2-4121-1

2-4121-1

2-4121-1

2-4121-1

2-4121-1

2-4121-1

2-4127-1

2-4127-1

2-4127-1

(26) Instruction Plate

2-3838-1

2-3838-1

2-3838-1

2-3838-1

2-3838-1

2-3838-1

2-2800-1

2-2800-1  2-2800-1

(12) "O" Ring



— — —  —  —  —  —  — —

(22) Rubber Washer



— — —  —  —  —  —  — —

(11) Sealing Washer



— — —  —  —  —  —  — —

(22 + A) Stem



— — —  —  —  —  —  — —

(7)  Spring Housing Gasket*

n/a

n/a

n/a

n/a

n/a

n/a

2-3924-1

2-3924-1

2-3924-1

(22) Stem Extension



— — —  —  —  —  —  — —

(22) Valve Stem Assembly



2-9542-1 2-9542-1 2-9542-1  2-9542-2  2-9542-2 2-9542-3  2-9542-4 2-9542-4 2-9542-5

 *  Included with upgrade kit only. Dœ s not come with repair kit. These parts are required when repairing an old style regulator. Covers that are not
    listed do not require replacement.

 2 Reqd.



Parts come assembled and can only be purchased as a valve stem assembly.

7216 REPLACEMENT PARTS



(All parts listed below are supplied with repair and upgrade kits)

7216
