CAPACITIES

(0.85 sp gr oil @ 48 SSU)

Note

:  In 7177A Relief Valves initial fl ow or bubble point occurs at 5 psig below relief setting. Tight shutoff  point occurs at 8 psig

below relief setting.

LIGHT OIL PIPING SCHEMATIC

To order, specify: 7177A-(code)-(specify end of spring range) Relief Valve


Examples:

 7177A-03-75

¼

" relief valve with 25-75 psi spring

 7177A-01-140

½

" relief valve with 70-140 psi spring

Bulletin 7177A

Page 2

To other burner zones

Return

Recirculating system

7177A Relief Valve

P

P



5 7 10

15

20

30

50

75

100



GPM GPM  GPM GPM GPM GPM GPM GPM GPM

 5.2

5.4

7.8  9.0

10.2  10.8  13.0  15.2  16.3

 5.1

6.4

8.4  9.9

11.9  11.9  14.1  16.3  17.4

 5.6

7.1

9.2  10.8  13.0  14.0  16.3  17.4  18.4

 13.0

15.2

19.5  22.8  26.0  29.3  34.7  39.0  43.4

 13.0

16.3

20.6  24.9  29.3

31.5  38.0  41.2  45.6

 14.1

18.4

23.9  28.2  32.5  35.8  41.2  44.5  48.8

 26.0

30.4

38.0  44.5

51.0

55.3  62.9  70.5  78.1

 29.3

34.7

42.3  48.8  56.4

59.7  68.3  74.8  82.4

 31.5

38.0

47.7  55.3  62.9  67.2  74.8  81.3  87.9

Designation

7177A-03

1/4

1/2

3/4

and 1

7177A-0

7177A-1

7177A-01

Pressure Build-up over Relief setting (psig)

Size

(inches)

Relief

pressure

setting

(psig)

35
50
75
35
50
75

35
50
75

7177A Relief Valves are used with or in place of 7142A and 7152A
Oil Pressure Regulators.

Relief Valves avoid build-up of pressure upstream of regulators or
other equipment, which can occur particularly when burners are
turned down to low fl ows.

Relief valve selection usually is not critical since gph capacities
exceed those of pumps encountered in normal piping systems.

When sizing a relief valve, for every application, the max
pressure conditions, the wide-open regulator fl ow, capacity, and
constant downstream demand should be determined. This is then
used to select the appropriate relief valve for the application.

Relief valves can be installed in any position.

Outlet pressure is adjusted by loosening locknut and turning
spring adjusting screw on top of regulator, then tightening
locknut.

More trim options are available upon request to Fives North
American Combustion, Inc.

—



7177A Relief Valves have a 25-75 psig spring or 70-140 psig.

     Other spring ranges are available upon request

—

  Body: cast iron with stainless trim.

—



Diaphragm: neoprene.

—



Seat: nitrile.

—



Maximum temperature: 180°F.

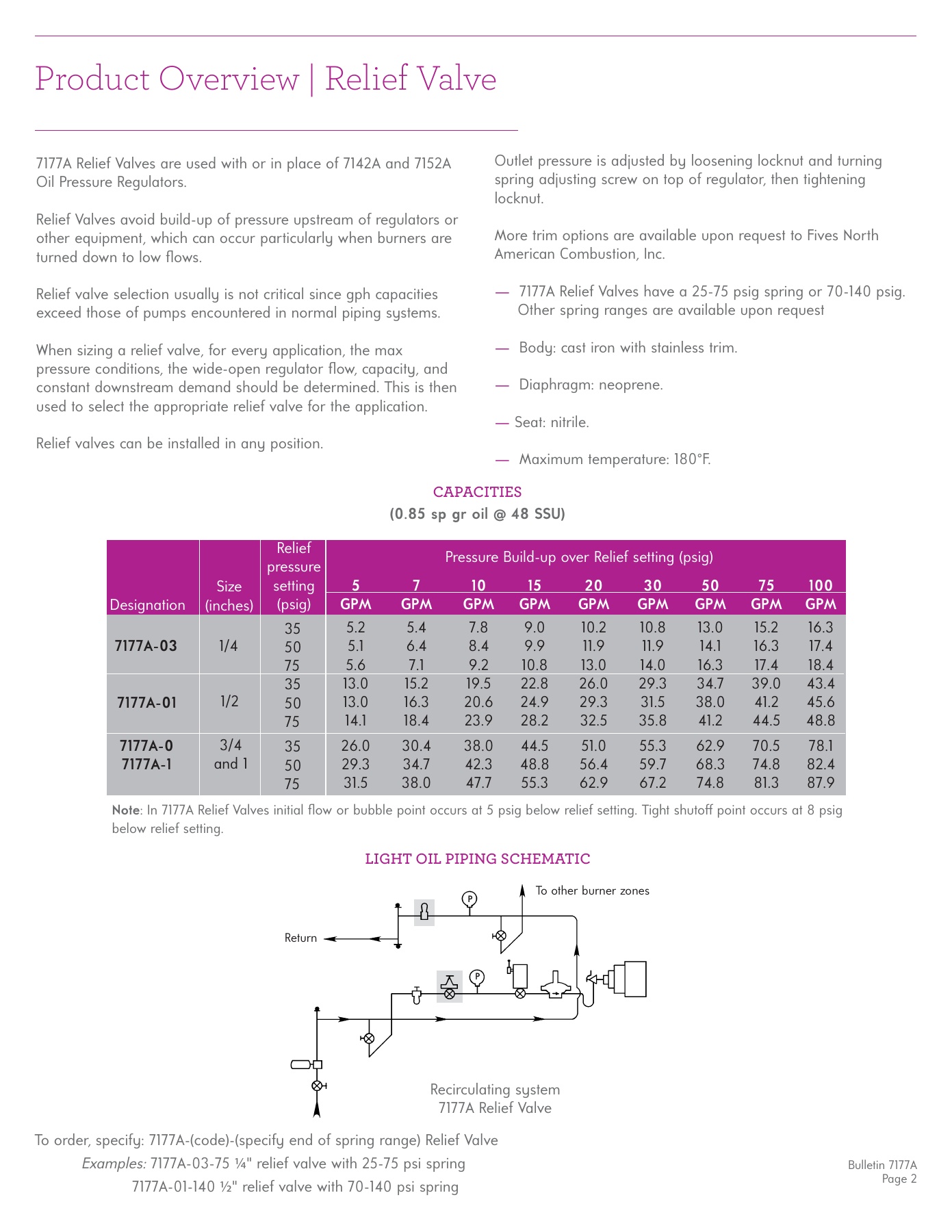

Product Overview | Relief Valve
