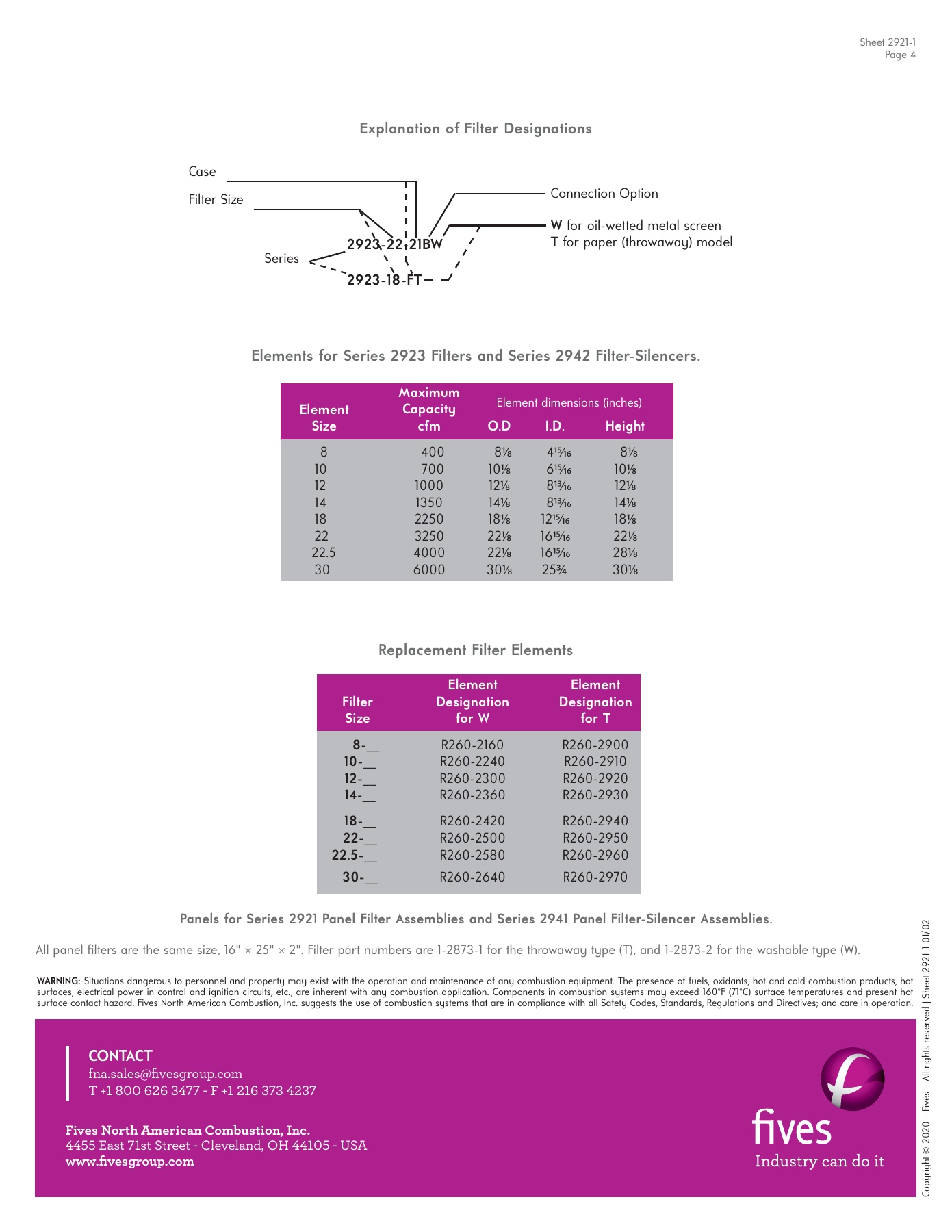

Sheet 2921-1
Page 4
Explanation of Filter Designations
Element Element
Filter
Designation
Designation
Size
for W
for T
8-__
R260-2160 R260-2900
10-__
R260-2240 R260-2910
12-__
R260-2300
R260-2920
14-__
R260-2360
R260-2930
18-__
R260-2420 R260-2940
22-__
R260-2500 R260-2950
22.5-__
R260-2580 R260-2960
30-__
R260-2640 R260-2970
Maximum
Element
Capacity
Size
cfm
O.D I.D. Height
8
400
8
1⁄8
4
15⁄16
8
1⁄8
10
700
10
1⁄8
6
15⁄16
10
1⁄8
12
1000
12
1⁄8
8
13⁄16
12
1⁄8
14
1350
14
1⁄8
8
13⁄16
14
1⁄8
18
2250
18
1⁄8
12
15⁄16
18
1⁄8
22
3250
22
1⁄8
16
15⁄16
22
1⁄8
22.5
4000 22
1⁄8
16
15⁄16
28
1⁄8
30
6000 30
1⁄8
25
¾
30
1⁄8
Element dimensions (inches)
Panels for Series 2921 Panel Filter Assemblies and Series 2941 Panel Filter-Silencer Assemblies.
All panel fi lters are the same size, 16"
25"
2". Filter part numbers are 1-2873-1 for the throwaway type (T), and 1-2873-2 for the washable type (W).
Elements for Series 2923 Filters and Series 2942 Filter-Silencers.
2923-22-21BW
2923-18-FT
Connection Option
W
for oil-wetted metal screen
T
for paper (throwaway) model
Case
Filter Size
Series
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts r
eser
ved | Shee
t 2921-1 01/02
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
Fives North American Combustion, Inc.
4455 East 71st Street - Cleveland, OH 44105 - USA
www.fi vesgroup.com
CONTACT
fna.sales@fi vesgroup.com
T +1 800 626 3477 - F +1 216 373 4237
Replacement Filter Elements
