Instructions 2600-2

Page 2

2600 and 2600-F BLOWER PARTS

USE EXTREME CAUTION WHEN WORKING AROUND
TURBO BLOWERS. HIGH VOLTAGE AND ROTATING
PARTS CAN CAUSE SERIOUS OR FATAL INJURY.

Seal

Inner Impeller

Outer Half Case

Discharge
Gasket

Seal

Outer Impeller

Stationary Vane

Inner Half Case

Shaft  Seal

Seal Retainer

Heat Slinger

Heat Shield

Outlet

SW Discharge
Adapter

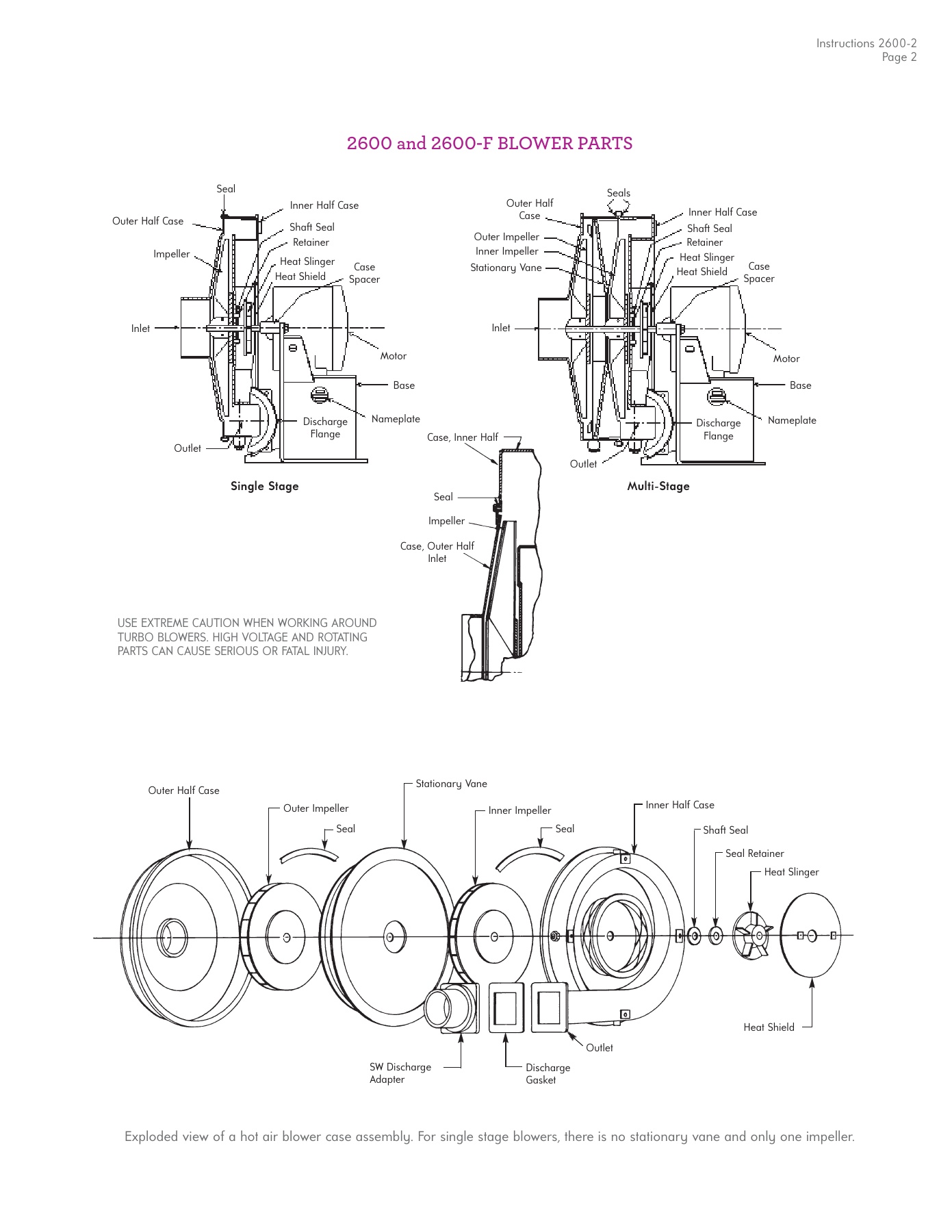

Exploded view of a hot air blower case assembly. For single stage blowers, there is no stationary vane and only one impeller.

Seal

Outer Half Case

Impeller

Inlet

Outlet

Discharge

Flange

Nameplate

Base

Motor

Case

Spacer

Heat Slinger

Heat Shield

Retainer

Shaft  Seal

Inner Half Case

Case, Inner Half

Single Stage

Seal

Impeller

Case, Outer Half

Inlet

Seals

Outer Half

Case

Outer Impeller

Inner Impeller

Stationary Vane

Inlet

Outlet

Discharge

Flange

Nameplate

Base

Motor

Case

Spacer

Retainer

Shaft  Seal

Inner Half Case

Heat Shield

Heat Slinger

Multi-Stage
