Designations for Standard Motors
(Enter motor on line below blower)
Blower Designations
TEFC Motors (T)
Capacities and Pressures
(Blower dœ s not include motor)
(230-460/3/60)
at 115% and 100% Motor Ratings
2308-17/1-__-2D
T2.0-B36T1SC
37 500 scfh at 5.6 osi; 32 400 scfh at 7 osi
2312-26/1-__7.5D
T7.5-B36T1SC
93 500 scfh at 6.4 osi; 81 500 scfh at 8.8 osi
2316-19/1-__5D
T5.0-B36T1SC
46 500 scfh at 12.8 osi; 40 200 scfh at 14.8 osi
The above three blower/motor combinations are standard in that they are assembled from all standard parts without requiring an engineering envelope.
They are non-catalog because their pressure ratings fall outside the parameters for 2300 Blowers.
Keyed impellers.
DIMENSIONS SHOWN ARE SUBJECT TO CHANGE. PLEASE OBTAIN CERTIFIED PRINTS FROM FIVES NORTH AMERICAN COMBUSITON, INC.
IF SPACE LIMITATIONS OR OTHER CONSIDERATIONS MAKE EXACT DIMENSION(S) CRITICAL
.
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts
r
eser
ved | Shee
t 2300-9 01/02
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.

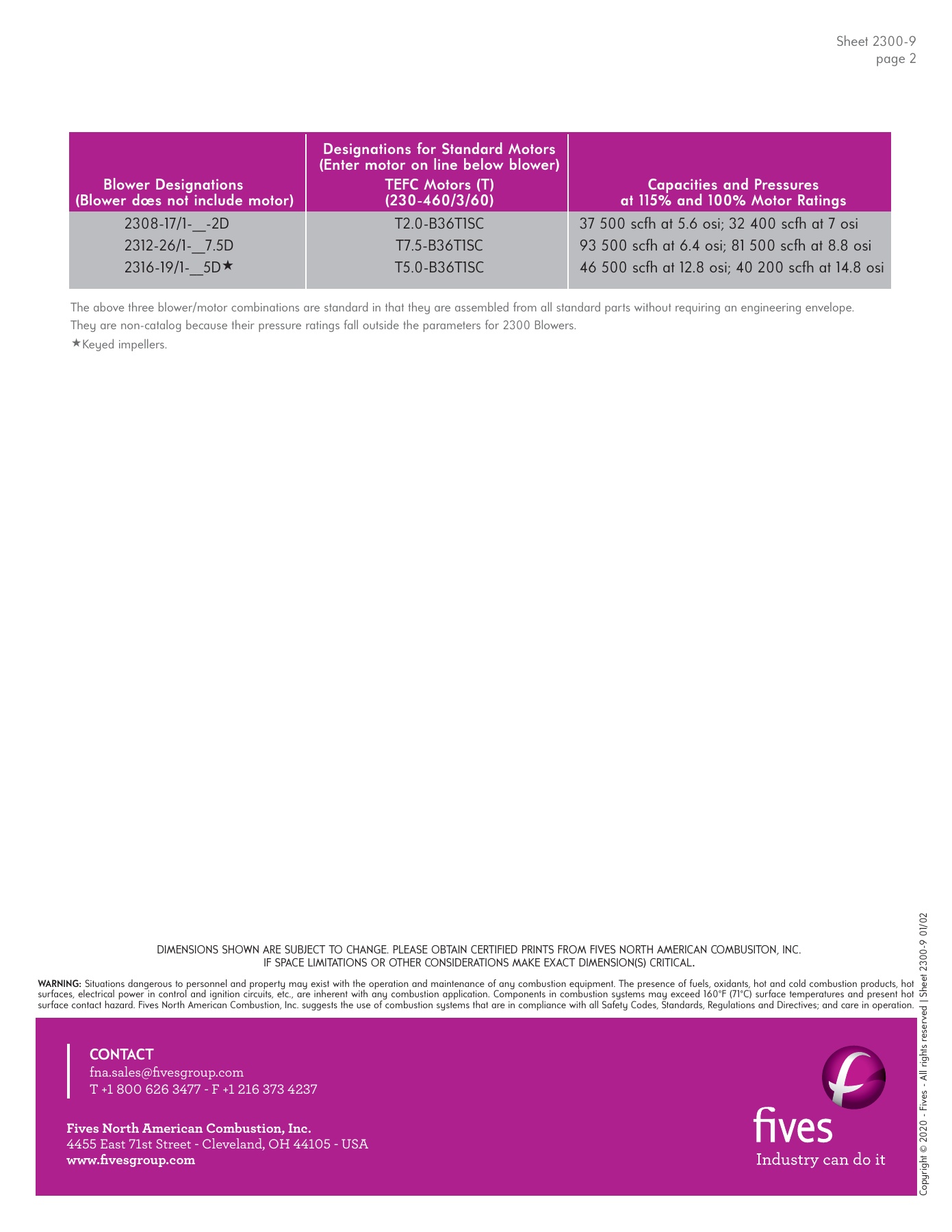

Sheet 2300-9
