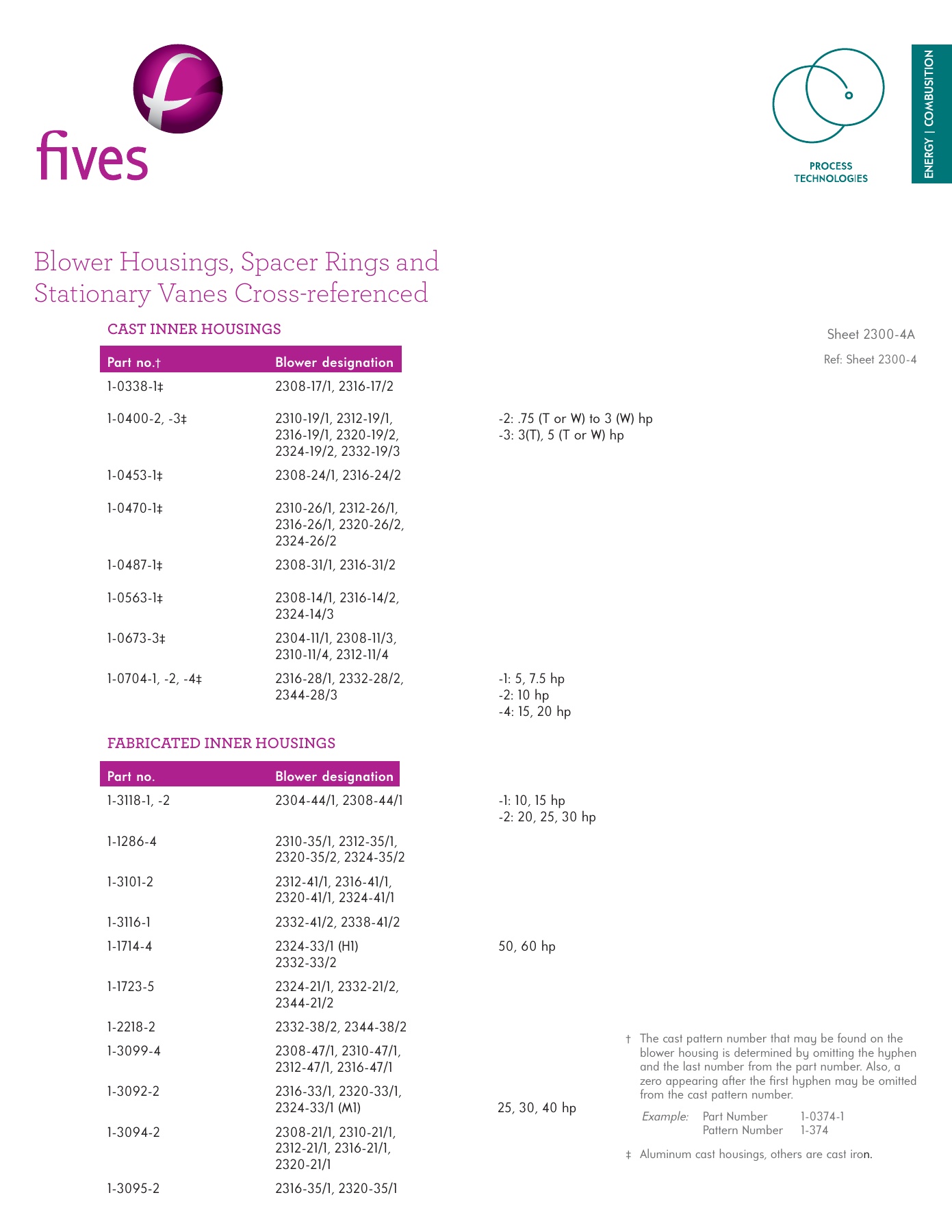

Sheet 2300-4A
Blower Housings, Spacer Rings and
Stationary Vanes Cross-referenced
Ref: Sheet 2300-4
† The cast pattern number that may be found on the
blower housing is determined by omitting the hyphen
and the last number from the part number. Also, a
zero appearing aft er the fi rst hyphen may be omitted
from the cast pattern number.
Example:
Part
Number
1-0374-1
Pattern
Number 1-374
‡ Aluminum cast housings, others are cast iro
n.
CAST INNER HOUSINGS
Part no.
†
Blower designation
1-0338-1‡ 2308-17/1,
2316-17/2
1-0400-2, -3‡
2310-19/1, 2312-19/1,
-2: .75 (T or W) to 3 (W) hp
2316-19/1, 2320-19/2,
-3: 3(T), 5 (T or W) hp
2324-19/2,
2332-19/3
1-0453-1‡ 2308-24/1,
2316-24/2
1-0470-1‡ 2310-26/1,
2312-26/1,
2316-26/1,
2320-26/2,
2324-26/2
1-0487-1‡ 2308-31/1,
2316-31/2
1-0563-1‡ 2308-14/1,
2316-14/2,
2324-14/3
1-0673-3‡ 2304-11/1,
2308-11/3,
2310-11/4,
2312-11/4
1-0704-1, -2, -4‡
2316-28/1, 2332-28/2,
-1: 5, 7.5 hp
2344-28/3
-2: 10 hp
-4: 15, 20 hp
FABRICATED INNER HOUSINGS
Part no.
Blower designation
1-3118-1, -2
2304-44/1, 2308-44/1
-1: 10, 15 hp
-2: 20, 25, 30 hp
1-1286-4 2310-35/1,
2312-35/1,
2320-35/2,
2324-35/2
1-3101-2 2312-41/1,
2316-41/1,
2320-41/1,
2324-41/1
1-3116-1 2332-41/2,
2338-41/2
1-1714-4
2324-33/1 (H1)
50, 60 hp
2332-33/2
1-1723-5 2324-21/1,
2332-21/2,
2344-21/2
1-2218-2 2332-38/2,
2344-38/2
1-3099-4 2308-47/1,
2310-47/1,
2312-47/1,
2316-47/1
1-3092-2 2316-33/1,
2320-33/1,
2324-33/1 (M1)
25, 30, 40 hp
1-3094-2 2308-21/1,
2310-21/1,
2312-21/1,
2316-21/1,
2320-21/1
1-3095-2 2316-35/1,
2320-35/1
