Bulletin 8351C-2013

Page 3

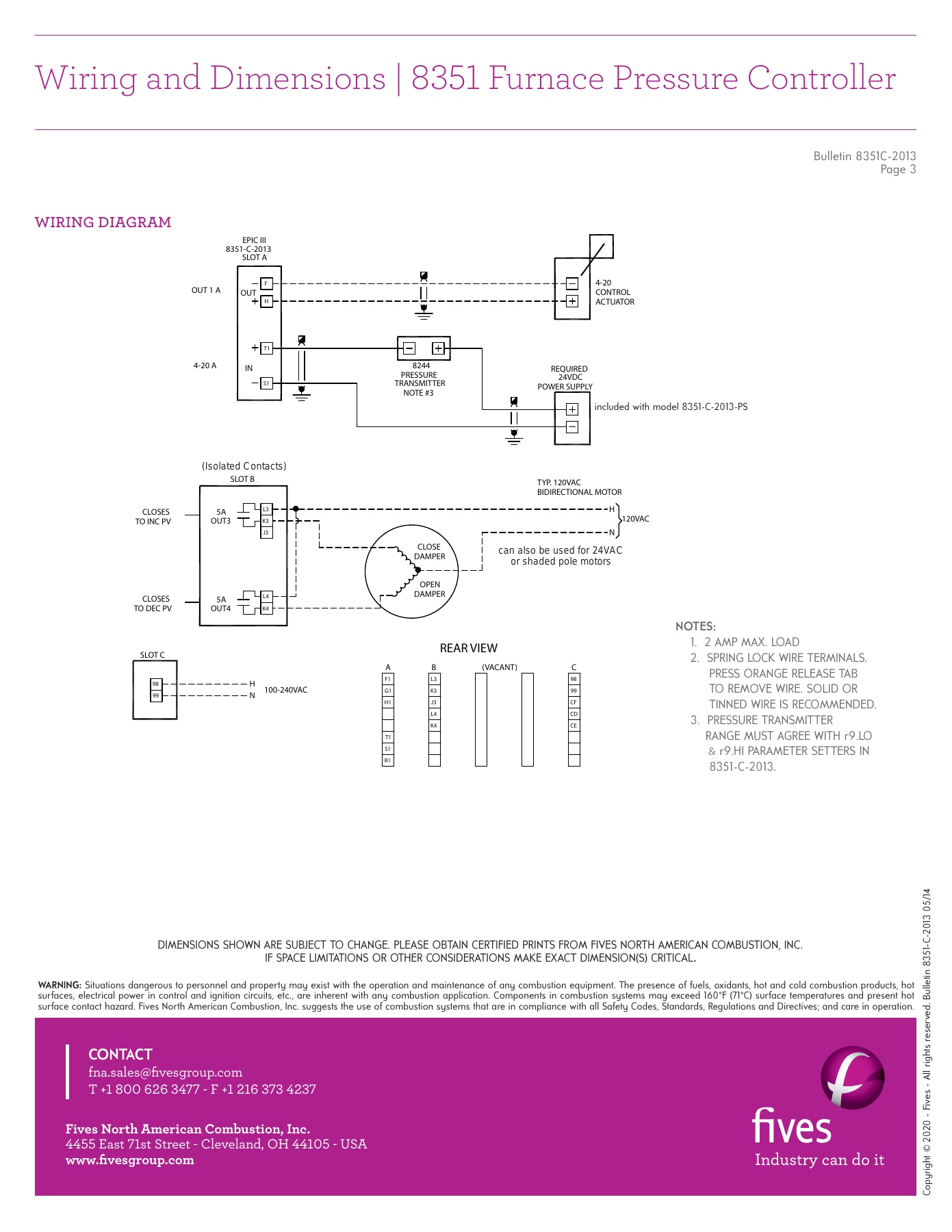

WIRING DIAGRAM

F

H

T1

S1

4-20

CONTROL

ACTUATOR

8244

PRESSURE

TRANSMITTER

NOTE #3

24VDC

POWER SUPPLY

REQUIRED

8351-C-2013

EPIC III

SLOT A

OUT 1 A

4-20 A

OUT

IN

L3

K3

J3

SLOT B

5A

H

120VAC

OUT3

L4

K4

5A

OUT4

N

TYP. 120VAC

BIDIRECTIONAL MOTOR

CLOSE

DAMPER

OPEN

DAMPER

CLOSES

TO INC PV

CLOSES

TO DEC PV

98

99

SLOT C

H
N

100-240VAC



F1

G1

H1

T1

S1

R1

A

REAR VIEW

L3

K3

J3

L4

K4

B

(VACANT)

98

99

CF

CD

CE

C

NOTES:

    1.  2 AMP MAX. LOAD
    2.  SPRING LOCK WIRE TERMINALS.



         PRESS ORANGE RELEASE TAB
         TO REMOVE WIRE. SOLID OR



         TINNED WIRE IS RECOMMENDED.
    3.  PRESSURE TRANSMITTER



        RANGE MUST AGREE WITH r9.LO





 &

 r9.HI PARAMETER SETTERS IN



         8351-C-2013.

included with model 8351-C-2013-PS

(Isolated Contacts)

can also be used for 24VAC

or shaded pole motors

Cop

yr

igh

t © 2020 - F

iv

es - All r

igh

ts r

eser

ved. Bulle

tin 8351-C-2013 05/14
