FULLY CUSTOMIZED:



The 8865 and 8864 Combustion Control Systems combine years
of engineering knowledge with todays best tools and technology.
These systems meet your needs and special requirements and
are fully customized to your application and specifi cations.
The 8865 and 8864 off er signifi cant options with an unlimited
number of burners and control loops. Optional equipment can
be added, such as annunciators, recorders, totalizers and data
loggers. The 8865 and 8864 are suitable for any combustion
control application; aluminum, forging, steel, glass, heat treat, and
ceramics.

QUALITY AND REPEATABILITY:



The 8865 and 8864 Combustion Control Systems are modularly
designed assuring quality, repeatability, and quick delivery.
Design time is reduced by use of pre-engineered CAD modules
and we stock all the standard parts needed for quick assembly
of these systems. Loop control, furnace pressure, oxygen trim,
and auxiliary loop control can be performed with standard loop
controllers. A complete documentation package of schematics,
cabinet, door, fi eld wiring diagrams, and bill or material comes
with each system

.



SYSTEM RELIABILITY AND FLEXIBILITY:



The 8865 and 8864 provides fl exible fl ame supervision
and process control. In the 8865 system, you benefi t from
independent burner fl ame operation, which allows your system
to operate even when one or more burners go out, increasing
system reliability and fl exibility. This system can be anything you
want it to be since there are no proprietary barriers. You are not
locked into using one component manufacturer. Start-up and
maintenance are easier and faster with these fully tested, fully
documented systems. UL listings are optional.

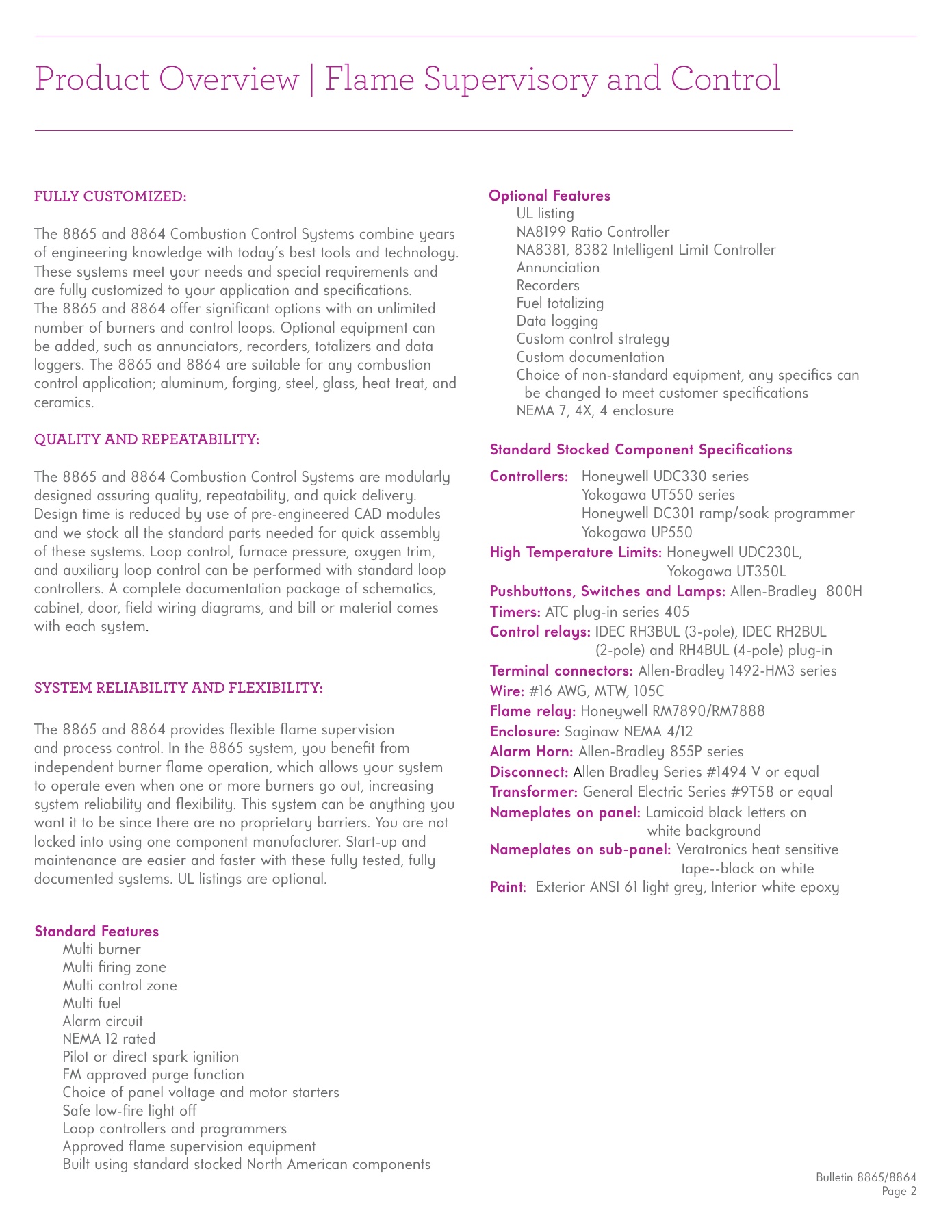

Product Overview | Flame Supervisory and Control

Standard Features



Multi burner

 Multi

fi ring zone



Multi control zone

 Multi

fuel

 Alarm

circuit



NEMA 12 rated



Pilot or direct spark ignition



FM approved purge function



Choice of panel voltage and motor starters

 Safe

low-fi re light off



Loop controllers and programmers

 Approved

fl ame supervision equipment



Built using standard stocked North American components

Standard Stocked Component Specifi cations
Controllers:



Honeywell UDC330 series



Yokogawa UT550 series



Honeywell DC301 ramp/soak programmer



Yokogawa

UP550

High Temperature Limits:



Honeywell UDC230L,





  Yokogawa UT350L

Pushbuttons, Switches and Lamps:



Allen-Bradley  800H

Timers:



ATC plug-in series 405

Control relays:

 I

DEC RH3BUL (3-pole), IDEC RH2BUL



   (2-pole) and RH4BUL (4-pole) plug-in

Terminal connectors:



Allen-Bradley 1492-HM3 series

Wire:



#16 AWG, MTW, 105C

Flame relay:



Honeywell RM7890/RM7888

Enclosure:



Saginaw NEMA 4/12

Alarm Horn:



Allen-Bradley 855P series

Disconnect:

 A

llen Bradley Series #1494 V or equal

Transformer:



General Electric Series #9T58 or equal

Nameplates on panel:



Lamicoid black letters on





              white background

Nameplates on sub-panel:



Veratronics heat sensitive





     tape--black on white

Paint



Exterior ANSI 61 light grey, Interior white epoxy

Optional Features



UL listing



NA8199 Ratio Controller



NA8381, 8382 Intelligent Limit Controller

 Annunciation
 Recorders
 Fuel

totalizing

 Data

logging



Custom control strategy

 Custom

documentation



Choice of non-standard equipment, any specifi cs can



 be changed to meet customer specifi cations



NEMA 7, 4X, 4 enclosure

Bulletin 8865/8864

Page 2
