Bulletin 8832
Page 7
8836-R
8836-R
4½ " long
Shown with C7027A UV Scanner
4½ " long
Shown with UV7A4 UV Scanner
8834-R
5" long
Shown with 8790-0 Observation Port
8839-R
4½ " long
Shown with 45UV5 UV Scanner
1
¾
"
Sealing
Window
4-8035-3
Adapter
Gaskets
Setscrew
1
¾
"
Sealing
Window
4-7933-2
Adapter
Gaskets
Setscrew
1
¾
"
Sealing
Window
R590-1250-S
Coupling
Gaskets
Setscrew
8831-R
4
½ " long
Shown with UV-2 UV Scanner
1
¾
"
Sealing
Window
4-8316-2
Adapter
Gaskets
Setscrew
DIMENSIONS SHOWN ARE SUBJECT TO CHANGE. PLEASE OBTAIN CERTIFIED PRINTS FROM FIVES NORTH AMERICAN COMBUSTION, INC.
IF SPACE LIMITATIONS OR OTHER CONSIDERATIONS MAKE EXACT DIMENSION(S) CRITICAL
.
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
Cop
yr
igh
t © 2021 - F
iv
es - All r
igh
ts
r
eser
ved | Bulle
tin 8832 06/21

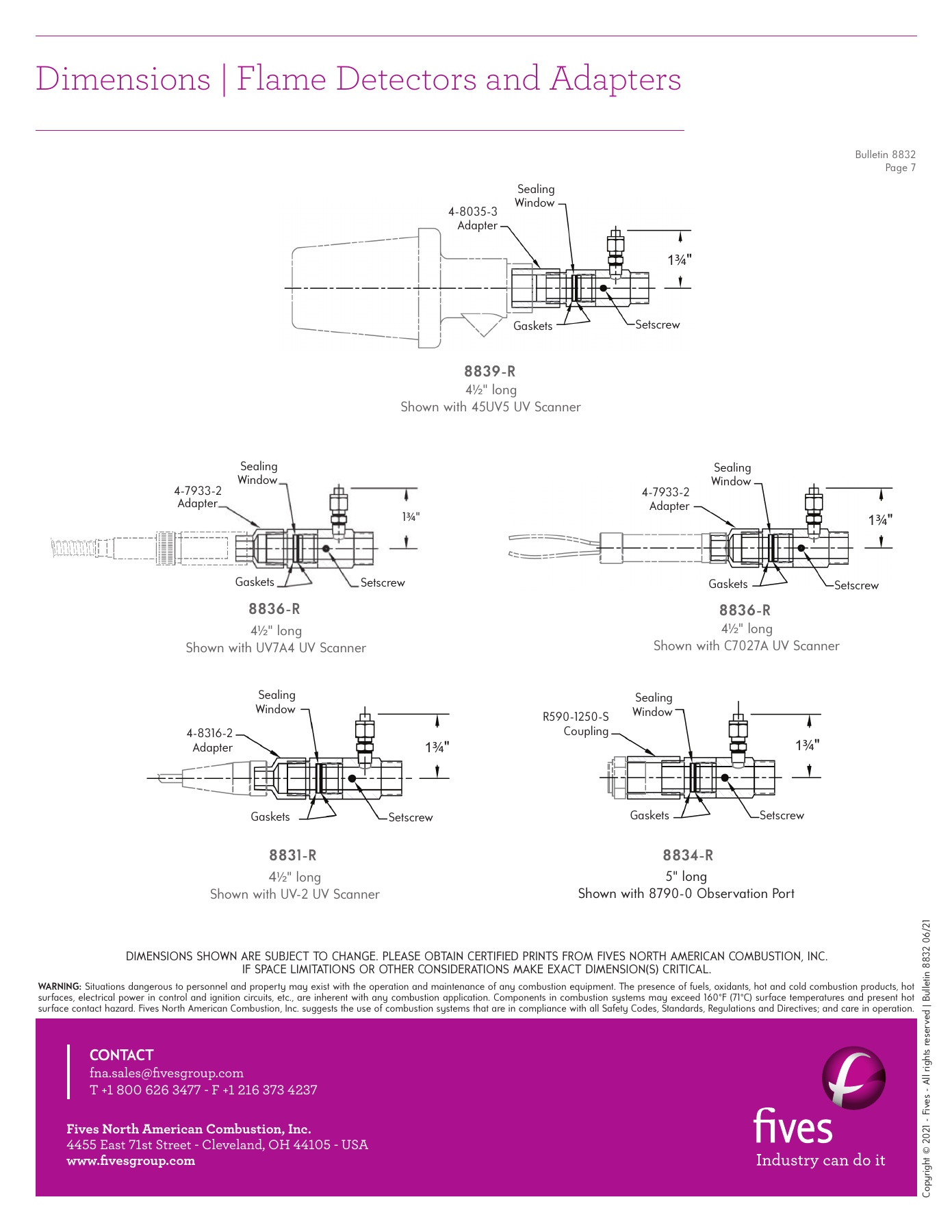

Dimensions | Flame Detectors and Adapters
Sealing
Window
4-7933-2
Adapter
1
¾
"
Gaskets
Setscrew
