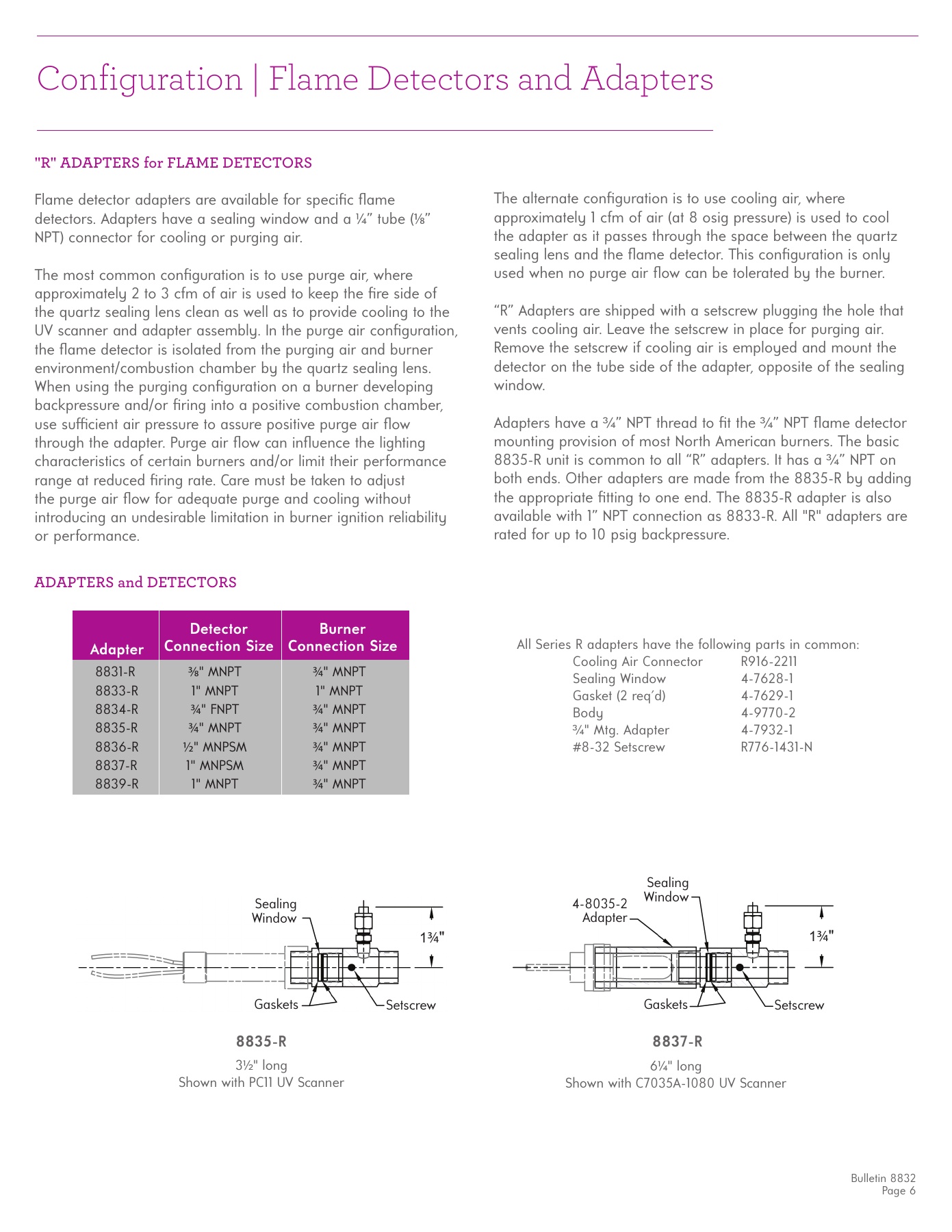

"R" ADAPTERS for FLAME DETECTORS

ADAPTERS and DETECTORS

All Series R adapters have the following parts in common:


Cooling Air Connector

R916-2211

 Sealing

Window

 4-7628-1



Gasket (2 reqd)



4-7629-1

 Body

  4-9770-2



¾

  " Mtg. Adapter

4-7932-1

 #8-32

Setscrew

 R776-1431-N

Flame detector adapters are available for specifi c fl ame
detectors. Adapters have a sealing window and a ¼” tube (

1⁄8

”

NPT) connector for cooling or purging air.

The most common confi guration is to use purge air, where
approximately 2 to 3 cfm of air is used to keep the fi re side of
the quartz sealing lens clean as well as to provide cooling to the
UV scanner and adapter assembly. In the purge air confi guration,
the fl ame detector is isolated from the purging air and burner
environment/combustion chamber by the quartz sealing lens.
When using the purging confi guration on a burner developing
backpressure and/or fi ring into a positive combustion chamber,
use suffi

  cient air pressure to assure positive purge air fl ow

through the adapter. Purge air fl ow can infl uence the lighting
characteristics of certain burners and/or limit their performance
range at reduced fi ring rate. Care must be taken to adjust
the purge air fl ow for adequate purge and cooling without
introducing an undesirable limitation in burner ignition reliability
or performance.





Bulletin 8832

Page 6

8835-R

3½  " long

Shown with PC11 UV Scanner



8831-R

3⁄8

" MNPT

¾

" MNPT



8833-R

1" MNPT

1" MNPT

 8834-R

¾

" FNPT

¾

" MNPT

 8835-R

¾

" MNPT

¾

" MNPT

 8836-R

½

" MNPSM

¾

" MNPT

 8837-R

1"

MNPSM

¾

" MNPT

 8839-R

1"

MNPT

¾

" MNPT

Adapter

Detector

Connection Size

Burner

Connection Size

The alternate confi guration is to use cooling air, where
approximately 1 cfm of air (at 8 osig pressure) is used to cool
the adapter as it passes through the space between the quartz
sealing lens and the fl ame detector. This confi guration is only
used when no purge air fl ow can be tolerated by the burner.

“R” Adapters are shipped with a setscrew plugging the hole that
vents cooling air. Leave the setscrew in place for purging air.
Remove the setscrew if cooling air is employed and mount the
detector on the tube side of the adapter, opposite of the sealing
window.

Adapters have a ¾” NPT thread to fi t the ¾” NPT fl ame detector
mounting provision of most North American burners. The basic
8835-R unit is common to all “R” adapters. It has a ¾” NPT on
both ends. Other adapters are made from the 8835-R by adding
the appropriate fi tting to one end. The 8835-R adapter is also
available with 1” NPT connection as 8833-R. All "R" adapters are
rated for up to 10 psig backpressure.

1

¾

"

Sealing

Window

Gaskets

Setscrew

8837-R

6¼  " long

Shown with C7035A-1080 UV Scanner

1

¾

"

Sealing

Window

4-8035-2

Adapter

Gaskets

Setscrew

Configuration | Flame Detectors and Adapters
