Pipe tees and plugs shown in dashed lines are not supplied by North American. They represent a
suggested piping arrangement to permit easy access to oil and steam orifi ces for cleaning.
To select proper nozzle or orifi ce from this table, start with atomizer designation in left hand column (for example, 5642-1) and read across to number in table that
corresponds to last part of atomizer model number (e.g., 140). Add suffi
x from head of column in which number appears (-4) to appropriate nozzle or orifi ce part number
(e.g. OA3-0450-4).
Contact product manager for complete atomizer assembly, part numbers and pricing. Dimension " L", as shown above, must be specifi ed for pricing.
Pipe
Bushing
Pipe Plug
Oil
Orifi ce
Body
Steam
Orifi ce
Emulsion
Tube
Nozzle
Steam
Oil
Suffi
x
Atomizer
Nozzle
Orifi ce
Orifi ce
-1
-2
-3
-4
-5
-6
-7
-8
-9
-10
5642-02
OA3-0582-
OA3-1644-
OA3-1643- 5 10 15 20 25
— — — — —
5642-01
OA3-0584- OA3-1646- OA3-1645-
30 35 40 45 50 55 60 — — —
5642-0
OA3-0586- OA3-1648- OA3-1647-
65 70 75 80 85 90 95 100 — —
5642-1
OA3-0450- OA3-1650- OA3-1649- 110 120 130 140 150 160 170 180 190 200
Atomizer
5642-02
5642-01
5642-0
5642-1
Body
OC3-0447-5 OC3-0447-6 OC3-0446-5 OC3-0446-6
Emulsion Tube
OA3-0583 OA3-0585 OA3-0587 OA3-0451
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts
r
eser
ved | Bulle
tin 5642 03/09
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.

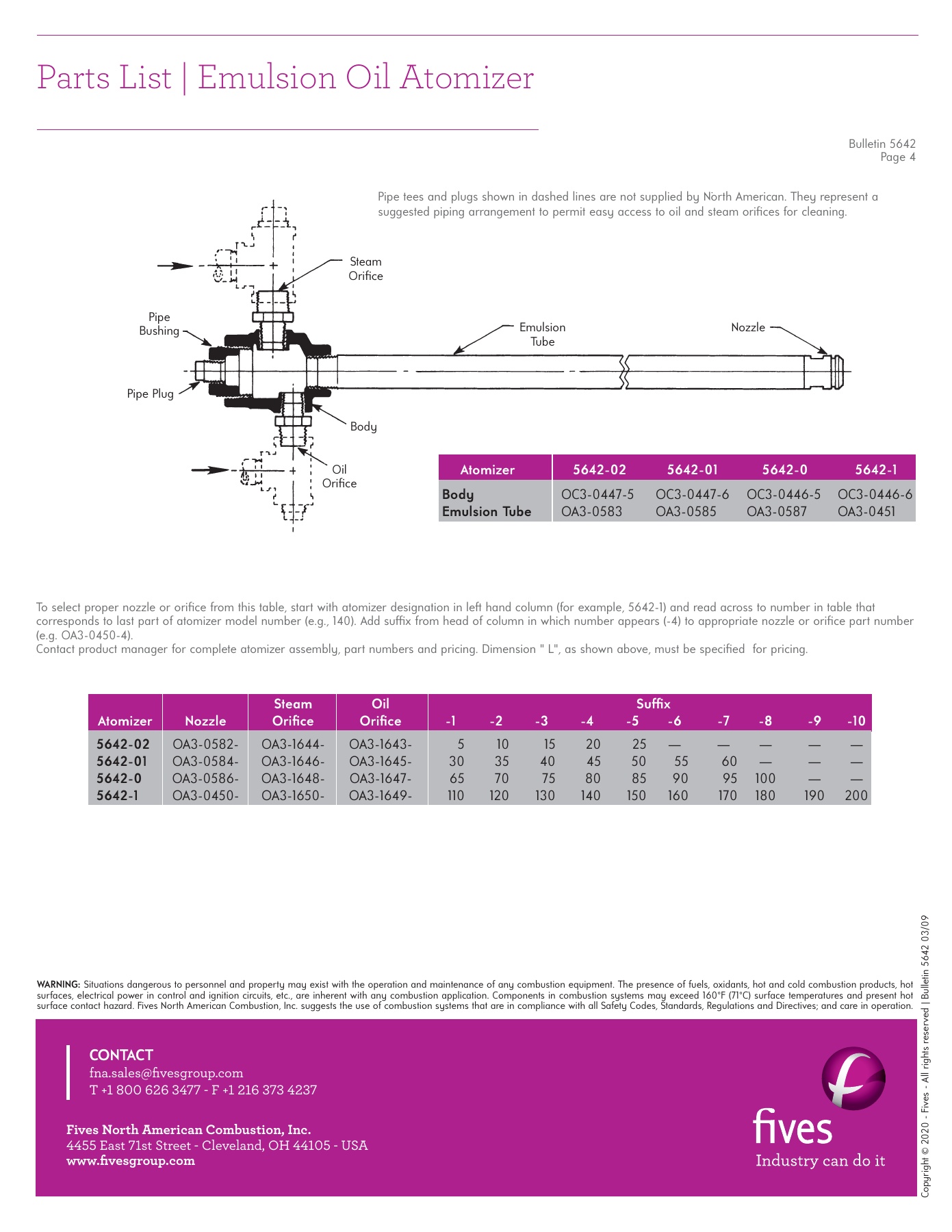

Parts List | Emulsion Oil Atomizer
Fives North American Combustion, Inc.
4455 East 71st Street - Cleveland, OH 44105 - USA
www.fi vesgroup.com
CONTACT
fna.sales@fi vesgroup.com
T +1 800 626 3477 - F +1 216 373 4237
Bulletin 5642
Page 4
