DIMENSIONS SHOWN ARE SUBJECT TO CHANGE. PLEASE OBTAIN CERTIFIED PRINTS FROM FIVES NORTH AMERICAN COMBUSTION, INC.

IF SPACE LIMITATIONS OR OTHER CONSIDERATIONS MAKE EXACT DIMENSION(S) CRITICAL.





 Sensitrol



Burner

 Wt,

oil valve

Recommended

  designation

A

B   E



F



G

H

J

K

L   M

lb

1813 or 1813M

Pilot Tip



6833-3-25



1

½

 1  14

½

 11

15⁄16

 10

¼

   8

1⁄16



5

1⁄8



5

7⁄16

 2  2 210

-02-A

4021-12



6833-4-25

 2  1

¼

 14

½

 11

15⁄16

 10

¼

   8

1⁄16



5

1⁄8



5

7⁄16

 2  2 205

-02-A

4021-12



6833-5-25



2

½



1

½

 16

7⁄8

 14

5⁄16

 12

¾

 10  6  5

15⁄16



2

5⁄8

 2  205

-02-A

4021-12



6833-6-25

 3  2  16

7⁄8

 14

5⁄16

 12

¾

 10  6  5

15⁄16



2

5⁄8

 2  205

-02-A

4021-12

†  Alternate grooved square, or round tiles may be specifi ed per Dimensions 4832/4834.

 These dimensions assume a

 3⁄8

" close nipple between burner and Sensitrol Oil Valve (see note).

 Pipe nipple not furnished by North American.

Basic information--all sizes:

1.  All results tested in cold, tight furnaces with burners mounted in

side wall only.

2.  All stoichiometric fl ames are

straight

 from 1 osi main air pressure and lower, semi-straight between 1 and 2 osi (fl ame length reaches 8" when

straight).

3.  Burners applicable where extensive periods of oil fi ring are required, or excess gas in a cold, tight furnace is required.
4.  Pilots must be set to lowest possible rate.
5.  Stoichiometric operation on natural gas requires gas pressure be 50% of air pressure at the burner.

3⁄8

 NPT

Oil inlet

3⁄8

 NPT

Atomizing

Air inlet

E

F

G

H

J

A

–NPT

Main air

connection

13

½

Square†

K

L

M

B

–NPT
Gas

inlet

NOTE:

 Optional (recommended) Sensitrol oil valve is not not included as part of the burner assembly, and must be ordered separately.

Recommended

  Sensitrol™

  Oil Valve  

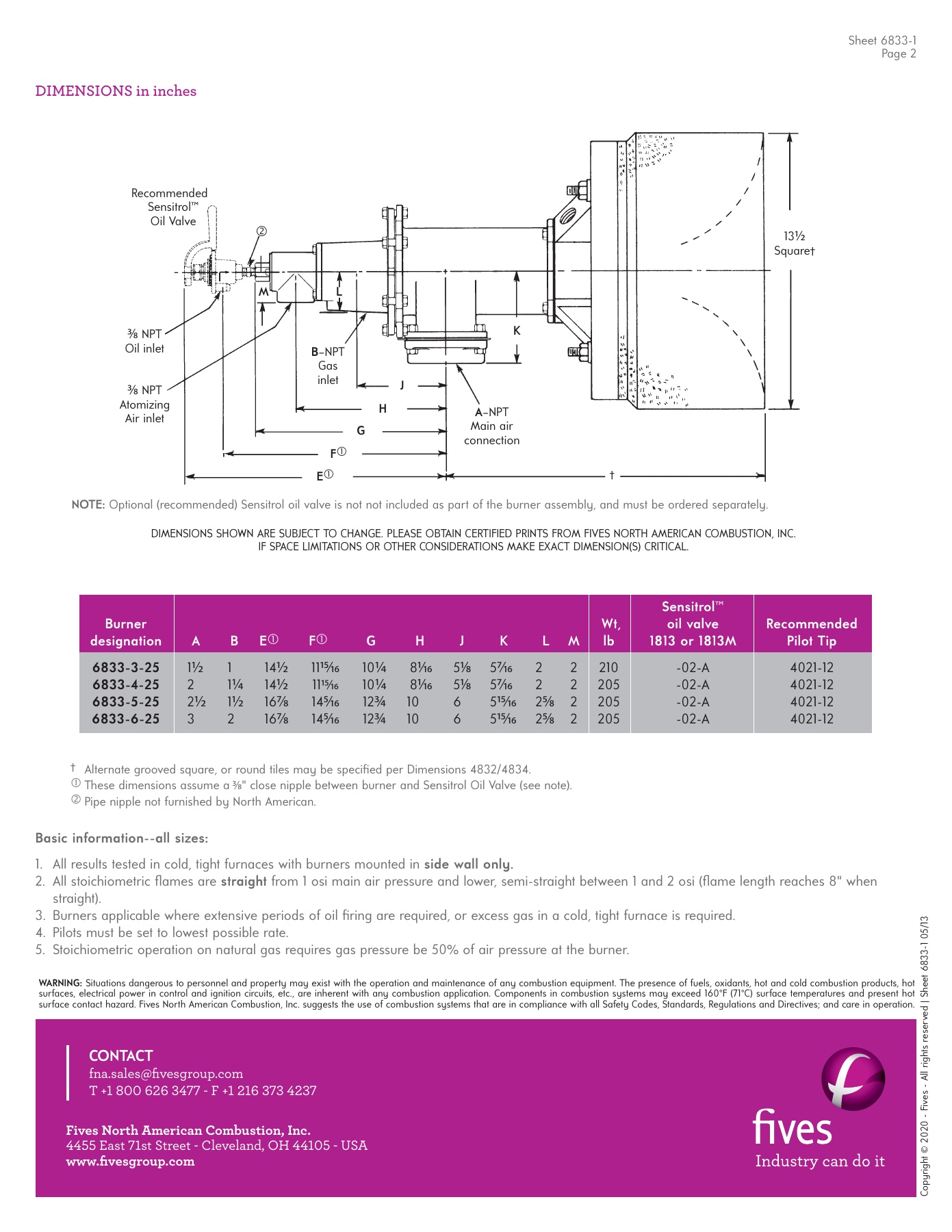

Sheet 6833-1

Page 2

DIMENSIONS in inches

Cop

yr

igh

t © 2020 - F

iv

es - All r

igh

ts r

eser

ved | Shee

t 6833-1 05/13

WARNING:

Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot

surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.

Fives North American Combustion, Inc.

4455 East 71st Street - Cleveland, OH 44105 - USA

www.fi vesgroup.com

CONTACT

fna.sales@fi vesgroup.com
T +1 800 626 3477 - F +1 216 373 4237

Catalog Combustion 2021 - Page 0824
