Burner

designation

 Part

Name

6825-2

6825-3

6825-4

6825-5



6825-6

6825-7-A

6825-7-B

6825-8-A

Air Disc Assembly

3-6283-9

3-6283-10

3-6283-11

3-6283-12

3-6283-13

3-6283-14

3-6283-15

3-6283-8

Air Tubes (8 reqd.) Inconel

3-3643-1† 3-3643-2† 3-3640-2  3-3639-2  3-3554-2  3-3273-3  3-3273-4  4-3684-2

Atomizing Air Connection

3-2474-1

3-2474-1

3-2474-1

3-2474-2

3-2474-2

3-6081-1

3-6081-1

3-6081-1

Atomizing

Air

Conn.

Gasket

3-2607-1 3-2607-1 3-2607-1 3-2607-1 3-2607-1 3-3272-1  3-3272-1  3-3272-1

Atomizing

Air

Tube

Assembly  3-7066-1 3-7066-1 3-7066-1 3-7066-1 3-7066-1 3-6839-2 3-6839-1  3-6839-1

Body and Liner Assembly

3-6511-2

3-6511-2

3-6511-2

3-6511-2

3-6511-2

3-6480-2

3-6480-2

3-6480-2

Burner

Tile

3-6673-1 3-6673-1 3-6673-1 3-6673-2 3-6673-2 3-6673-3 3-6673-3 3-6673-3

Gas

Connection



3-2465-4 3-2465-4 3-2465-5 3-2465-6 3-2465-6 3-6510-1  3-6510-1  3-6510-1

Gas Connection Gasket

3-2473-1

3-2473-1

3-2473-1

3-2473-1

3-2473-1

3-3272-1

3-3272-1

3-3272-1

GasTube



3-7068-1 3-7068-1 3-7068-1 3-7068-1 3-7068-1 4-7329-1  4-7329-2  4-7329-2

Groove Pin (2 reqd.)







  R570-2300-S (All Sizes)

Mounting

Gasket



4-7571-1 4-7571-1 4-7571-1 4-7571-1 4-7571-1 4-7572-1 4-7572-1 4-7572-1

Mounting

Plate



3-4767-3 3-4767-3 3-4767-3 3-4767-3 3-4767-3 3-4638-3 3-4638-3  3-4638-3

Observation

Port



8790-0 8790-0 8790-0 8790-0 8790-0 8790-0 8790-0  8790-0

Oil

Connection

Assembly

3-2391-1 3-2391-1 3-2391-1 3-2391-1 3-2391-1 3-2519-2 3-2519-2  3-2519-2

Oil

Nozzle

3-2541-1 3-2541-1 3-2541-1 3-2541-1 3-2541-1 3-6077-1 3-6077-1 3-6077-1

Oil

Tube



3-7069-1 3-7069-1 3-7069-1 3-7069-1 3-7069-1 3-7071-1  3-7071-1  3-7071-1

Pipe Plug (2 reqd.)







R590-7850 (All Sizes)

Sensitrol

™

 Oil Valve



1813-03  1813-03  1813-03  1813-02-A 1813-02-A 1813-02-B 1813-02-B  1813-02-C

Stud

(4

reqd.)

3-2584-1 3-2584-1 3-2584-1 3-2584-1 3-2584-1 3-3325-1 3-3325-1  3-3325-1

Tile Mounting Hook (4 reqd.)

3-1115-2

3-1115-2

3-1115-2

3-1115-2

3-1115-2

3-1115-2

3-1115-2

3-1115-2

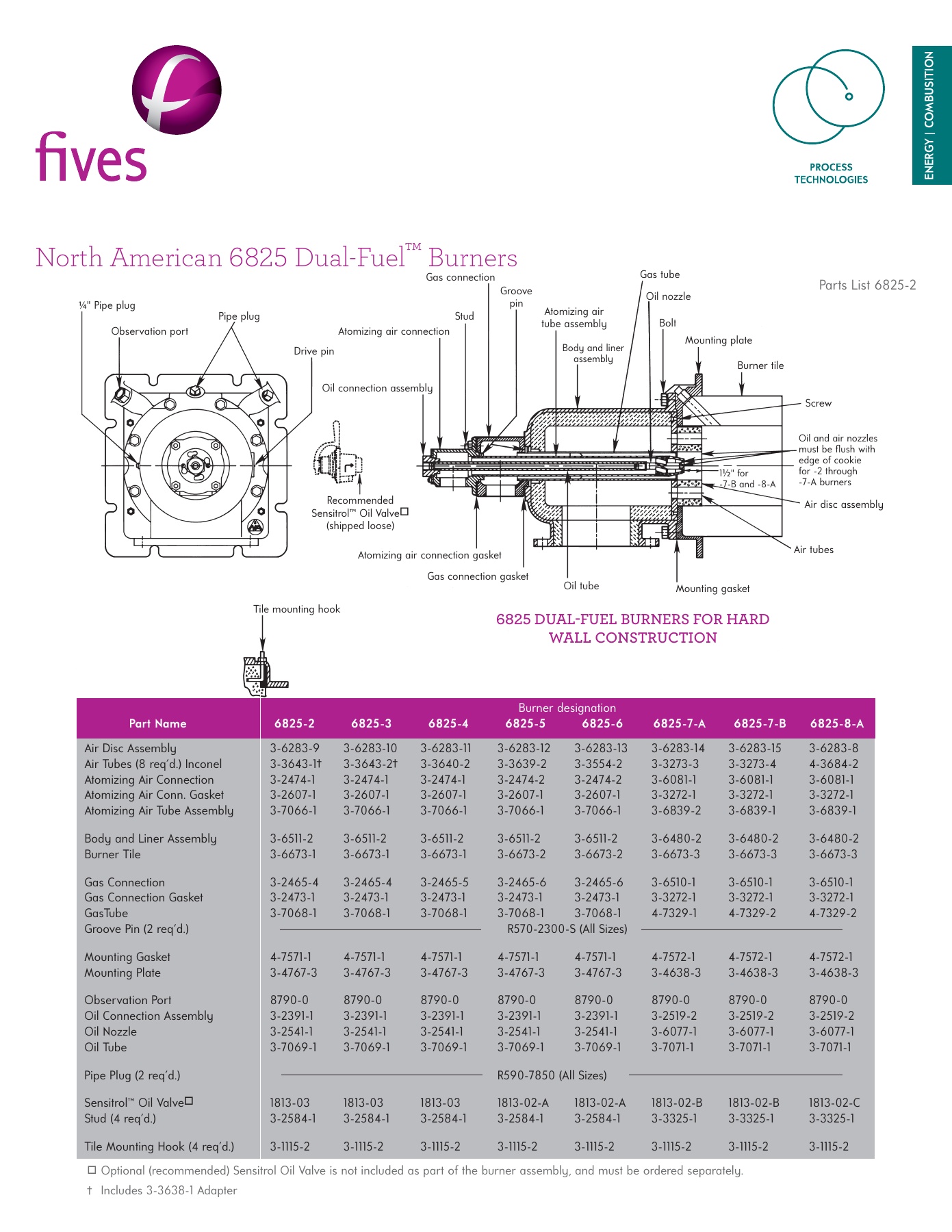

North American 6825 Dual-Fuel™ Burners

Parts List 6825-2

6825 DUAL-FUEL BURNERS FOR HARD

WALL CONSTRUCTION



Optional (recommended) Sensitrol Oil Valve is not included as part of the burner assembly, and must be ordered separately.

†  Includes 3-3638-1 Adapter

¼

" Pipe plug

Observation port

Pipe plug

Drive pin

Oil connection assembly

Atomizing air connection

Stud

Gas connection

Groove

pin

Atomizing air

tube assembly

Body and liner

assembly

Gas tube

Oil nozzle

Bolt

Mounting plate

Burner tile

Screw

Oil and air nozzles
must be fl ush with
edge of cookie
for -2 through
-7-A burners

1

½

" for

-7-B and -8-A

Air disc assembly

Air tubes

Mounting gasket

Oil tube

Gas connection gasket

Atomizing air connection gasket

Recommended

Sensitrol™ Oil Valve

(shipped loose)

Tile mounting hook
