Arrangement Designators
are specifi ed relative to the main
air connection at 12 oclock and should be listed for
pilot,
gas, fl ame supervison and atomizing air in that order.
‡
Good practice dictates that neither the pilot nor the fl ame detector be below the centerline of a horizontally-mounted burner.
ORDER MUST SPECIFY
: (1) Burner designation (such as 6821-16-54); (2) Arrangement designation for pilot, gas connection, fl ame safety and
atomizing air connection positions in that order such as 6821-16-54, arrangement 3a1E (for the arrangement shown above).
outside
furnace view
atomizing air connection position designators are
pilot position designators ‡ are
fl ame supervision designators ‡ are
(must be 90, 135 or 180° from pilot)
gas connection position designators are
main
air conn.
Furnace opening should be ½ " larger than dimension EE for
10A thru 14 and ¾" larger than dimension EE for 16 thru 22.
Whenever the tile length is greater than DD × 1.2, the tile
beyond DD should fl are out at a 30° angle (60° included
angle).
Flat face companion fl ange available upon request.
Burner
Designation A B
C D
E
F G H
°
J K L M N
°
P Q R S T U V
6821-10-A 10
2.5
2
3⁄8
0.75 0.75 4 45 5.5 7 1 12 15 14.25 16 16 20.5 22.25 11.75 11
6821-10-B 10
2.5
2
3⁄8
0.75 0.75 4 45 5.5 7 1 12 15 14.25 16 16 22.5 24.25 13.75 12.5
6821-12
12 3 2.5
3⁄8
0.75 0.75 4 45 6 7.5 1 12 15 17
19 16 24.5 26.25 14.75 13.5
6821-14
14 4 3
3⁄8
0.75 0.75 8 22.5 7.5 9 1.13 12 15 18.75 21 20 26.5 28.25 14.81 14.5
6821-16
16 4 3
3⁄8
0.75 0.75 8 22.5 7.5 9 1.13 16 11.25 21.25 23.5 20 28.5 30.25 14.81 15.5
6821-18
18 4 4
½
0.88 0.75 8 22.5 7.5 9 1.25 16 11.25 22.75 25 20 30.5 32.25 14.81 16.5
6821-20
20 6 4
½
0.88 0.88 8 22.5 9.5 11 1.25 20 9 25
27.5 24 32.5 34.25 15.5 17.5
6821-22
22 6 4
½
0.88 0.88 8 22.5 9.5 11 1.25 20 9 26
29.5 24 34.5 36.25 15.5 18.5
Burner
Estimated Recommended
Designation W
X Y
Z AA BB CC DD
EE
FF
GG
HH
weight, lb
pilot assy.
6821-10-A 1.75 12.25
13.06
9.5 40.19
¾
1.5
10 16 72 9 6.25
351
4014-2-T
6821-10-B 1.75 15 13.94
9.5 43.81
¾
1.5
11 18 79 9 7
451
4014-2-T
6821-12 2.38 17.5
15.44
10.5
49.19
¾
2 12.5
20 88 11 8.5
588
4014-3-AT
6821-14 5.19 18.5
16.88
10.5
51.88
¾
2 14.75
22 95 13.63
10
727
4014-3-AT
6821-16 5.19 19
17.25
10.5
52.75
2 2 17 24
99 15.63
11.25 807
4014-3-AT
6821-18 7.88 19.5
18.88
15.5
60.56
2 2 19.25
26
112 17.63
12.75 950
4014-3-BT
6821-20 7.88 20.5
21.25
15.5 61.44
2 2 21.5
28
116 19.63
14.25 1045
4014-3-BT
6821-22 7.88 21.5
23.13
15.5
66.81
2 2 24 30
120 21.63
15.75 1183
4014-3-BT
DIMENSIONS IN INCHES AND DEGREES
DIMENSIONS IN INCHES
Cop
yr
igh
t © 2020- F
iv
es - All r
igh
ts r
eser
ved | Bulle
tin 6821 08/17
Bulletin 6821
Page 4
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.

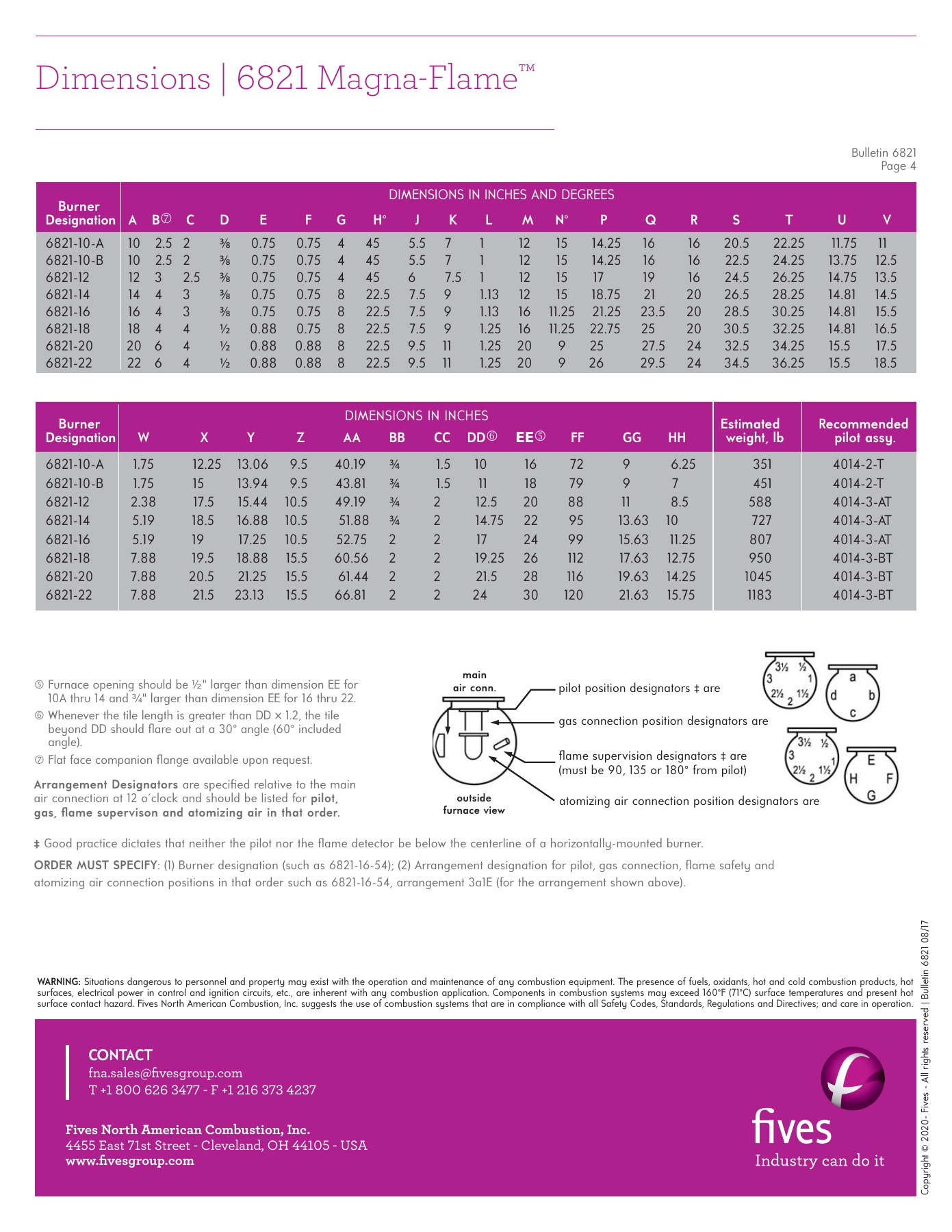

Dimensions | 6821 Magna-Flame
™
