Because of postive pressure in the burners, it is diffi

  cult to light with a torch unless the air is turned very low and a strong pressure torch is used.



Add 10% to fl ame dimensions shown for operation with #6 oil.



Subtract 10% from fl ame dimensions shown for reduced port tile "R" version.



Fuel gas can be increased to match the cold air capacity with no change to burner components however, fuel oil fl ow is limited as shown in the table above.
Consult North American for special atomizer options.

 6821-10-A54

6821-10-A54R

40 000

67 000

5654-4

35

6 000

2

 6821-10-B54

6821-10-B54R

53 000

89 000

5654-4

35

6 000

2

 6821-12-54

6821-12-54R

78 000

130 000

5654-5

60

10 700

3

 6821-14-54

6821-14-54R

106 000

177 500

5654-6

100

19 700

10

4



 6821-16-54

6821-16-54R

134 000

225 000

5654-6

100

19 700

13

4

 6821-18-54

6821-18-54R

172 000

288 000

5654-7

200

29 000

16

5

 6821-20-54

6821-20-54R

 215 000

360 000

5654-7

200

29 000

17

5

 6821-22-54

6821-22-54R

260 000

435 500

5654-7

200

29 000

20

5

COMBUSTION AIR CAPACITY, scfh (for Btu/hr capacity, multiply scfh by 100)



Burner







Max. Oil

Atomizing Air,

Flame Dimensions





Designation

1000 F Air

60 F Air



 Atomizer  Capacity



  scfh not burning

at 1000 F air





Standard Tile  Reduced Port Tile  at 10"wc



P at

10"wc



P  Designation

(gph)

with 28 osi air

Length  Diameter

Bulletin 6821

Page 3

DIMENSIONS in inches

T

 - Diameter

½

1" NPT for
fl ame detector
45º to mtg fl ange

C

 - NPT atomizer air inlet

D

 - NPT oil inlet



¼ NPT atomizing

air taps

BB

 - Obsrv. port



¼ NPT

fuel tap

Z

Y

X

2.50

 ¼ NPT

air tap

E

 - Hole on a

- Bolt circle

R

 - # of holes (straddle centerline)

A

 - Main air connection (ANSI)

.50

mounting

fl ange

CC

 - NPT pilot connection

FF

 - Clearance reqd. to remove atomizer

AA

1" NPT obsrv. port
connections

DD

 - Minimum

tile length

DD

 dia

EE

 dia

3° taper, standard

tile only



B

 - 150 ANSI raised fl ange gas inlet

K

 - Diameter

F

 - Hole on a

J

 - Bolt circle

G

 - # of holes

H °

- Hole on a

- Bolt circle

- # of

holes



Q

 - Diameter

 GG

 - Diameter lining

HH

R tile only exit dia

U

W

V

DIMENSIONS SHOWN ARE SUBJECT TO CHANGE. PLEASE OBTAIN CERTIFIED PRINTS FROM FIVES NORTH AMERICAN COMBUSTION, INC.

IF SPACE LIMITATIONS OR OTHER CONSIDERATIONS MAKE EXACT DIMENSION(S) CRITICAL

.

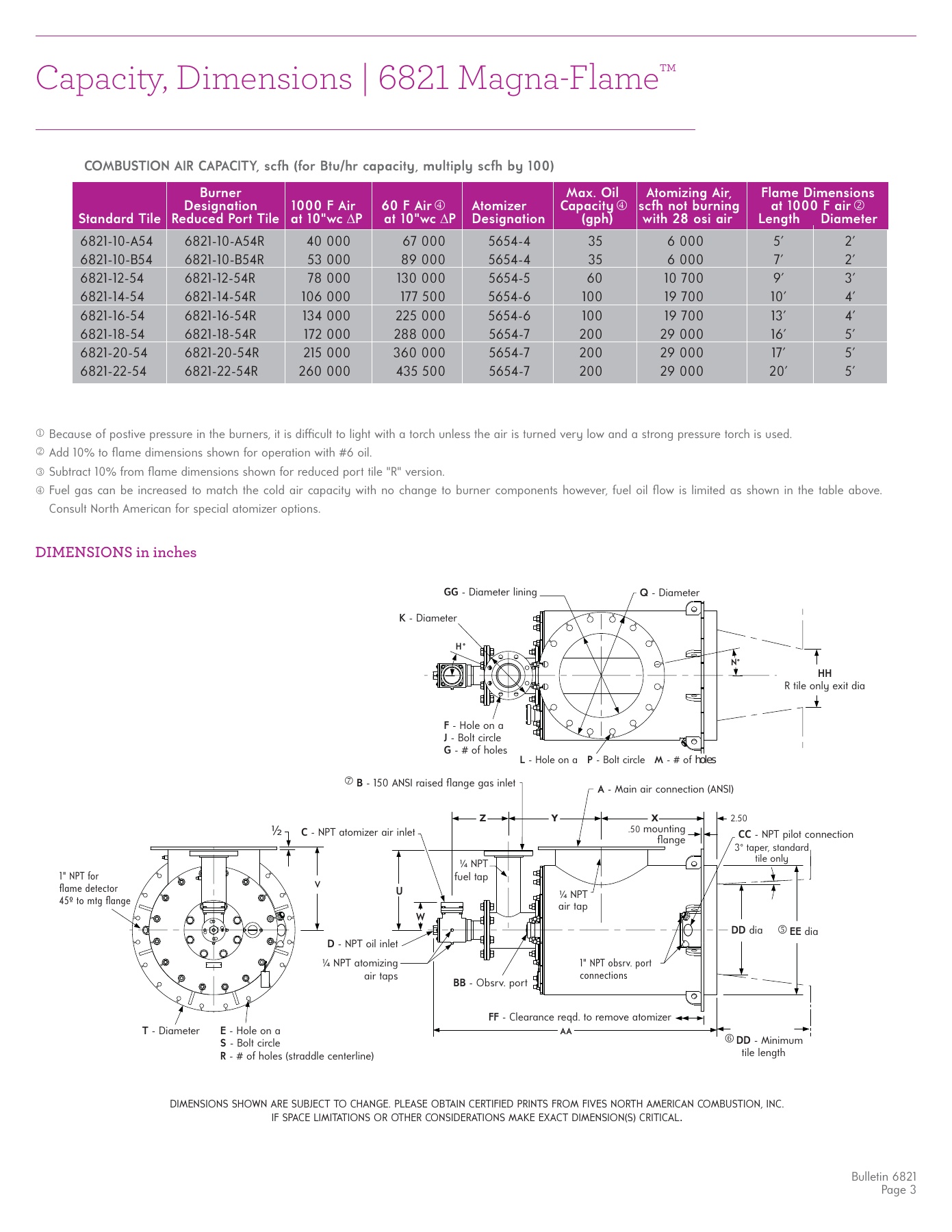

Capacity, Dimensions | 6821 Magna-Flame

Catalog Combustion 2021 - Page 0814
