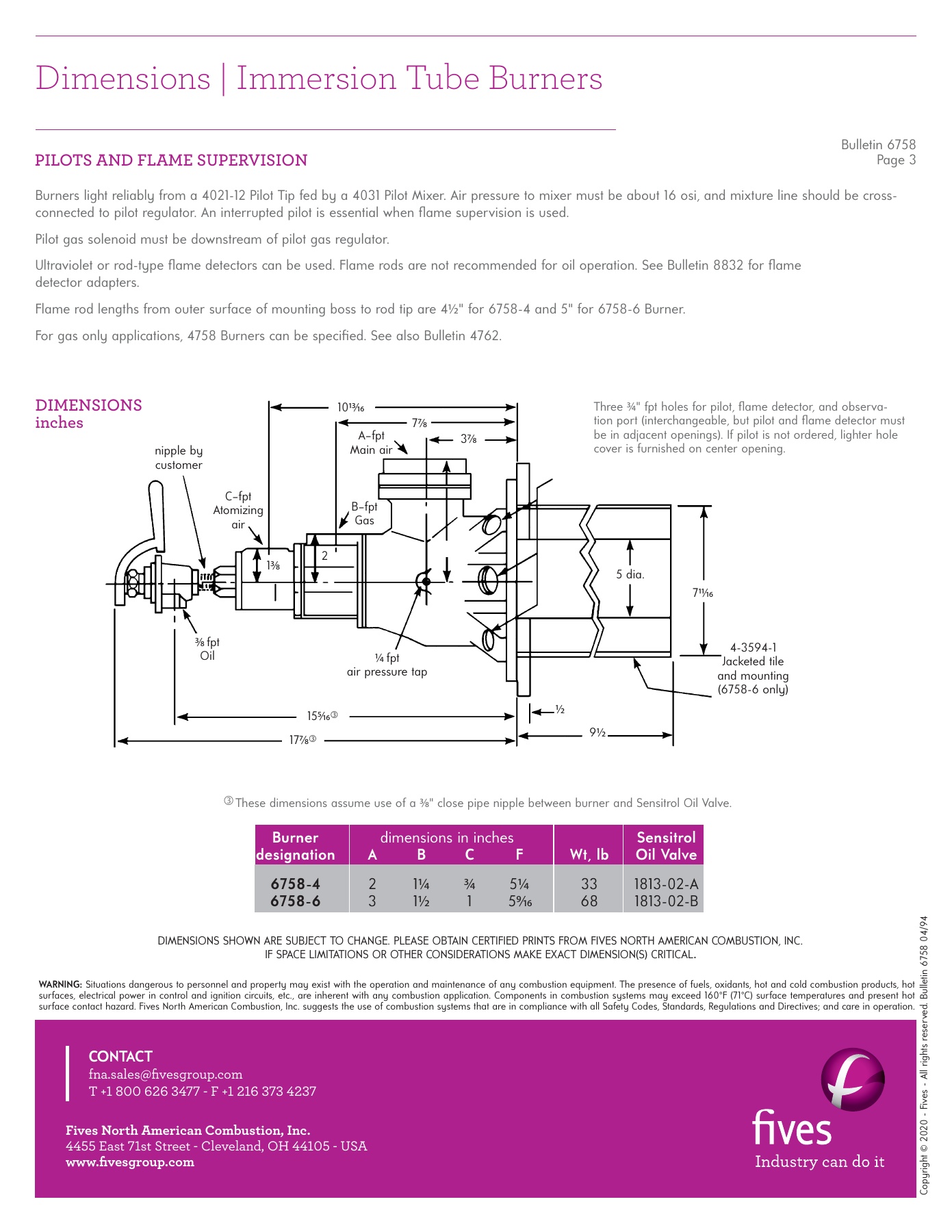

PILOTS AND FLAME SUPERVISION
Burners light reliably from a 4021-12 Pilot Tip fed by a 4031 Pilot Mixer. Air pressure to mixer must be about 16 osi, and mixture line should be cross-
connected to pilot regulator. An interrupted pilot is essential when fl ame supervision is used.
Pilot gas solenoid must be downstream of pilot gas regulator.
Ultraviolet or rod-type fl ame detectors can be used. Flame rods are not recommended for oil operation. See Bulletin 8832 for fl ame
detector adapters.
Flame rod lengths from outer surface of mounting boss to rod tip are 4
½
" for 6758-4 and 5" for 6758-6 Burner.
For gas only applications, 4758 Burners can be specifi ed. See also Bulletin 4762.
DIMENSIONS
inches
Burner
dimensions in inches
Sensitrol
designation
A
B
C
F
Wt, lb
Oil Valve
6758-4
2
1
¼
¾
5
¼
33
1813-02-A
6758-6
3
1
½
1 5
9⁄16
68
1813-02-B
Three
¾
" fpt holes for pilot, fl ame detector, and observa-
tion port (interchangeable, but pilot and fl ame detector must
be in adjacent openings). If pilot is not ordered, lighter hole
cover is furnished on center opening.
5 dia.
7
11⁄16
4-3594-1
Jacketed tile
and mounting
(6758-6 only)
9
½
½
15
5⁄16
17
7⁄8
¼
fpt
air pressure tap
3⁄8
fpt
Oil
1
3⁄8
2
B–fpt
Gas
C–fpt
Atomizing
air
nipple by
customer
A–fpt
Main air
10
13⁄16
7
7⁄8
3
7⁄8
These dimensions assume use of a
3⁄8
" close pipe nipple between burner and Sensitrol Oil Valve.
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts r
eser
ved. Bulle
tin 6758 04/94
