Burner Size

Part Name

-8-B

-9

*

 -10-A

-10-B -12

Mounting

&

 Tile Assembly

3-6816-1

3-6453-1

3-6836-1

3-6784-1

3-6431-1

Body Assembly

♦

 4-54801-1

4-54886-1

4-54673-1

4-54673-1

4-54622-1

Gas Tube

&

 Air Sleeve Assembly†

3-6817-1

3-12127-1

3-6835-1

3-6846-1

3-12508-1

Gas Connection Assembly

♦



4-54713-1

4-54713-1

4-54623-3

4-54623-3

4-54623-3

Mounting Gasket

3-6462-1

3-6462-1

3-6443-1

3-6443-1

3-6443-1

Body Gasket

♦



4-54657-1

4-54657-1

4-54656-1

4-54656-1

4-54656-1

Atomizing Air/End Cover Gasket     3-6464-1

3-6464-1

3-6441-2

3-6441-2

3-6441-2

Atomizer Assembly

3-15922-1

3-15923-1

3-13574-1

3-13574-1

3-15924-1

Atomizing Air Nozzle•

3-6821-1

3-6537-2

3-1148-1

3-1148-1

3-1148-1

Oil Nozzle•

3-6614-1

3-6614-3

3-6159-1

3-6159-1

3-12884-1

Oil Tube•

3-6461-2

3-6461-4

3-6437-1

3-6437-1

3-6437-1

Atomizing Air Tube•

3-6457-2

3-6457-3

3-6436-2

3-6436-2

3-6436-2

Oil Connection•

3-0742-1

3-0742-1

3-5765-1

3-5765-1

3-5765-1

Oil Connection Gasket•

3-5747-1

3-5747-1

3-5747-1

3-5747-1

3-5747-1

Atomizing Air Connection•

OB3-0736-1

OB3-0736-1

OB3-0736-1

OB3-0736-1

OB3-0736-1

Options

Blower Sleeve

2947-8

2947-9

2947-10

2947-10

2947-12

Clamp (qty)

R120-2600(2)

R120-2600(2)

R120-2600(2)

R120-2600(2)

R120-2425(4)

Main Air Flange

3-8569-1

3-8569-2

3-8569-5

3-8569-5

3-8569-4

Main Air Flange Gasket

OA3-2302-24F4

OA3-2302-25F4

OA3-2302-26F4  OA3-2302-26F4

OA3-2302-27F4

Furnace Mtg. Gasket**

4-28284-1

4-28284-1

4-28285-1

4-28285-1

4-28285-1

 4-28284-2

4-28284-2

4-28285-2

4-28285-2

4-28285-2

Oil Connection

Gasket

•

Oil Connection

•

Atomizing Air

Connection

•

Gas Tube

End Cover

(Gas Burner Only)

Gas Connection

Assembly

♦

Atomizing Air/

End Cover Gasket

Body Gasket

Main Air

Flange Gasket

(optional)

Main Air Flange

(optional)

Gas Tube

†

Mounting Gasket

Gas Stabilizer†

Oil Nozzle

•

Air Tubes†

Atomizing Air

Nozzle

•

Mounting and Tile Assembly

Air

Sleeve

 Tube Disc.†

Atomizing Air

Tube

•

Body Assembly

♦

Oil Tube

•

†  Gas Tube, Air Sleeve, Tube Disc, Gas Stabilizer, and Air Tubes are an Integral Assembly and must be purchased as a unit called "Gas Tube and Air Sleeve Assembly".

*

  -9 Burners sold prior to S.O.# GK 3600 should have spare part numbers verifi ed by engineering before ordering.

•

Parts included in Atomizer Assembly.

** Use -1 gasket for furnace shell temperatures up to 825°F. Use -2 for furnace shell temperatures up to 975°F.

♦

Furnace Mtg. Gasket

Bulletin 6575

Page 5

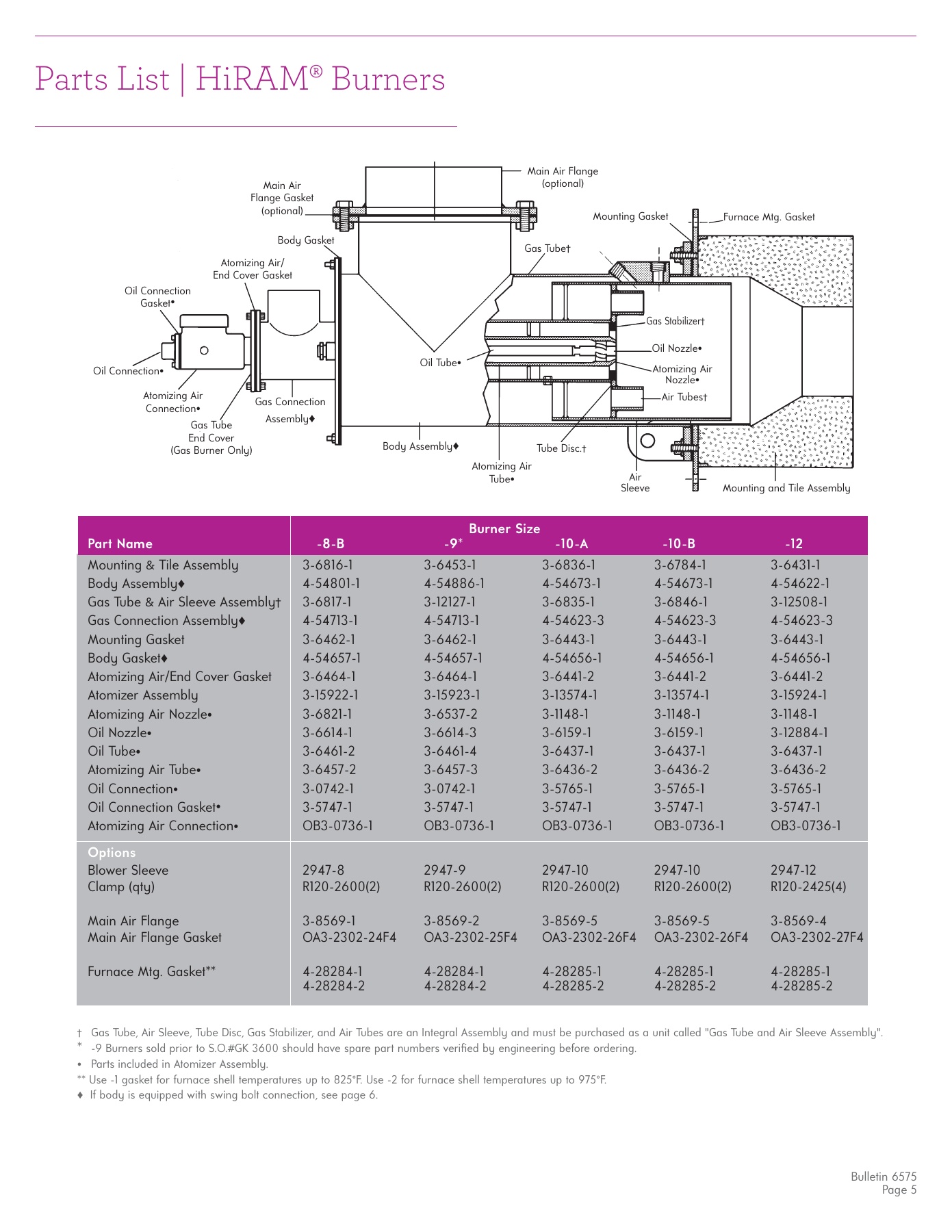

Parts List | HiRAM® Burners

Catalog Combustion 2021 - Page 0794
