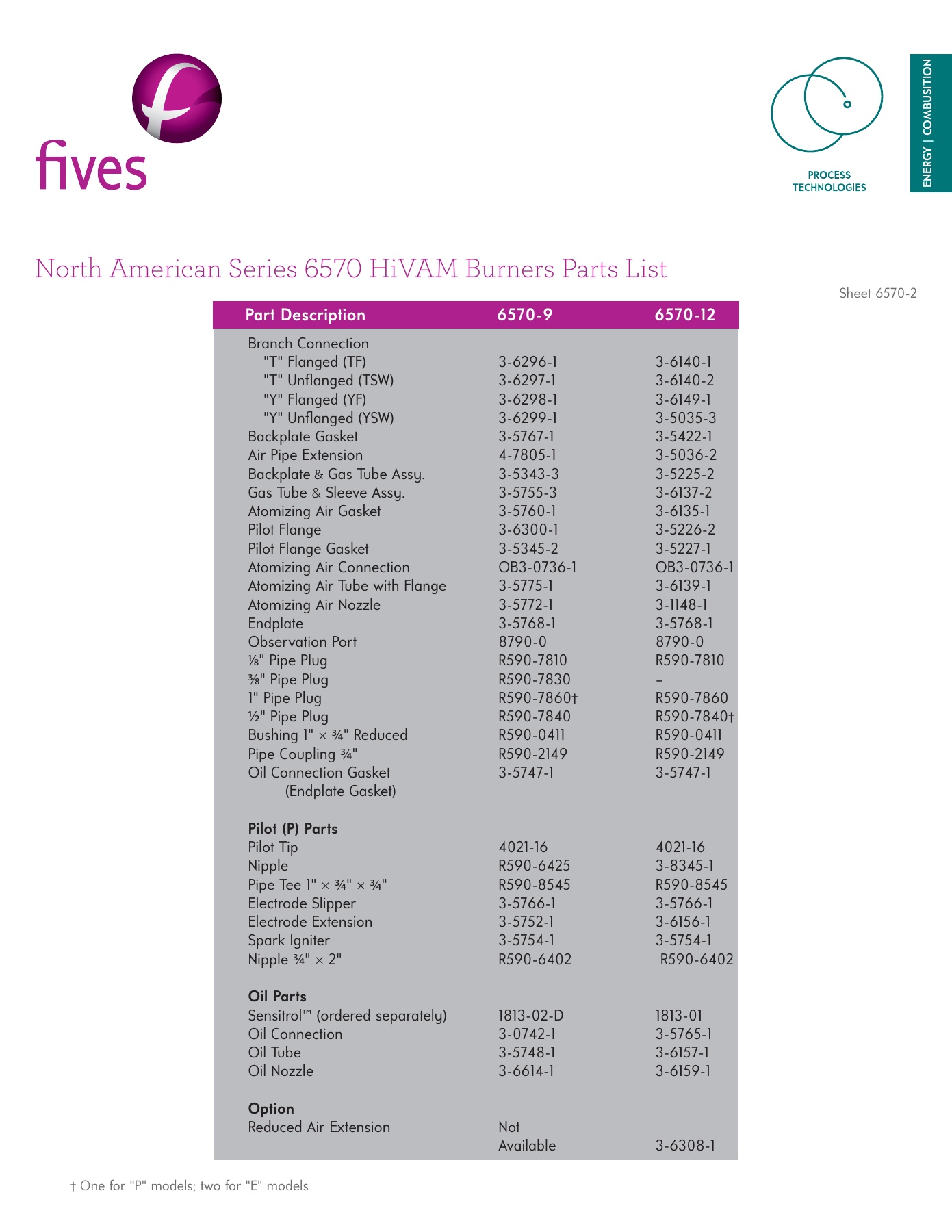

North American Series 6570 HiVAM Burners Parts List
Sheet 6570-2
Part Description
6570-9
6570-12
Branch
Connection
"T" Flanged (TF)
3-6296-1
3-6140-1
"T"
Unfl anged (TSW)
3-6297-1
3-6140-2
"Y" Flanged (YF)
3-6298-1
3-6149-1
"Y"
Unfl anged (YSW)
3-6299-1
3-5035-3
Backplate
Gasket
3-5767-1
3-5422-1
Air Pipe Extension
4-7805-1
3-5036-2
Backplate
&
Gas Tube Assy.
3-5343-3
3-5225-2
Gas
Tube
&
Sleeve Assy.
3-5755-3
3-6137-2
Atomizing Air Gasket
3-5760-1
3-6135-1
Pilot
Flange
3-6300-1
3-5226-2
Pilot Flange Gasket
3-5345-2
3-5227-1
Atomizing Air Connection
OB3-0736-1
OB3-0736-1
Atomizing Air Tube with Flange
3-5775-1
3-6139-1
Atomizing Air Nozzle
3-5772-1
3-1148-1
Endplate
3-5768-1
3-5768-1
Observation
Port
8790-0
8790-0
1⁄8
" Pipe Plug
R590-7810
R590-7810
3⁄8
" Pipe Plug
R590-7830
–
1" Pipe Plug
R590-7860†
R590-7860
½
" Pipe Plug
R590-7840
R590-7840†
Bushing
1"
¾
" Reduced
R590-0411
R590-0411
Pipe
Coupling
¾
" R590-2149
R590-2149
Oil Connection Gasket
3-5747-1
3-5747-1
(Endplate Gasket)
Pilot (P) Parts
Pilot Tip
4021-16
4021-16
Nipple
R590-6425
3-8345-1
Pipe Tee 1"
¾
"
¾
" R590-8545
R590-8545
Electrode Slipper
3-5766-1
3-5766-1
Electrode
Extension
3-5752-1
3-6156-1
Spark
Igniter
3-5754-1
3-5754-1
Nipple
¾
"
2"
R590-6402
R590-6402
Oil Parts
Sensitrol™ (ordered separately)
1813-02-D
1813-01
Oil
Connection
3-0742-1
3-5765-1
Oil
Tube
3-5748-1
3-6157-1
Oil
Nozzle
3-6614-1
3-6159-1
Option
Reduced Air Extension
Not
Available
3-6308-1
† One for "P" models; two for "E" models
