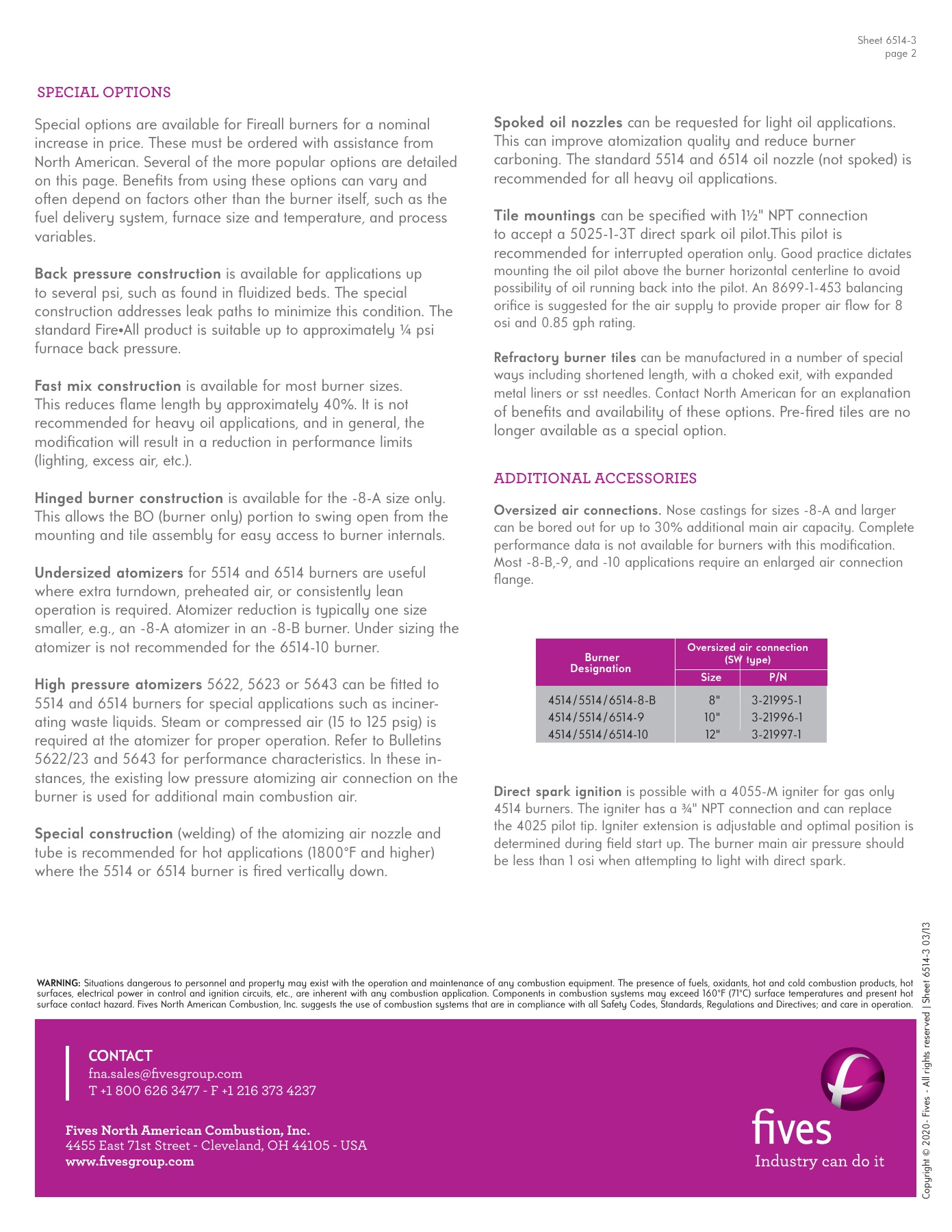

Special options are available for Fireall burners for a nominal
increase in price. These must be ordered with assistance from
North American. Several of the more popular options are detailed
on this page. Benefi ts from using these options can vary and
oft en depend on factors other than the burner itself, such as the
fuel delivery system, furnace size and temperature, and process

Back pressure construction

 is available for applications up

to several psi, such as found in fl uidized beds. The special
construction addresses leak paths to minimize this condition. The
standard Fire•All product is suitable up to approximately



furnace back pressure.

Fast mix construction

 is available for most burner sizes.

This reduces fl ame length by approximately 40%. It is not
recommended for heavy oil applications, and in general, the
modifi cation will result in a reduction in performance limits
(lighting, excess air, etc.).

Hinged burner construction

 is available for the -8-A size only.

This allows the BO (burner only) portion to swing open from the
mounting and tile assembly for easy access to burner internals.

Undersized atomizers

 for 5514 and 6514 burners are useful

where extra turndown, preheated air, or consistently lean
operation is required. Atomizer reduction is typically one size
smaller, e.g., an -8-A atomizer in an -8-B burner. Under sizing the
atomizer is not recommended for the 6514-10 burner.

High pressure atomizers

 5622, 5623 or 5643 can be fi tted to

5514 and 6514 burners for special applications such as inciner-
ating waste liquids. Steam or compressed air (15 to 125 psig) is
required at the atomizer for proper operation. Refer to Bulletins
5622/23 and 5643 for performance characteristics. In these in-
stances, the existing low pressure atomizing air connection on the
burner is used for additional main combustion air.

Special construction

 (welding) of the atomizing air nozzle and

tube is recommended for hot applications (1800°F and higher)
where the 5514 or 6514 burner is fi red vertically down.


Spoked oil nozzles

 can be requested for light oil applications.

This can improve atomization quality and reduce burner
carboning. The standard 5514 and 6514 oil nozzle (not spoked) is
recommended for all heavy oil applications.

Tile mountings

can be specifi ed with 1


" NPT connection

to accept a 5025-1-3T direct spark oil pilot.This pilot is
recommended for interrupt

ed operation only. Good practice dictates

mounting the oil pilot above the burner horizontal centerline to avoid
possibility of oil running back into the pilot. An 8699-1-453 balancing
orifi ce is suggested for the air supply to provide proper air fl ow for 8
osi and 0.85 gph rating.

Refractory burner tiles

 can be manufactured in a number of special

ways including shortened length, with a choked exit, with expanded
metal liners or sst needles. Contact North American for an explana


of benefi ts and availability of these options. Pre-fi red tiles are no
longer available as a special option.

Sheet 6514-3

page 2

Oversized air connections.

Nose castings for sizes -8-A and larger

can be bored out for up to 30% additional main air capacity. Complete
performance data is not available for burners with this modifi cation.
Most -8-B,-9, and -10 applications require an enlarged air connection
fl ange.


Direct spark ignition

 is possible with a 4055-M igniter for gas only

4514 burners. The igniter has a


" NPT connection and can replace

the 4025 pilot tip. Igniter extension is adjustable and optimal position is
determined during fi eld start up. The burner main air pressure should
be less than 1 osi when attempting to light with direct spark.











 4514 / 5514 / 6514-8-B

8"  3-21995-1

 4514 / 5514 / 6514-9

10"  3-21996-1

 4514 / 5514 / 6514-10

12"  3-21997-1

Oversized air connection

(SW type)




t © 2020- F


es - All r


ts r


ved | Shee

t 6514-3 03/13
