Direct spark ignition on oil is not considered a viable lighting method due to the lack of repeatability.

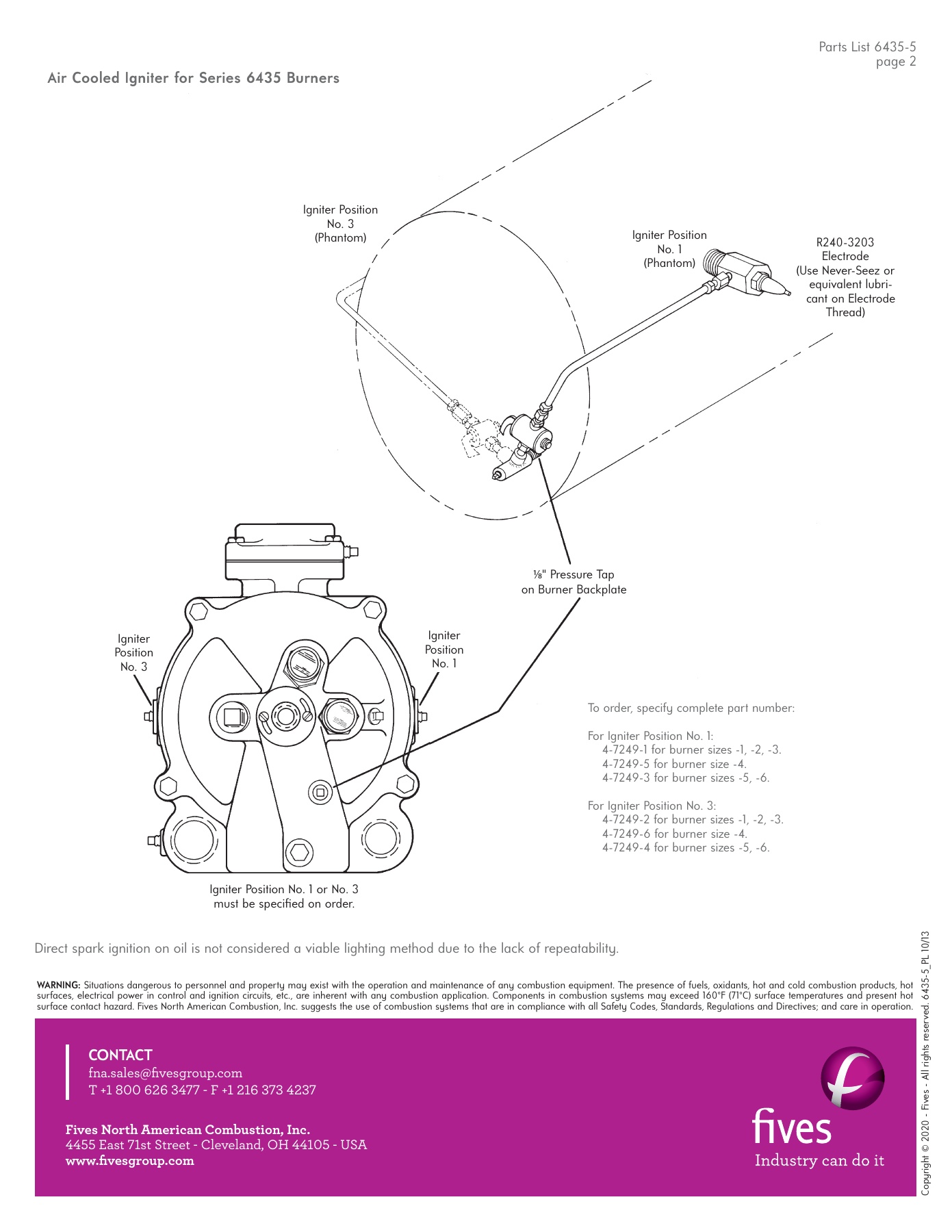

Air Cooled Igniter for Series 6435 Burners
Igniter Position
No. 3
(Phantom)
Igniter Position
No. 1
(Phantom)
R240-3203
Electrode
(Use Never-Seez or
equivalent lubri-
cant on Electrode
Thread)
1⁄8
" Pressure Tap
on Burner Backplate
Igniter
Position
No. 1
Igniter
Position
No. 3
Igniter Position No. 1 or No. 3
must be specifi ed on order.
To order, specify complete part number:
For Igniter Position No. 1:
4-7249-1 for burner sizes -1, -2, -3.
4-7249-5 for burner size -4.
4-7249-3 for burner sizes -5, -6.
For Igniter Position No. 3:
4-7249-2 for burner sizes -1, -2, -3.
4-7249-6 for burner size -4.
4-7249-4 for burner sizes -5, -6.
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts r
eser
ved. 6435-5_PL 10/13
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
