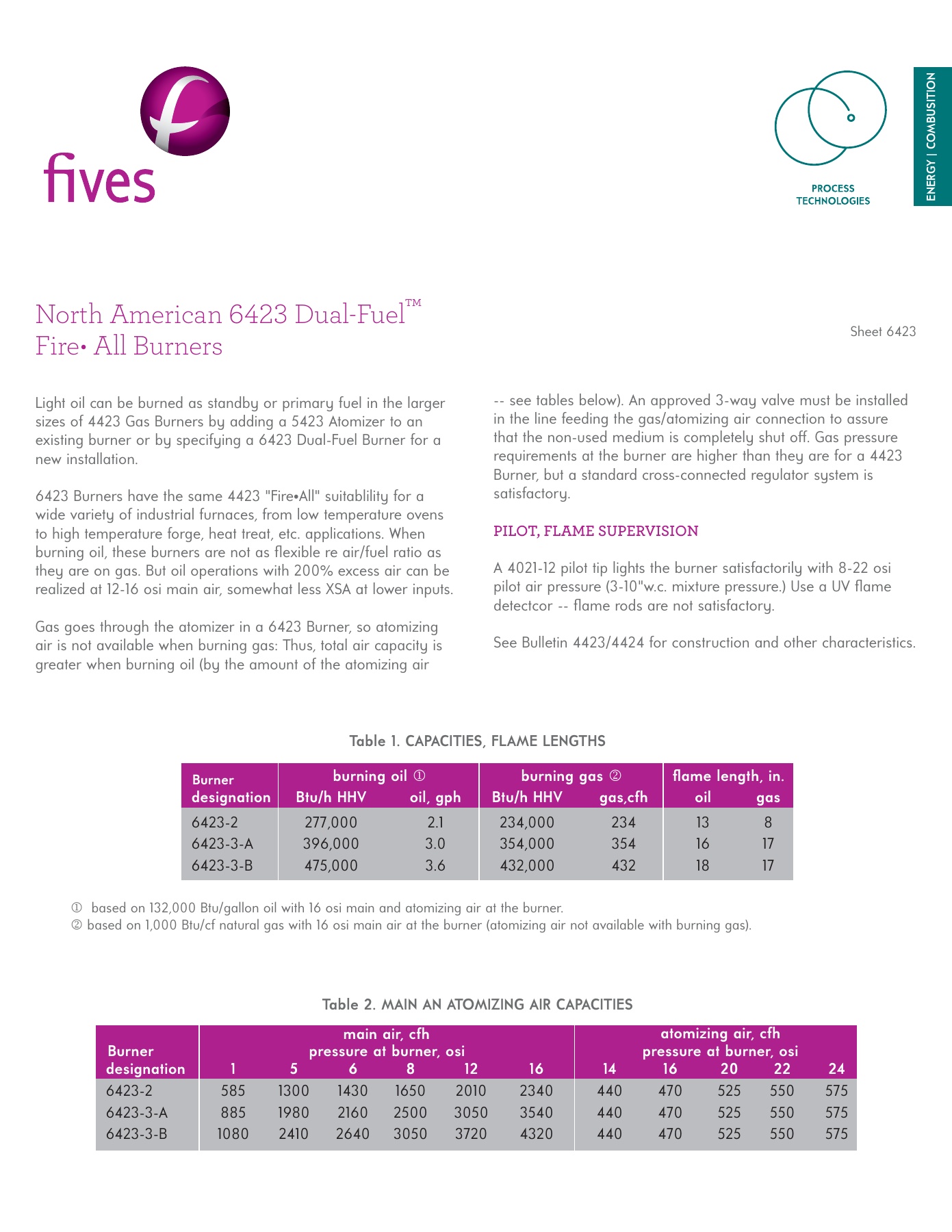

North American 6423 Dual-Fuel™
Fire• All Burners

Sheet 6423

Light oil can be burned as standby or primary fuel in the larger
sizes of 4423 Gas Burners by adding a 5423 Atomizer to an
existing burner or by specifying a 6423 Dual-Fuel Burner for a
new installation.

6423 Burners have the same 4423 "Fire•All" suitablility for a
wide variety of industrial furnaces, from low temperature ovens
to high temperature forge, heat treat, etc. applications. When
burning oil, these burners are not as fl exible re air/fuel ratio as
they are on gas. But oil operations with 200% excess air can be
realized at 12-16 osi main air, somewhat less XSA at lower inputs.

Gas go es through the atomizer in a 6423 Burner, so atomizing
air is not available when burning gas: Thus, total air capacity is
greater when burning oil (by the amount of the atomizing air

-- see tables below). An approved 3-way valve must be installed
in the line feeding the gas/atomizing air connection to assure
that the non-used medium is completely shut off . Gas pressure
requirements at the burner are higher than they are for a 4423
Burner, but a standard cross-connected regulator system is
satisfactory.

PILOT, FLAME SUPERVISION

A 4021-12 pilot tip lights the burner satisfactorily with 8-22 osi
pilot air pressure (3-10"w.c. mixture pressure.) Use a UV fl ame
detectcor -- fl ame rods are not satisfactory.

See Bulletin 4423/4424 for construction and other characteristics.

Table 1. CAPACITIES, FLAME LENGTHS

Table 2. MAIN AN ATOMIZING AIR CAPACITIES

designation

Btu/h HHV

oil, gph

Btu/h HHV

gas,cfh

oil

gas

 6423-2

277,000

2.1

234,000

234

13

8

 6423-3-A

396,000

3.0

354,000

354

16

17

 6423-3-B

475,000

3.6

432,000

432

18

17

Burner

Burner

burning oil



burning gas



fl ame length, in.

pressure at burner, osi

main air, cfh

pressure at burner, osi

atomizing air, cfh



  based on 132,000 Btu/gallon oil with 16 osi main and atomizing air at the burner.



 based on 1,000 Btu/cf natural gas with 16 osi main air at the burner (atomizing air not available with burning gas).

designation 1  5  6  8  12  16  14 16 20

22 24

 6423-2

585  1300  1430  1650  2010  2340

440  470  525  550  575

 6423-3-A

885  1980  2160  2500  3050  3540

440  470  525  550  575

 6423-3-B

1080  2410  2640 3050  3720  4320

440  470  525  550  575
