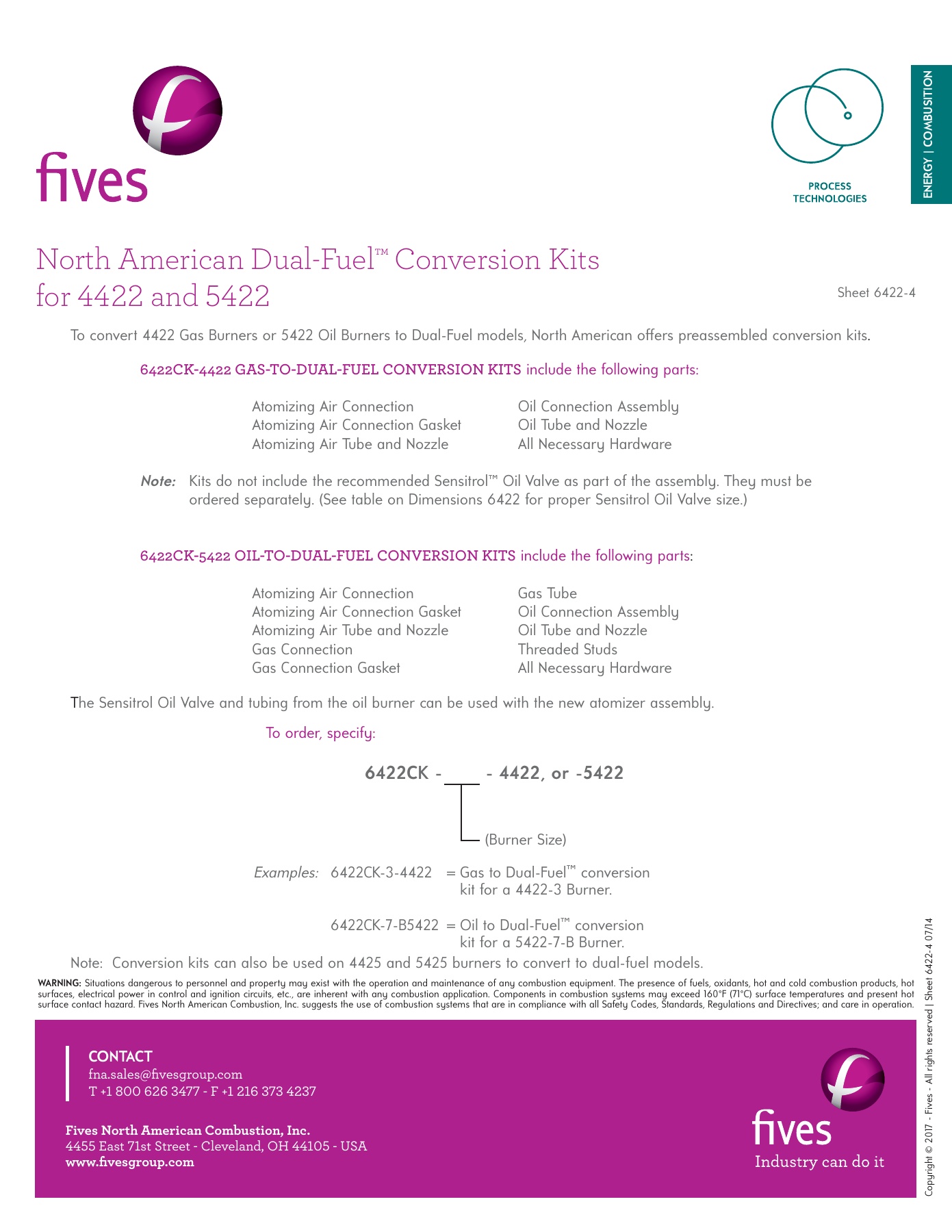

North American Dual-Fuel
™
Conversion Kits
for 4422 and 5422
Sheet 6422-4
To convert 4422 Gas Burners or 5422 Oil Burners to Dual-Fuel models, North American off ers preassembled conversion kits
.
6422CK-4422 GAS-TO-DUAL-FUEL CONVERSION KITS
include the following parts:
Atomizing Air Connection
Oil Connection Assembly
Atomizing Air Connection Gasket
Oil Tube and Nozzle
Atomizing Air Tube and Nozzle
All Necessary Hardware
Note:
Kits do not include the recommended Sensitrol™ Oil Valve as part of the assembly. They must be
ordered separately. (See table on Dimensions 6422 for proper Sensitrol Oil Valve size.)
6422CK-5422 OIL-TO-DUAL-FUEL CONVERSION KITS
include the following parts
:
Atomizing Air Connection
Gas Tube
Atomizing Air Connection Gasket
Oil Connection Assembly
Atomizing Air Tube and Nozzle
Oil Tube and Nozzle
Gas Connection
Threaded Studs
Gas Connection Gasket
All Necessary Hardware
T
he Sensitrol Oil Valve and tubing from the oil burner can be used with the new atomizer assembly.
6422CK - - 4422, or -5422
(Burner Size)
To order, specify:
Examples:
6422CK-3-4422 = Gas to Dual-Fuel™ conversion
kit for a 4422-3 Burner.
6422CK-7-B5422 = Oil to Dual-Fuel™ conversion
kit for a 5422-7-B Burner.
Note: Conversion kits can also be used on 4425 and 5425 burners to convert to dual-fuel models.
