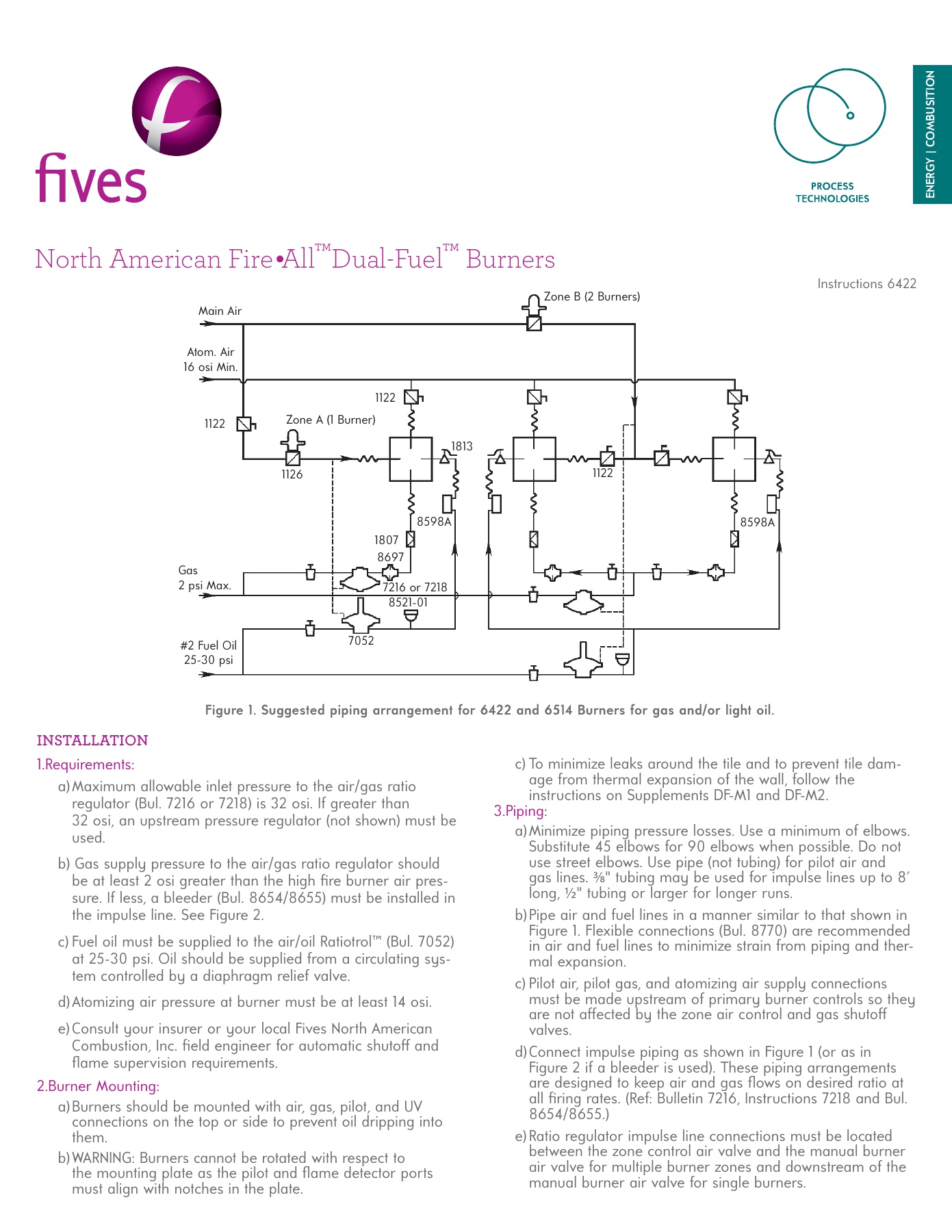

Figure 1. Suggested piping arrangement for 6422 and 6514 Burners for gas and/or light oil.

North American Fire

All™Dual-Fuel™ Burners

Instructions 6422

1.Requirements:





a) Maximum allowable inlet pressure to the air/gas ratio



  regulator (Bul. 7216 or 7218) is 32 osi. If greater than



  32 osi, an upstream pressure regulator (not shown) must be

used.




b) Gas supply pressure to the air/gas ratio regulator should

be at least 2 osi greater than the high fi re burner air pres-
sure. If less, a bleeder (Bul. 8654/8655) must be installed in
the impulse line. See Figure 2.




c) Fuel oil must be supplied to the air/oil Ratiotrol™ (Bul. 7052)

at 25-30 psi. Oil should be supplied from a circulating sys-
tem controlled by a diaphragm relief valve.




d) Atomizing air pressure at burner must be at least 14 osi.




e) Consult your insurer or your local Fives North American

Combustion, Inc. fi eld engineer for automatic shutoff  and
fl ame supervision requirements.

2.Burner Mounting:




a) Burners should be mounted with air, gas, pilot, and UV

connections on the top or side to prevent oil dripping into

them.





b) WARNING: Burners cannot be rotated with respect to



  the mounting plate as the pilot and fl ame detector ports

must align with notches in the plate.





c) To minimize leaks around the tile and to prevent tile dam-

age from thermal expansion of the wall, follow the



  instructions on Supplements DF-M1 and DF-M2.

3.Piping:



a) Minimize piping pressure losses. Use a minimum of elbows.

Substitute 45 elbows for 90 elbows when possible. Do not

use street elbows. Use pipe (not tubing) for pilot air and

gas lines.

3⁄8

" tubing may be used for impulse lines up to 8

long,

½

" tubing or larger for longer runs.




b) Pipe air and fuel lines in a manner similar to that shown in

Figure 1. Flexible connections (Bul. 8770) are recommended

in air and fuel lines to minimize strain from piping and ther-

mal expansion.




c) Pilot air, pilot gas, and atomizing air supply connections

must be made upstream of primary burner controls so they

are not aff ected by the zone air control and gas shutoff

valves.




d) Connect impulse piping as shown in Figure 1 (or as in



  Figure 2 if a bleeder is used). These piping arrangements

are designed to keep air and gas fl ows on desired ratio at

all fi ring rates. (Ref: Bulletin 7216, Instructions 7218 and Bul.

8654/8655.)




e) Ratio regulator impulse line connections must be located

between the zone control air valve and the manual burner

air valve for multiple burner zones and downstream of the

manual burner air valve for single burners.

INSTALLATION

#2 Fuel Oil

25-30 psi

Gas
2 psi Max.

7052

8521-01

7216 or 7218

1807

8697

8598A

1126

1813

Zone A (1 Burner)

1122

8598A

Zone B (2 Burners)

Main Air

1122

Atom. Air

16 osi Min.

1122

ENERG

Y | C

OMBUSITION
