Flame supervision

detector location

¾

" pipe plugs (2)

Observation port

or Pilot

Tile retaining

rods

6421-4, -5, -6

Swing bolt

with knob  (4)

Main air fl ange gasket

Main

air fl ange

6421-7-A,

-7-B, -8-A

Tile retaining

rods

Observation port

or Pilot

Flame supervision

detector location

¾

" pipe plugs (2)

Main air fl ange

Main air fl ange gasket

Cap screws (6)







       

 Burner designation



Part name

6421-4

6421-5

6421-6

6421-7-A

6421-7-B

6421-8-A

Backplate



3-4765-3  3-4765-3 3-4765-3 3-4826-2 3-4826-2 3-4826-2

Backplate

Fastener

 –

 –

 –

4-13701-1

4-13701-1

4-13701-1

Backplate Fastener Adapter



–



–



–

4-13698-1

4-13698-1

4-13698-1

Body



3-4764-5  3-4764-6 3-4764-6 3-4822-1  3-4822-1  3-4822-1

Knob (4 reqd.)

3-6827-1

3-6827-1

3-6827-1



–



–



Main Air Flange

4-1695-2

4-1695-3

4-1695-9

8765 -7-D 8765-7-D 8765-8

 7-D

Main Air Flange Gasket

4-5371-2

4-5371-2

4-5371-2

4-5371-3

4-5371-3

4-5371-3

Observation

Port

8790-0  8790-0 8790-0 8790-0 8790-0  8790-0

Swing Bolt (4 reqd.)

3-6492-2

3-6492-2

3-6492-2



–



–



Tile Retaining Rods

3-1115-2

3-1115-2

3-1115-2

3-1115-2

3-1115-2

3-1115-2

 (4 reqd.)

Backplate fastener

Backplate fastener adapter

Body

Backplate

Section A-A

A

A

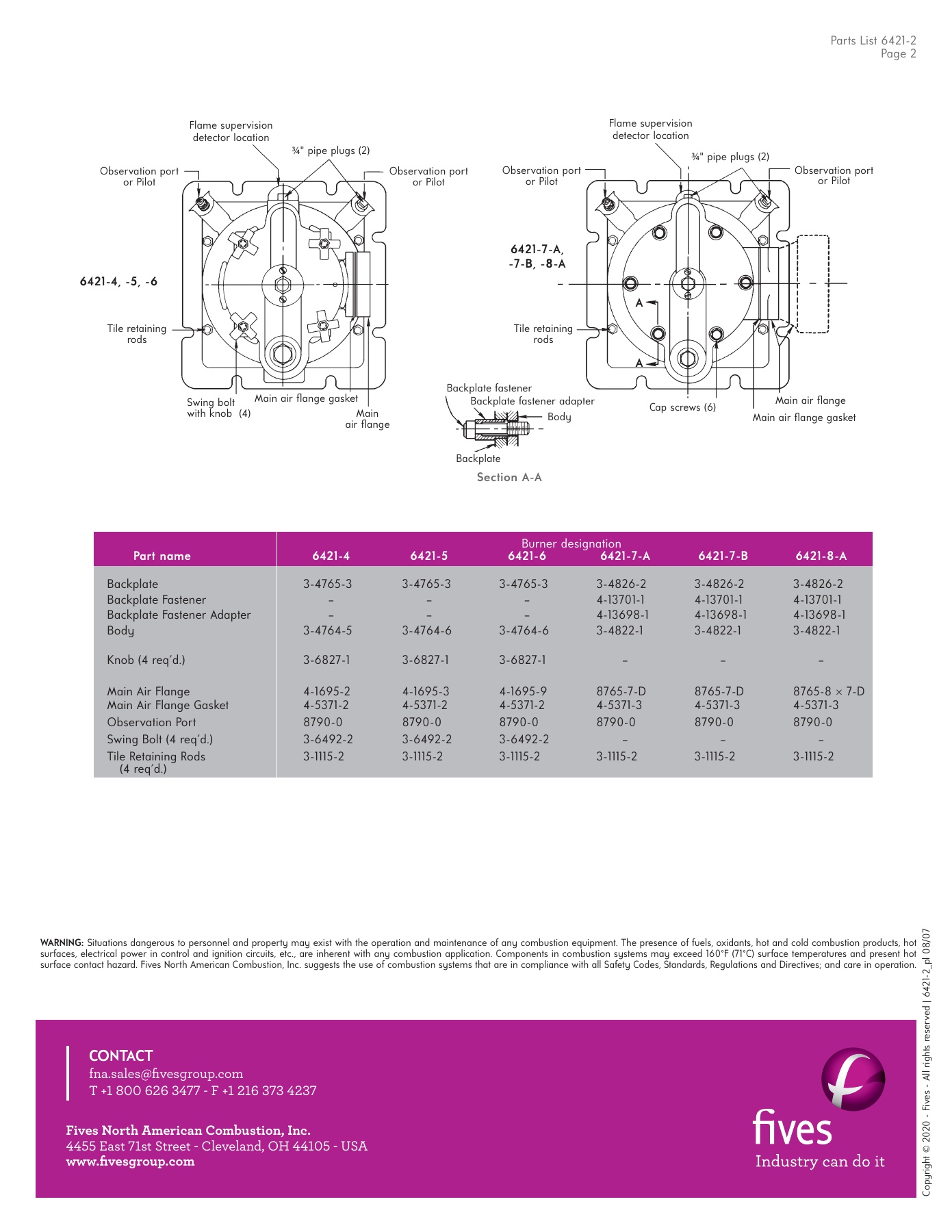

Parts List 6421-2

Page 2

Observation port

or Pilot

Observation port

or Pilot

Cop

yr

igh

t © 2020 - F

iv

es - All r

igh

ts r

eser

ved | 6421-2_pl 08/07

WARNING:

Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot

surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
