AIR MOTOR

Fisher
Positioner

FP

FL

TP

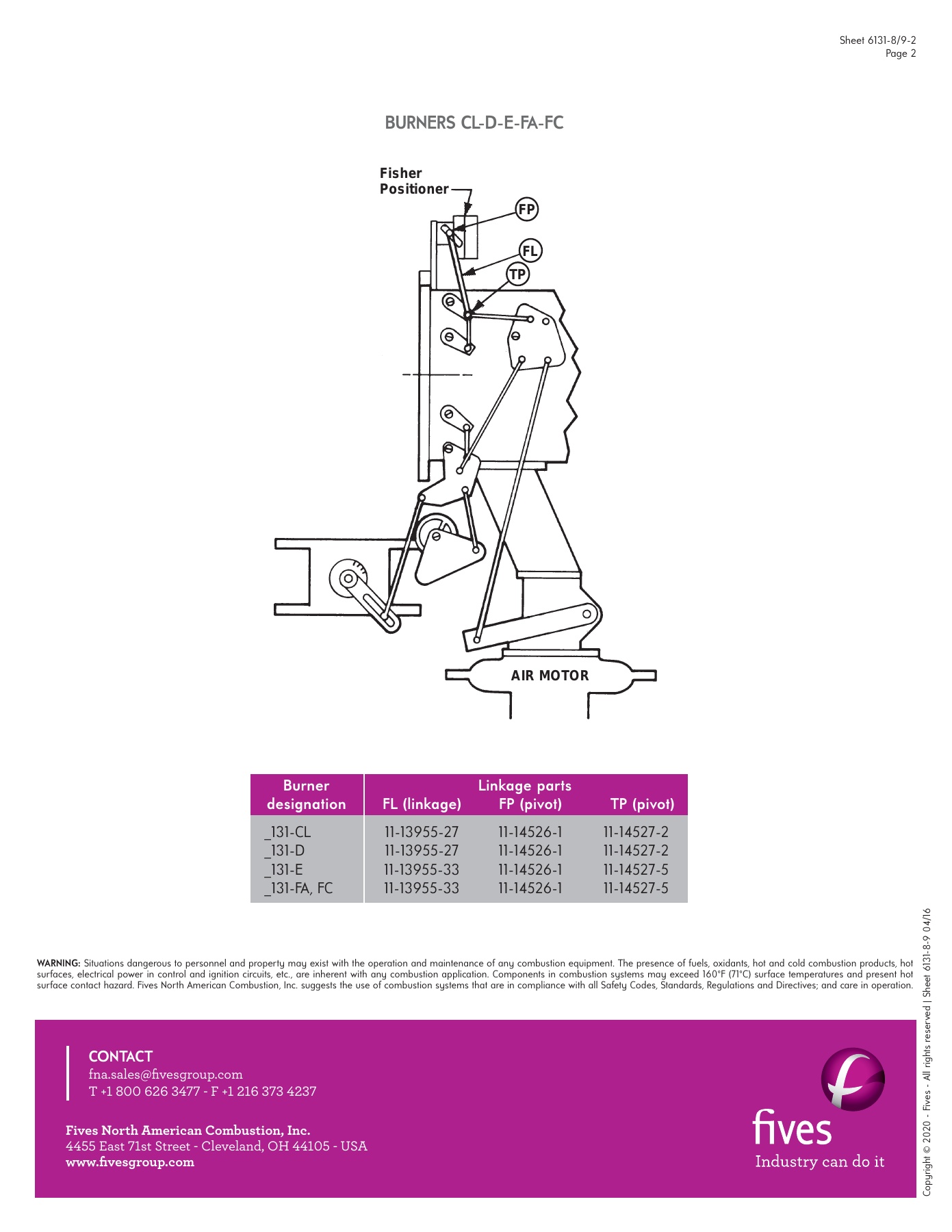

BURNERS CL-D-E-FA-FC

Burner

designation

FL (linkage)

FP (pivot)

TP (pivot)

_131-CL 11-13955-27

11-14526-1

11-14527-2 

 _131-D

11-13955-27

11-14526-1

11-14527-2 

 _131-E

11-13955-33

11-14526-1

11-14527-5 

 _131-FA,

FC

11-13955-33

11-14526-1

11-14527-5 

Linkage parts

Sheet 6131-8/9-2

Page 2

Cop

yr

igh

t © 2020 - F

iv

es - All r

igh

ts r

eser

ved | Shee

t 6131-8-9 04/16

WARNING:

Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot

surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
