Burner
designation
L
N°
P
VL (linkage)
L (pivot)
VP (pivot)
_131-A 9
63
1 5⁄8
" 11-13955-10 11-14527-14
11-14527-13
_131-B
10
72
2 3⁄8
" 11-13955-15 11-14527-3
11-14527-7
_131-C
9
45
1 5⁄8
" 11-13955-16 11-14527-15
11-14527-17
_131-CL
8
62
33⁄16
"
11-13956-49
See Pivot K
11-14537-3
_131-CS
9
45
1 5⁄8
" 11-13955-45 11-14527-15 11-14527-17
_131-D
8
62
33⁄16
"
11-13956-49
See Pivot K
11-14537-3
_131-E
6
60
45⁄16
" 11-13956-44 11-14537-1
11-14537-6
_131-FA,
FC
6
60
45⁄16
" 11-13956-52 11-14537-1
11-14537-6

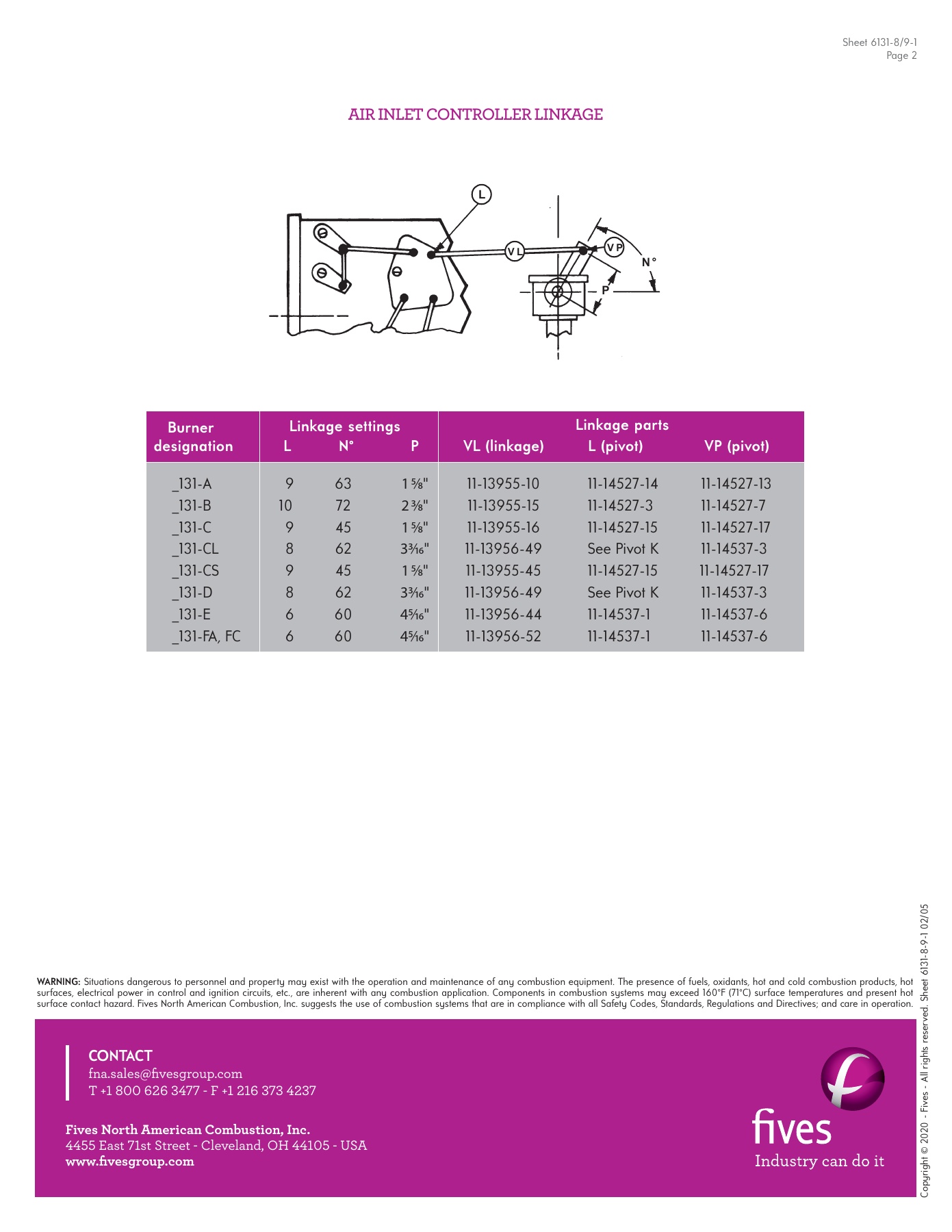

AIR INLET CONTROLLER LINKAGE
Linkage settings
Linkage parts
Sheet 6131-8/9-1
Page 2
L
V L
N °
P
V P
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts r
eser
ved. Shee
t 6131-8-9-1 02/05
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
