Burner
  designation

M (dim.)

AR (hole)

AR (pivot)

AP (pivot)

AF (linkage)

_131-A

67⁄16

" 4 11-14536-10

11-14537-8 

11-13956-44

 _131-B

67⁄16

" 3 11-14536-10

11-14537-8 

11-13956-50

 _131-C

5½

"  2 11-14536-11

11-14536-12

11-13956-47

 _131-CL

5½

"  2 11-14536-11

11-14536-12

11-13956-59

 _131-CS

5½

"  2 11-14536-11

11-14536-12

11-13956-47

 _131-D

5½

"  2 11-14536-11

11-14536-12

11-13956-59

 _131-E

67⁄16

" 3 11-14537-5 

11-14537-7 

11-13956-64

 _131-FA,

FC

67⁄16

" 3 11-14537-5 

11-14537-7 

11-13956-64

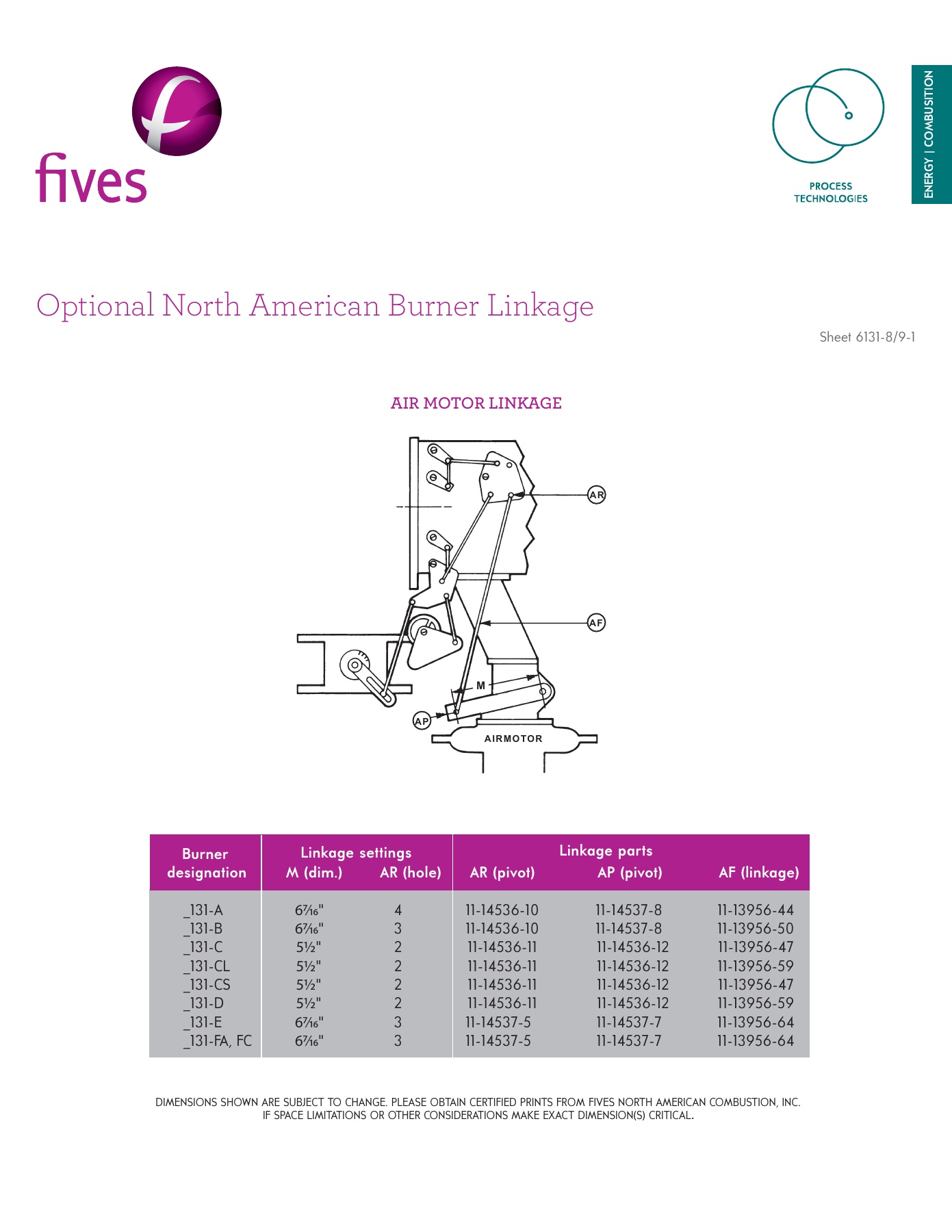

AIR MOTOR LINKAGE

Linkage settings

Linkage parts

Optional North American Burner Linkage

Sheet 6131-8/9-1

AR

AF

AP

M

AIRMOTOR

DIMENSIONS SHOWN ARE SUBJECT TO CHANGE. PLEASE OBTAIN CERTIFIED PRINTS FROM FIVES NORTH AMERICAN COMBUSTION, INC.

IF SPACE LIMITATIONS OR OTHER CONSIDERATIONS MAKE EXACT DIMENSION(S) CRITICAL

.
