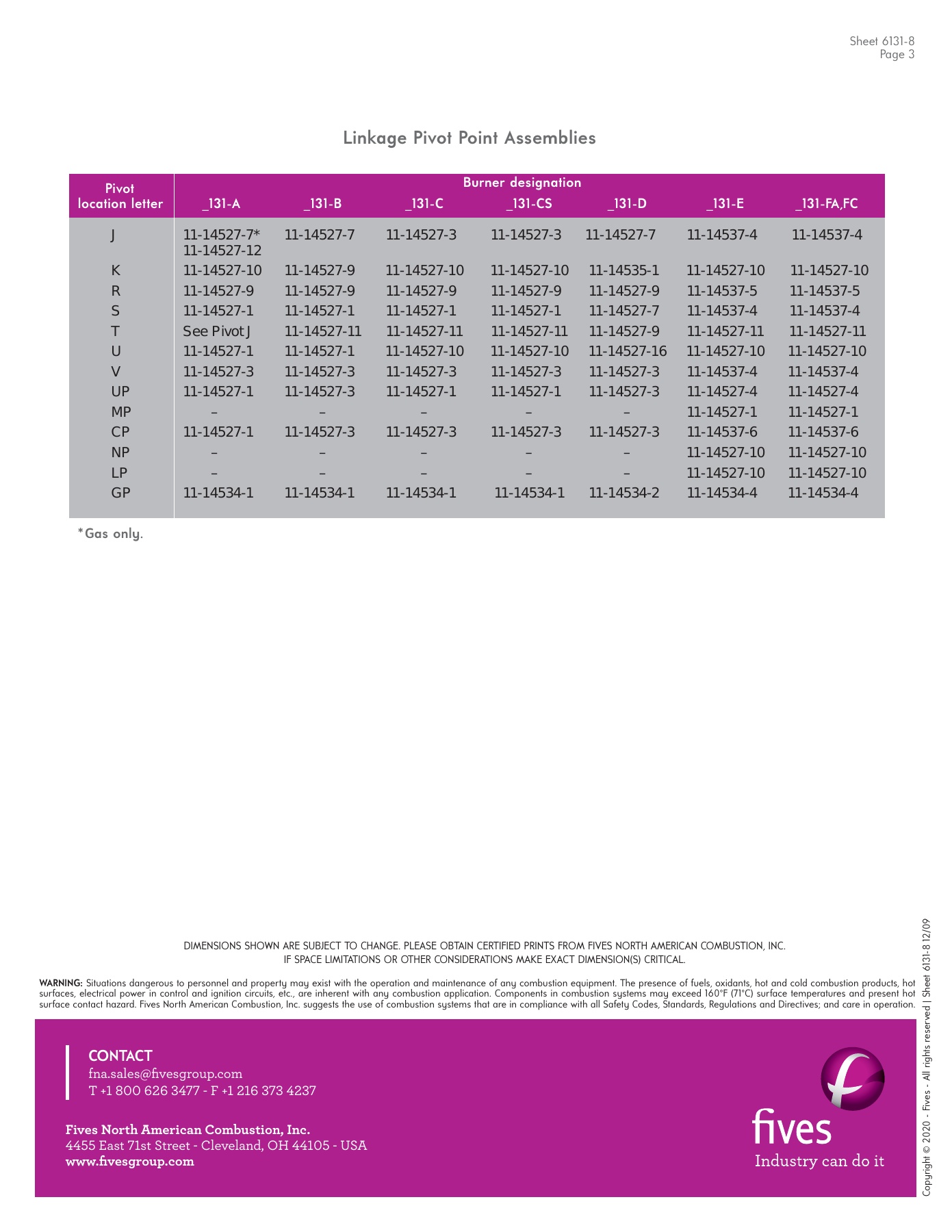

Linkage Pivot Point Assemblies
Pivot
location
letter
_131-A _131-B _131-C _131-CS
_131-D _131-E
_131-FA,FC
J
11-14527-7*
11-14527-7
11-14527-3
11-14527-3 11-14527-7 11-14537-4
11-14537-4
11-14527-12
K
11-14527-10
11-14527-9
11-14527-10
11-14527-10
11-14535-1
11-14527-10
11-14527-10
R
11-14527-9
11-14527-9
11-14527-9
11-14527-9
11-14527-9
11-14537-5
11-14537-5
S
11-14527-1
11-14527-1
11-14527-1
11-14527-1
11-14527-7
11-14537-4
11-14537-4
T
See Pivot J
11-14527-11
11-14527-11
11-14527-11
11-14527-9
11-14527-11
11-14527-11
U
11-14527-1
11-14527-1
11-14527-10
11-14527-10 11-14527-16 11-14527-10
11-14527-10
V
11-14527-3
11-14527-3
11-14527-3
11-14527-3
11-14527-3
11-14537-4
11-14537-4
UP
11-14527-1
11-14527-3
11-14527-1
11-14527-1
11-14527-3
11-14527-4
11-14527-4
MP
– –
– –
–
11-14527-1
11-14527-1
CP
11-14527-1
11-14527-3
11-14527-3
11-14527-3
11-14527-3
11-14537-6
11-14537-6
NP
–
–
–
–
–
11-14527-10 11-14527-10
LP
–
–
–
–
–
11-14527-10 11-14527-10
GP
11-14534-1
11-14534-1
11-14534-1
11-14534-1
11-14534-2
11-14534-4
11-14534-4
* Gas only.
