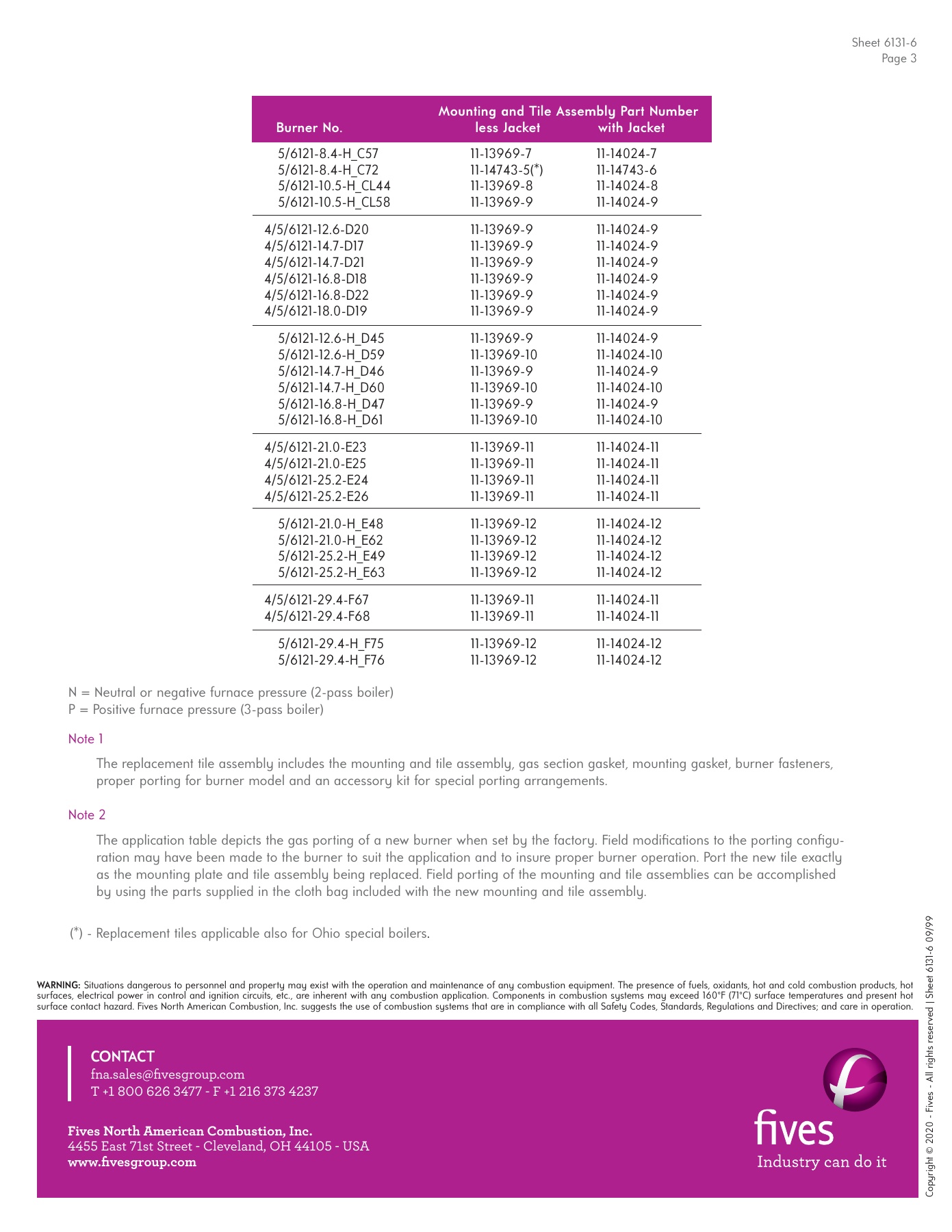

Mounting and Tile Assembly Part Number
Burner No.
less Jacket
with Jacket
5/6121-8.4-H_C57
11-13969-7
11-14024-7
5/6121-8.4-H_C72
11-14743-5(
*
) 11-14743-6
5/6121-10.5-H_CL44
11-13969-8
11-14024-8
5/6121-10.5-H_CL58
11-13969-9
11-14024-9
4/5/6121-12.6-D20
11-13969-9
11-14024-9
4/5/6121-14.7-D17
11-13969-9
11-14024-9
4/5/6121-14.7-D21
11-13969-9
11-14024-9
4/5/6121-16.8-D18
11-13969-9
11-14024-9
4/5/6121-16.8-D22
11-13969-9
11-14024-9
4/5/6121-18.0-D19
11-13969-9
11-14024-9
5/6121-12.6-H_D45
11-13969-9
11-14024-9
5/6121-12.6-H_D59
11-13969-10
11-14024-10
5/6121-14.7-H_D46
11-13969-9
11-14024-9
5/6121-14.7-H_D60
11-13969-10
11-14024-10
5/6121-16.8-H_D47
11-13969-9
11-14024-9
5/6121-16.8-H_D61
11-13969-10
11-14024-10
4/5/6121-21.0-E23
11-13969-11
11-14024-11
4/5/6121-21.0-E25
11-13969-11
11-14024-11
4/5/6121-25.2-E24
11-13969-11
11-14024-11
4/5/6121-25.2-E26
11-13969-11
11-14024-11
5/6121-21.0-H_E48
11-13969-12
11-14024-12
5/6121-21.0-H_E62
11-13969-12
11-14024-12
5/6121-25.2-H_E49
11-13969-12
11-14024-12
5/6121-25.2-H_E63
11-13969-12
11-14024-12
4/5/6121-29.4-F67
11-13969-11
11-14024-11
4/5/6121-29.4-F68
11-13969-11
11-14024-11
5/6121-29.4-H_F75
11-13969-12
11-14024-12
5/6121-29.4-H_F76
11-13969-12
11-14024-12
N = Neutral or negative furnace pressure (2-pass boiler)
P = Positive furnace pressure (3-pass boiler)
Note 1
The replacement tile assembly includes the mounting and tile assembly, gas section gasket, mounting gasket, burner fasteners,
proper porting for burner model and an accessory kit for special porting arrangements.
Note 2
The application table depicts the gas porting of a new burner when set by the factory. Field modifi cations to the porting confi gu-
ration may have been made to the burner to suit the application and to insure proper burner operation. Port the new tile exactly
as the mounting plate and tile assembly being replaced. Field porting of the mounting and tile assemblies can be accomplished
by using the parts supplied in the cloth bag included with the new mounting and tile assembly.
(
*
) - Replacement tiles applicable also for Ohio special boilers
.
Sheet 6131-6
Page 3
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts r
eser
ved | Shee
t 6131-6 09/99
