  End of electrode may be pointed or square



  Part number 11-5073-1 is supplied as a standard pilot on "A" size light oil package burners only. Part number 11-4130-1 is supplied as a standard pilot on

"B", "C", and "CS" size light oil package burners. Part number 11-4130-1 is supplied on a "D" size light oil burner only when an air inlet valve is provided.

Part Number

  11-4130-1

("B", "C", and "CS" burners)

  11-5073-1

("A" burners)

 Pilot



Nozzle

 11-4130-1

  11-3434-1

 11-5073-1

  11-4847-1

Spark Electrode

R240-2793

Ignition Cable

Assembly

gasket

Pilot Air Inlet

See Note



Body (11-4079-1)

Pilot Gas Inlet

with

1⁄8

"

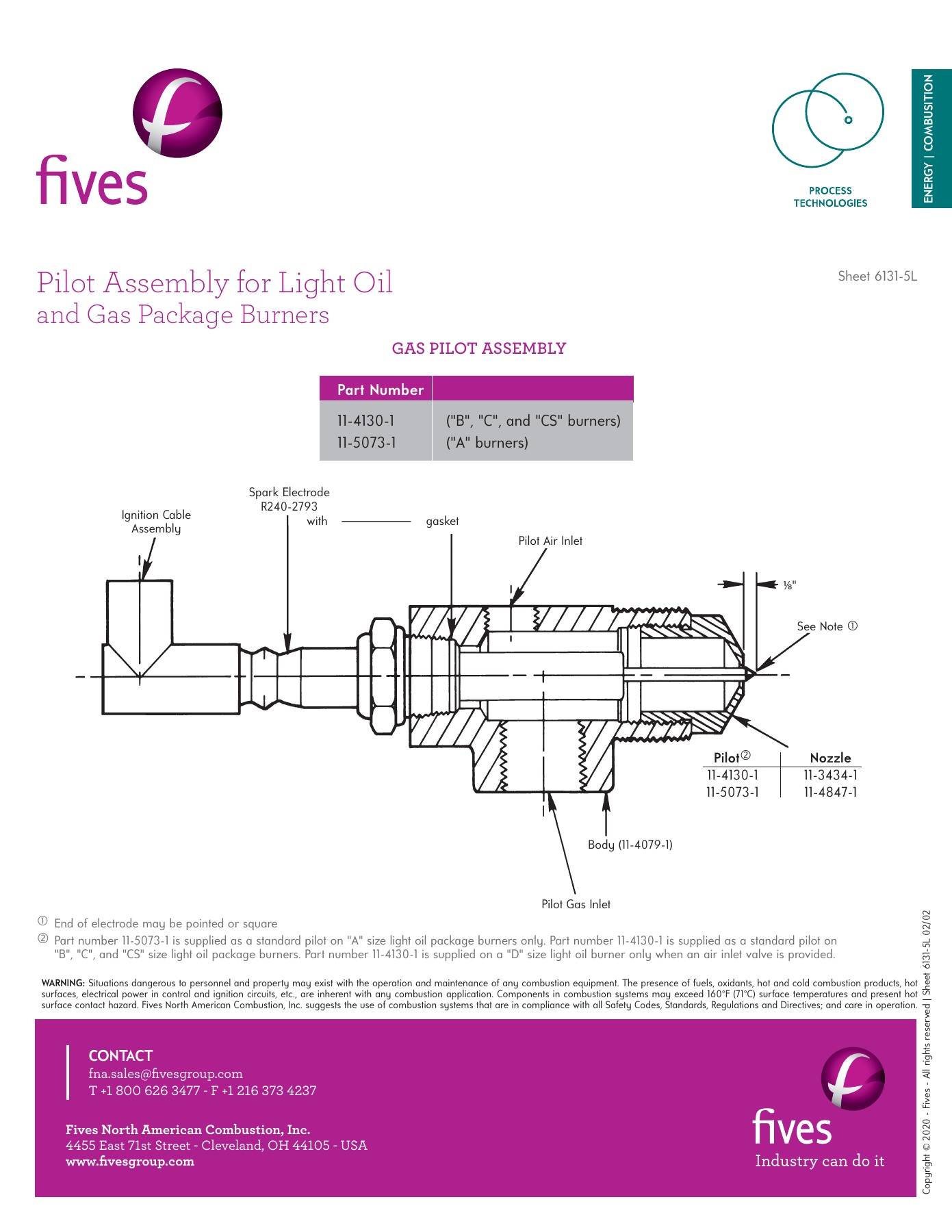

Pilot Assembly for Light Oil

and Gas Package Burners

Sheet 6131-5L

Cop

yr

igh

t © 2020 - F

iv

es - All r

igh

ts r

eser

ved | Shee

t 6131-5L 02/02

WARNING:

Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot

surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.

GAS PILOT ASSEMBLY
