This Pilot is supplied as a standard on "A", "B", and "C" size heavy oil package burners. Part number 11-4080-1 is supplied
on the "E" and "F" size light oil burners and the "CL", "D", "E", and "FA" size heavy oil burners only when an air inlet valve is
provided.

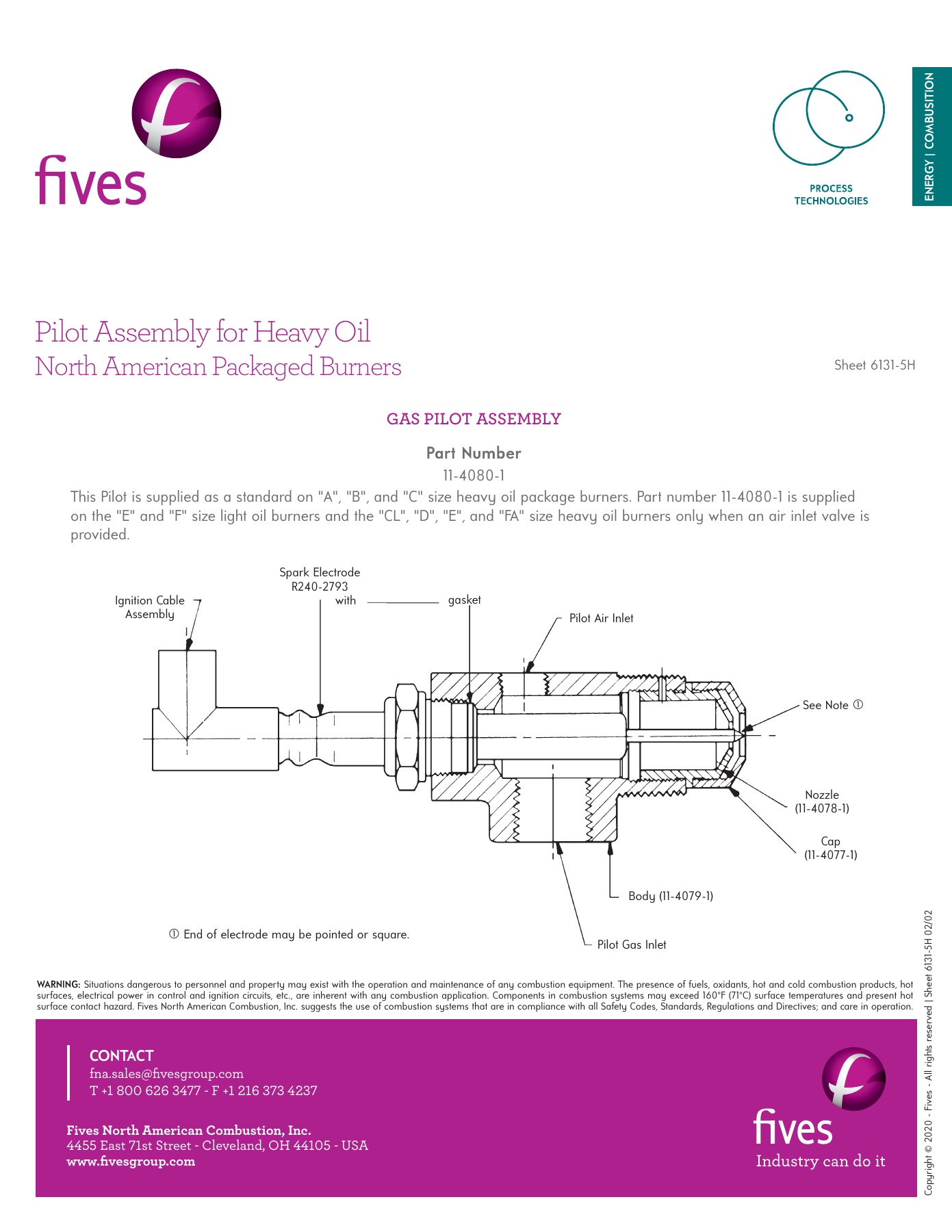

GAS PILOT ASSEMBLY
Part Number
11-4080-1
End of electrode may be pointed or square.
with
Spark Electrode
R240-2793
Ignition Cable
Assembly
gasket
Pilot Air Inlet
See Note
Nozzle
(11-4078-1)
Cap
(11-4077-1)
Body (11-4079-1)
Pilot Gas Inlet
Pilot Assembly for Heavy Oil
North American Packaged Burners
Sheet 6131-5H
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts r
eser
ved | Shee
t 6131-5H 02/02
WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
