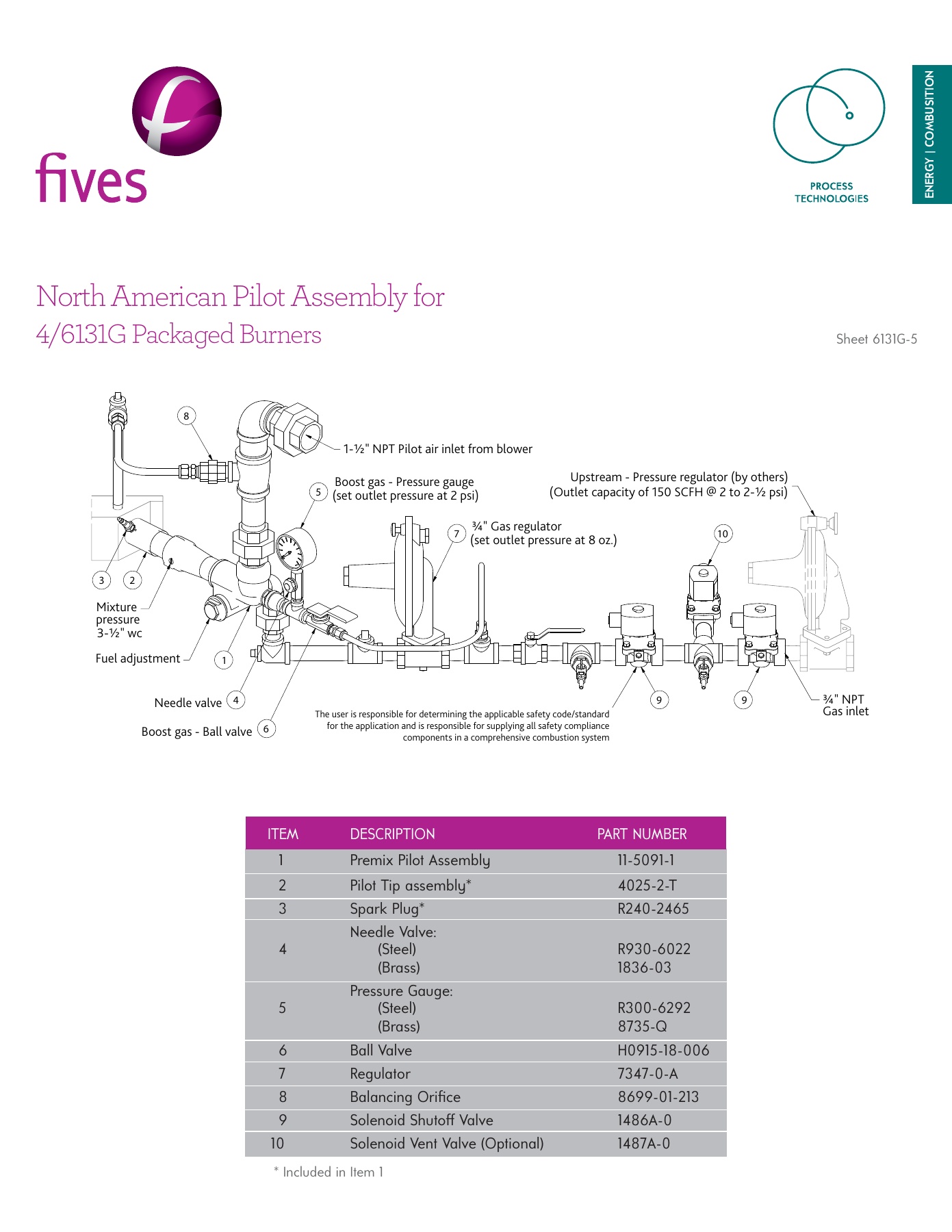

North American Pilot Assembly for



4/6131G Packaged Burners

Sheet 6131G-5

8

5

4

6

7

10

9

1

2

3

9

1-½" NPT Pilot air inlet from blower

 Boost gas - Pressure gauge

(set outlet pressure at 2 psi)

Boost gas - Ball valve

¾" Gas regulator

(set outlet pressure at 8 oz.)

¾" NPT

Gas inlet

Fuel adjustment

Mixture

pressure

3-½" wc

Needle valve

Upstream - Pressure regulator (by others)

(Outlet capacity of 150 SCFH @ 2 to 2-½ psi)



The user is responsible for determining the applicable safety code/standard

for the application and is responsible for supplying all safety compliance

components in a comprehensive combustion system



 ITEM

DESCRIPTION

 PART NUMBER

  1

Premix Pilot Assembly

11-5091-1

  2

Pilot Tip assembly*

4025-2-T

 3

Spark

Plug*

R240-2465



Needle

Valve:

 4

(Steel)

R930-6022



(Brass)

1836-03



Pressure

Gauge:

 5

(Steel)

R300-6292



(Brass)

8735-Q

 6

Ball

Valve

H0915-18-006

 7

Regulator

7347-0-A

 8

Balancing

Orifi ce

8699-01-213

 9

Solenoid

Shutoff  Valve

1486A-0

  10

Solenoid Vent Valve (Optional)

1487A-0

  * Included in Item 1



ENERG

Y | C

OMBUSITION

Catalog Combustion 2021 - Page 0689
