Item no.
Part no.
Description
1–3
11-5926-8
Mounting Plate Gasket
2–14
R830-4028
Hinge
Switch
2–15
11-2946-3
Hinge Eyelet (2 required)
2–16
1813MR-0
Controlling
Sensitrol
TM
Oil Valve,
¾
", c/w cartridge heater (Steel) or
1813MV-0
Controlling Sensitrol Oil Valve,
¾
", c/w cartridge heater (Brass)
2–17
11-13956-11
Linkage Rod Assembly for Sensitrol Oil Valve
2–18
11-13958-6
Linkage Rod Assembly for Gas Valve with Air Motor
11-13958-7
Linkage Rod Assembly for Gas Valve with Electric Control Motor
3
11-7845-1
Shutter Housing Assembly (Linkage not included)
3–1
11-4951-1
Lever Arm Assembly
3–2
11-5314-2
Lower Lever Arm Assembly
3–3
11-13956-1
Linkage Rod Assembly
3–4
11-13956-31
Linkage Rod Assembly
3–5
11-13956-16
Linkage Rod Assembly for Air Motor
11-13956-31
Linkage Rod Assembly for for Electric Control Motor
3–6
11-13955-2
Linkage Rod Assembly
8
R830-9837
Combustion Air Interlock (NEMA 1)
8
8757-GAO-A4 / 4 / 5
Combustion Air Interlock (NEMA 4)
23-2
R830-4063
Low Fire Position Switch, or High Fire Position Switch
33
11-5281-1
Hinge Assembly for 4131-G
or
11-5281-2
Hinge Assembly for 5131 and 6131-G2
or
11-5281-3
Hinge Assembly for 5131 and 6131-G4, 5, 6, or CR
33–1
1813-02-BK
Bypass Sensitrol Oil Valve,
3⁄8
"
33–2
R320-3111
Tefl on Hose w/sst braid
33–3
R916-8735
Adapter for Flexible Hose
3–7
11-14537-12
Linkage Pivot Assembly for Air Motor
11-14536-1
Linkage Pivot Assembly for Electric Control Motor
3–8
11-14537-13
Linkage Pivot Assembly
3–9
11-14539-2
Gas Valve Pivot Assembly (valve end)
3–10
11-14539-1
Gas Valve Pivot Assembly (drive end) for Air Motor
11-14539-2
Gas Valve Pivot Assebmly (drive end) for Electric Control Motor
3–11
11-14537-7
Linkage Pivot Assembly
3–12
11-14537-9
Linkage Pivot Assembly
3–13
11-14537-10
Linkage Pivot Assembly
3–14
11-14537-11
Linkage Pivot Assembly
3–15
11-14537-14
Linkage Pivot Assembly
3–16
11-14526-1
Linkage Pivot Assembly
3–17
11-14527-20
Linkage Pivot Assembly
3–3
3–2
2–16
23–2
3–17
3–5
2 –17
33–2
3–7
3–6
3–15
3–16
3–14
3–13
1–3
3–1
33
2–18
33–1
3–7
3–8
3–9
3–10
3–11
33–3
2–15
8
3
3–4
3–12
2–14

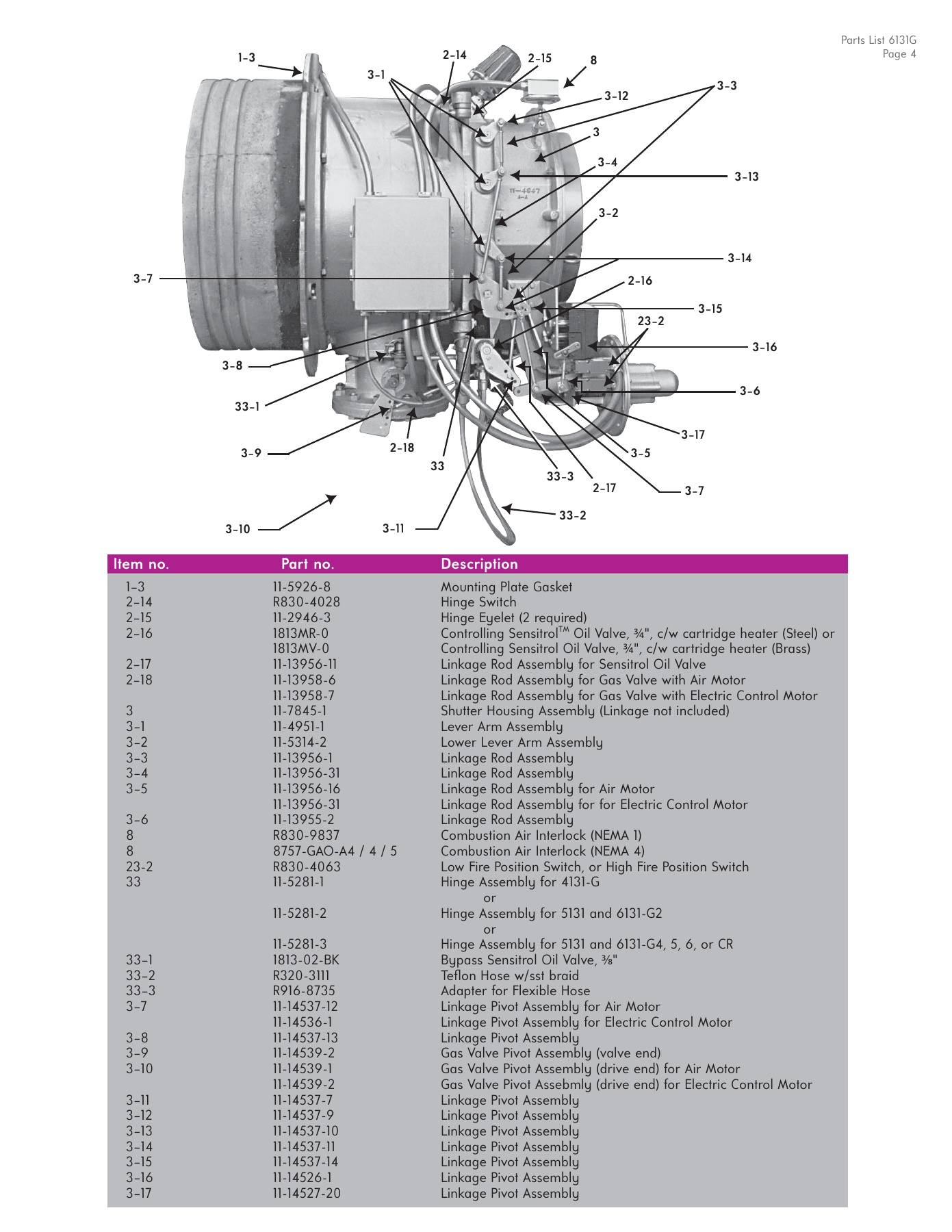

Parts List 6131G
Page 4
