RECOMMENDED SPARE PARTS

8663B CYCLE CONTROL MANIFOLD

Description



Part Number

Rubber Seal and Quick

R950-5016

Release Valve (QRV) Kit including
instructions and illustration

s

Qty



Part Name

Solenoid "O" Rings (2 reqd)

Cylinder "O" Rings (1 reqd)

(a) "O" Ring Piston Seal (Old Style)

(a) U-Cup Piston Seal (New Style)



"O" Ring for Air Spring Return (NA)



End Cover Gasket (1 reqd)

(b) Subplate Gasket (New Style)

(b) Subplate Gasket (Old Style)



QRV Cover Insert (1 reqd)



QRV Covers (2 reqd)

(c)  QRV Diaphragm

(c)  QRV Plug



Cover "O" Ring (2 reqd)



QRV Seat (N/A)

(c)  "O" Ring for Seat (NA)



Grease (2 Grams)

(a) A quantity of one (1) of the seals is required depending on the

solenoid valve style being repaired. The spring return side of
the ceram valve dœ s not have piston seals, therefore only the
piston seal on the solenoid side of the valve requires replace-
ment. Replace the worn seal with a new one of the same
type.

(b) A quantity of one (1) of the subplate gaskets is required de-

pending on the solenoid valve style being repaired. Replace
the worn subplate gasket with a new one of the same type.

(c) The QRV diaphragm or the QRV plug is used when rebuilding

the QRV on the solenoid side of the ceram valve depending
on the style. If the ceram valve dœ s not have a removable
QRV seat, install the green diaphragm in place of the gray
one. If there is a removable QRV seat, discard seat and "O"
ring and install the QRV plug and new "O" ring. The spring
return side dœ s not require a diaphragm or plug.

Part Description



Part Number

In

ternally piloted ceram valve

2-8350-1

 (Dœ s not include lighted conduit
  connector)

2-8340-1

Lighted conduit connector

R950-5007

Muffl

  er/silencer

R800-1001

Mounting bracket

2-8349-1

Coil and operator (UL Listed)

R950-5024

Coil and operator (CSA Approved)

R950-5026

Blanking station kit

R950-5001

 (Includes plate, gasket,
   and screws)

1444A REPAIR KIT

In 1989/1990, the ceram solenoid valve casting design was
changed which aff ects some of the seals and gaskets. The repair
kit includes parts for both old and new styles and for double air
piloted solenoid valves, therefore some parts will not be used in
the repair of the single solenoid, spring return valves.

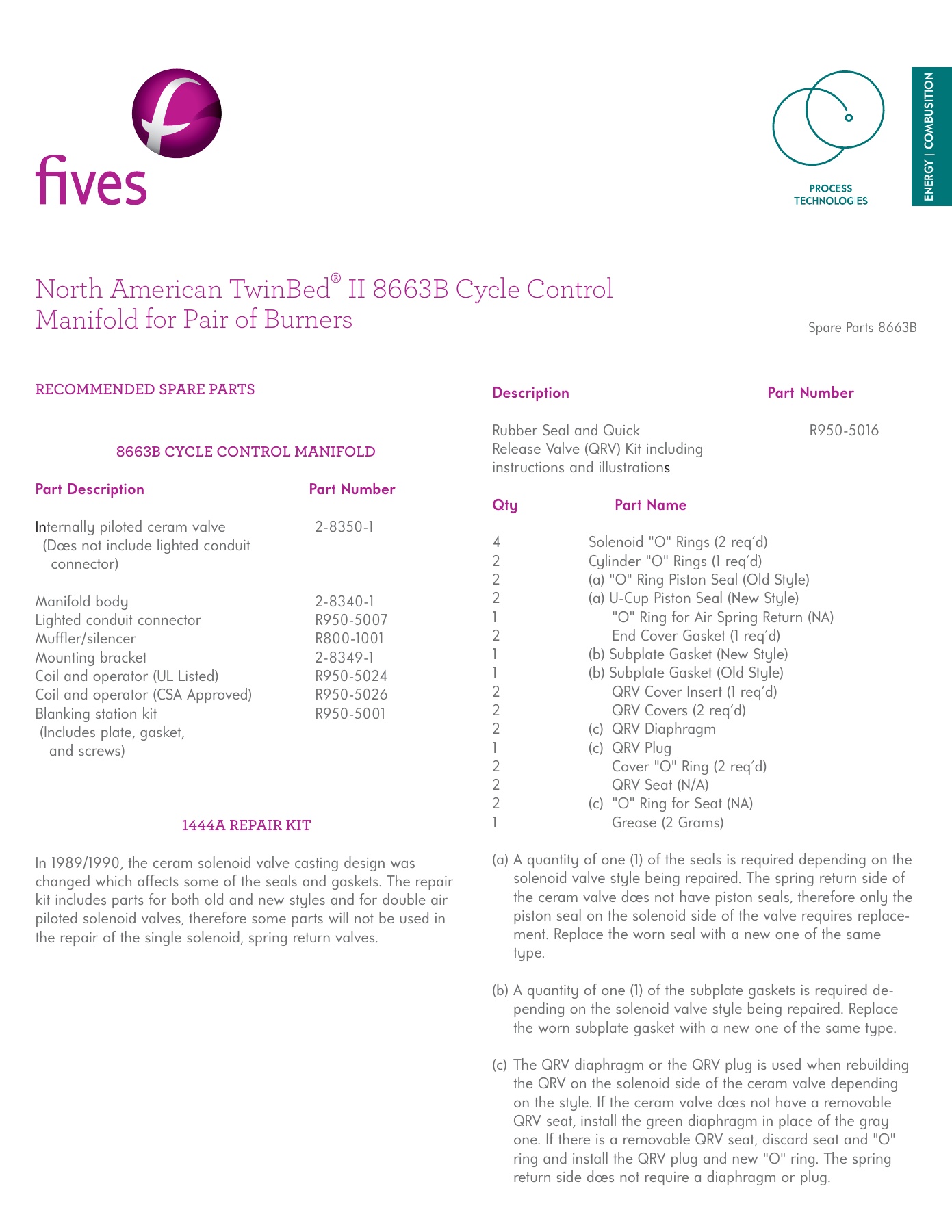

North American TwinBed® II 8663B Cycle Control
Manifold for Pair of Burners



Spare Parts 8663B

ENERG

Y | C

OMBUSITION

Catalog Combustion 2021 - Page 0649
