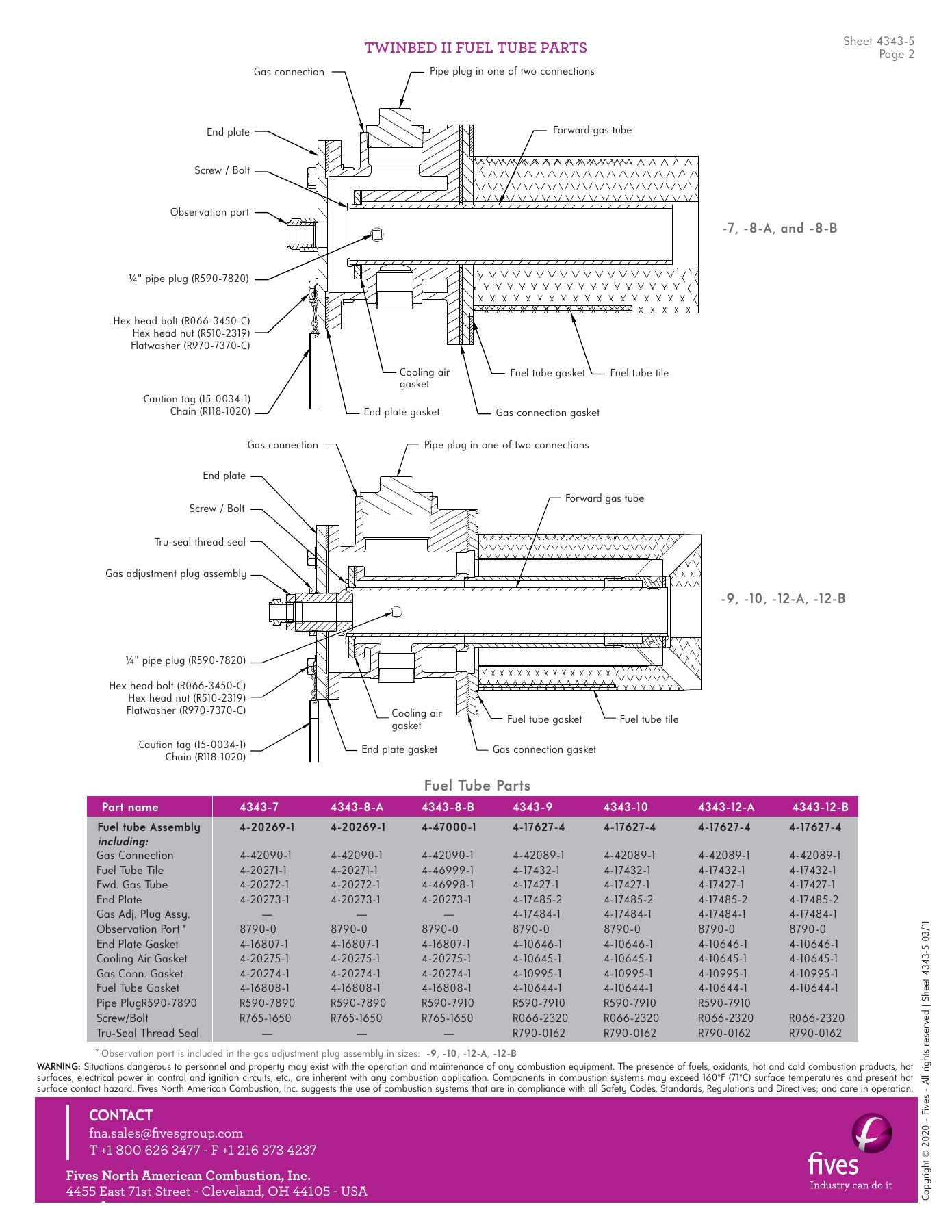

TWINBED II FUEL TUBE PARTS

Gas connection

Tru-seal thread seal

End plate

End plate gasket

Cooling air
gasket

Gas adjustment plug assembly

Screw / Bolt

Hex head bolt (R066-3450-C)

Hex head nut (R510-2319)

Flatwasher (R970-7370-C)

Gas connection gasket

Fuel tube gasket

Fuel tube tile

Forward gas tube

Caution tag (15-0034-1)

Chain (R118-1020)

¼

"

 pipe plug (R590-7820)

-9, -10, -12-A, -12-B

Pipe plug in one of two connections

Sheet 4343-5

Page 2



Part name



4343-7 4343-8-A

4343-8-B

4343-9 4343-10

4343-12-A

4343-12-B

   Fuel tube Assembly

4-20269-1

4-20269-1

4-47000-1

4-17627-4

4-17627-4

4-17627-4

4-17627-4

   including:

   Gas Connection

4-42090-1

4-42090-1

4-42090-1

4-42089-1

4-42089-1

4-42089-1

4-42089-1

   Fuel Tube Tile

4-20271-1

4-20271-1

4-46999-1

4-17432-1

4-17432-1

4-17432-1

4-17432-1

   Fwd. Gas Tube

4-20272-1

4-20272-1

4-46998-1

4-17427-1

4-17427-1

4-17427-1

4-17427-1

   End Plate

4-20273-1

4-20273-1

4-20273-1

4-17485-2

4-17485-2

4-17485-2

4-17485-2

   Gas Adj. Plug Assy.

      —

       —

      —

4-17484-1

4-17484-1

4-17484-1

4-17484-1







Observation

Port

* 8790-0 8790-0 8790-0 8790-0 8790-0  8790-0 8790-0

   End Plate Gasket

4-16807-1

4-16807-1

4-16807-1

4-10646-1

4-10646-1

4-10646-1

4-10646-1

   Cooling Air Gasket

4-20275-1

4-20275-1

4-20275-1

4-10645-1

4-10645-1

4-10645-1

4-10645-1

   Gas Conn. Gasket

4-20274-1

4-20274-1

4-20274-1

4-10995-1

4-10995-1

4-10995-1

4-10995-1

   Fuel Tube Gasket

4-16808-1

4-16808-1

4-16808-1

4-10644-1

4-10644-1

4-10644-1

4-10644-1

   Pipe Plug R590-7890  R590-7890 R590-7890 R590-7910  R590-7910  R590-7910  R590-7910
   Screw/Bolt

R765-1650

R765-1650

R765-1650

R066-2320

R066-2320

R066-2320

R066-2320

   Tru-Seal Thread Seal

      —

       —

      —

R790-0162

R790-0162

R790-0162

R790-0162



*

 Observation port is included in the gas adjustment plug assembly in sizes:

-9, -10, -12-A, -12-B

Fuel Tube Parts

Gas connection

End plate gasket

End plate

Observation port

Screw / Bolt

Fuel tube gasket

Fuel tube tile

Cooling air
gasket

Gas connection gasket

Forward gas tube

Caution tag (15-0034-1)

Chain (R118-1020)

Hex head bolt (R066-3450-C)

Hex head nut (R510-2319)

Flatwasher (R970-7370-C)

¼

"

 pipe plug (R590-7820)

Pipe plug in one of two connections

-7, -8-A, and -8-B

Cop

yr

igh

t © 2020 - F

iv

es - All r

igh

ts r

eser

ved | Shee

t 4343-5 03/11

WARNING:

Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot

surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.

Fives North American Combustion, Inc.

4455 East 71st Street - Cleveland, OH 44105 - USA

www.fi vesgroup.com

CONTACT

fna.sales@fi vesgroup.com
T +1 800 626 3477 - F +1 216 373 4237
