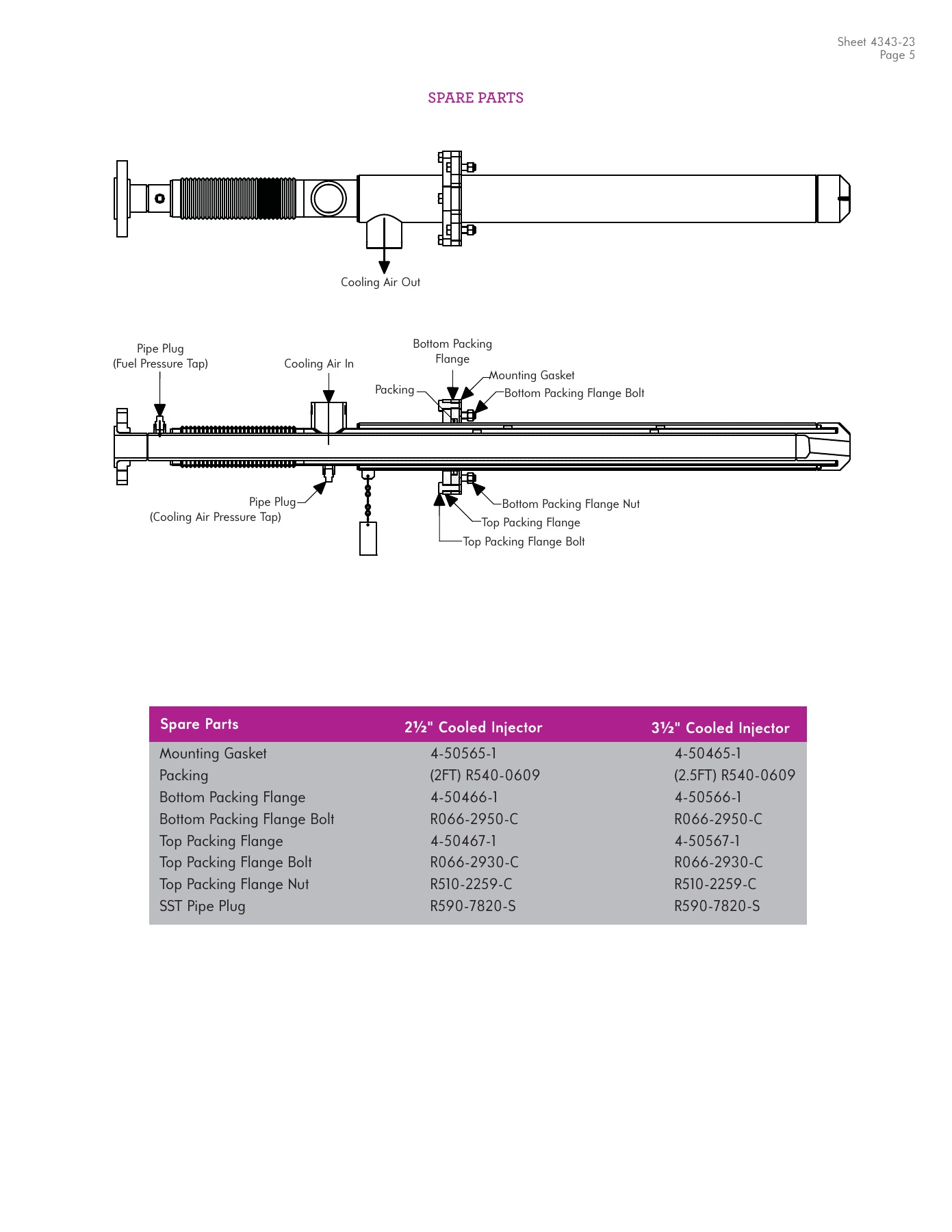

SPARE PARTS
Spare Parts
2
½
" Cooled Injector
3
½
" Cooled Injector
Mounting
Gasket
4-50565-1
4-50465-1
Packing
(2FT) R540-0609
(2.5FT) R540-0609
Bottom Packing Flange
4-50466-1
4-50566-1
Bottom Packing Flange Bolt
R066-2950-C
R066-2950-C
Top Packing Flange
4-50467-1
4-50567-1
Top Packing Flange Bolt
R066-2930-C
R066-2930-C
Top Packing Flange Nut
R510-2259-C
R510-2259-C
SST Pipe Plug
R590-7820-S
R590-7820-S
Cooling Air Out
Cooling Air In
Bottom Packing
Flange
Mounting Gasket
Bottom Packing Flange Bolt
Bottom Packing Flange Nut
Top Packing Flange
Top Packing Flange Bolt
Pipe Plug
(Cooling Air Pressure Tap)
Packing
Pipe Plug
(Fuel Pressure Tap)
Sheet 4343-23
Page 5
