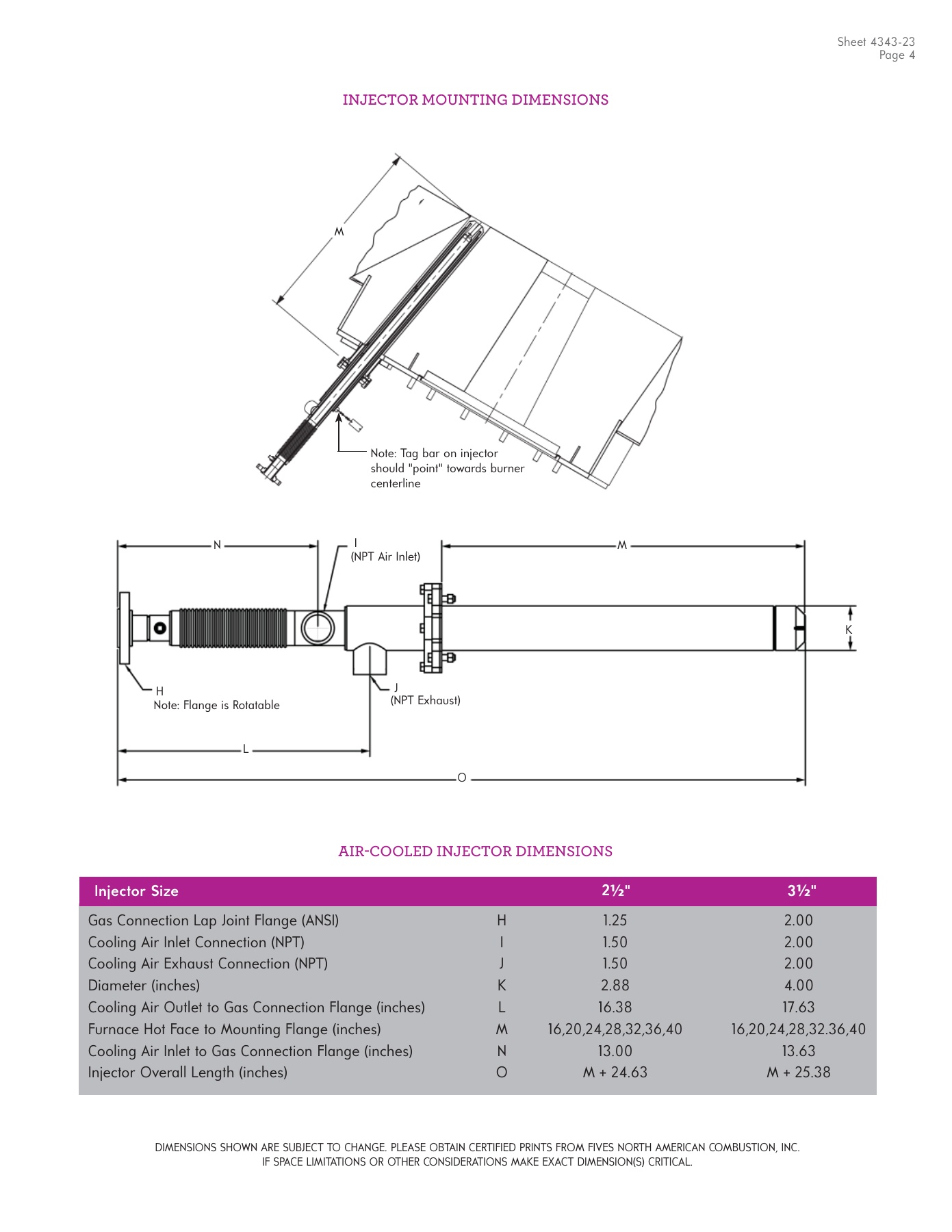

INJECTOR MOUNTING DIMENSIONS

AIR-COOLED INJECTOR DIMENSIONS

2

½

"

Injector Size

3

½

"

  Gas Connection Lap Joint Flange (ANSI)

H

1.25

2.00

  Cooling Air Inlet Connection (NPT)

I

1.50

2.00

  Cooling Air Exhaust Connection (NPT)

J

1.50

2.00

 Diameter (inches)

K

2.88

4.00

  Cooling Air Outlet to Gas Connection Flange (inches)

L

16.38

17.63

  Furnace Hot Face to Mounting Flange (inches)

M

16,20,24,28,32,36,40

16,20,24,28,32.36,40

  Cooling Air Inlet to Gas Connection Flange (inches)

N

13.00

13.63

  Injector Overall Length (inches)

O

M + 24.63

M + 25.38

M

N

H

Note: Flange is Rotatable

(NPT Exhaust)

(NPT Air Inlet)

L

O

K

J

I

M

DIMENSIONS SHOWN ARE SUBJECT TO CHANGE. PLEASE OBTAIN CERTIFIED PRINTS FROM FIVES NORTH AMERICAN COMBUSTION, INC.

IF SPACE LIMITATIONS OR OTHER CONSIDERATIONS MAKE EXACT DIMENSION(S) CRITICAL.

Note: Tag bar on injector
should "point" towards burner
centerline
