Mounting
plate supplied
separately
by North American
Slide gate gasket
Media fi lling
chute (optional)
Pilot UV adapter
assembly
Pilot UV adapter
assembly gasket
Fuel tube
assemlby
Fuel tube
assembly gasket
Backplate seal
Media access
door
Media access
door seal
Air/exhaust
fl ange gasket
Plenum seal
(2 reqd)
Regenerator seal
UV connection
gasket
UV connection
fl ange
Slide gate
Slide gate
bottom fl ange

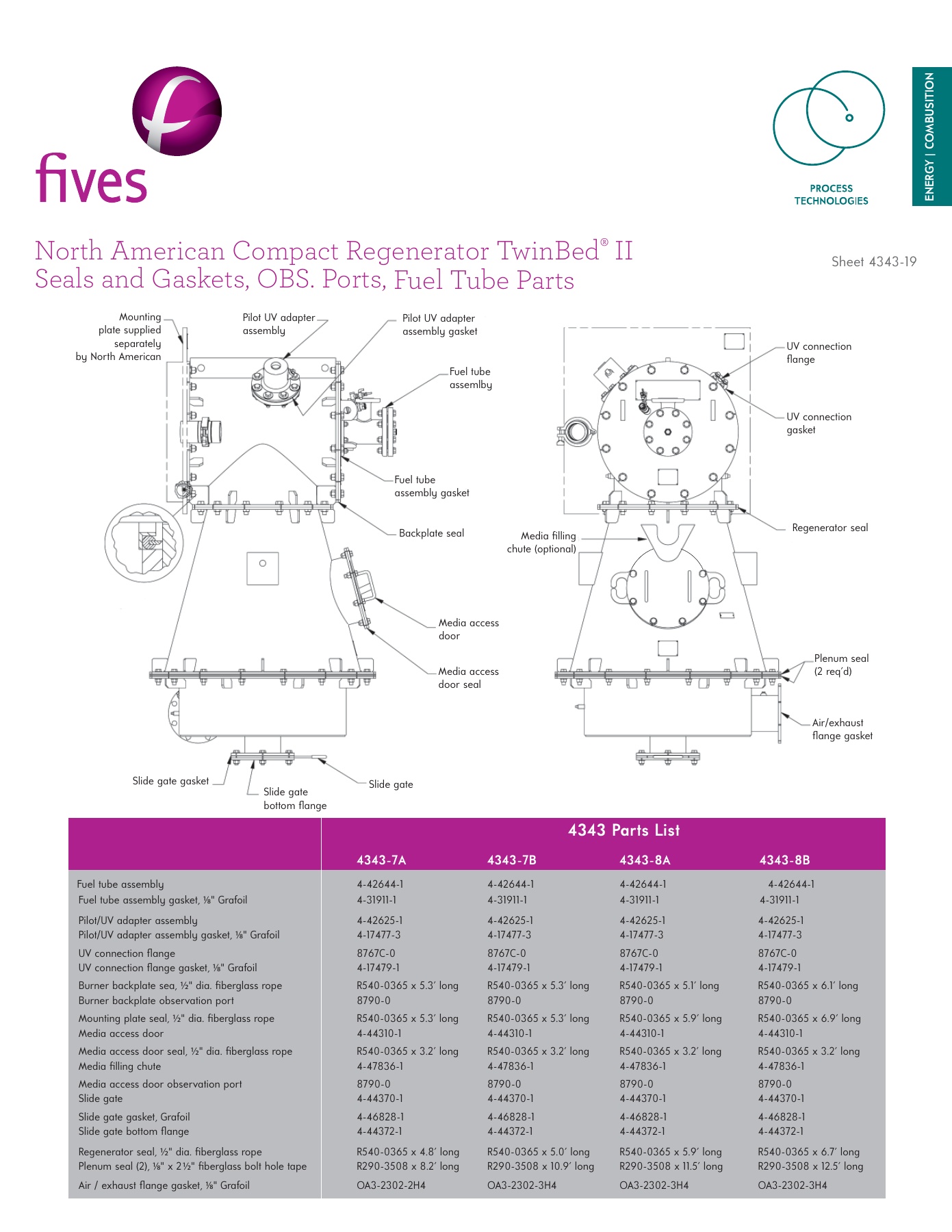

North American Compact Regenerator TwinBed
®
II
Seals and Gaskets, OBS. Ports, Fuel Tube Parts
Sheet 4343-19
4343 Parts List
4343-7A
4343-7B
4343-8A
4343-8B
Fuel tube assembly
4-42644-1
4-42644-1
4-42644-1
4-42644-1
Fuel tube assembly gasket,
1⁄8
" Grafoil
4-31911-1
4-31911-1
4-31911-1
4-31911-1
Pilot/UV adapter assembly
4-42625-1
4-42625-1
4-42625-1
4-42625-1
Pilot/UV adapter assembly gasket,
1⁄8
" Grafoil
4-17477-3
4-17477-3
4-17477-3
4-17477-3
UV connection fl ange
8767C-0
8767C-0
8767C-0
8767C-0
UV connection fl ange gasket,
1⁄8
" Grafoil
4-17479-1
4-17479-1
4-17479-1
4-17479-1
Burner backplate sea,
½
" dia. fi berglass rope
R540-0365 x 5.3 long
R540-0365 x 5.3 long
R540-0365 x 5.1 long
R540-0365 x 6.1 long
Burner backplate observation port
8790-0
8790-0
8790-0
8790-0
Mounting plate seal,
½
" dia. fi berglass rope
R540-0365 x 5.3 long
R540-0365 x 5.3 long
R540-0365 x 5.9 long
R540-0365 x 6.9 long
Media access door
4-44310-1
4-44310-1
4-44310-1
4-44310-1
Media access door seal,
½
" dia. fi berglass rope
R540-0365 x 3.2 long
R540-0365 x 3.2 long
R540-0365 x 3.2 long
R540-0365 x 3.2 long
Media fi lling chute
4-47836-1
4-47836-1
4-47836-1
4-47836-1
Media access door observation port
8790-0
8790-0
8790-0
8790-0
Slide gate
4-44370-1
4-44370-1
4-44370-1
4-44370-1
Slide gate gasket, Grafoil
4-46828-1
4-46828-1
4-46828-1
4-46828-1
Slide gate bottom fl ange
4-44372-1
4-44372-1
4-44372-1
4-44372-1
Regenerator seal,
½
" dia. fi berglass rope
R540-0365 x 4.8 long
R540-0365 x 5.0 long
R540-0365 x 5.9 long
R540-0365 x 6.7 long
Plenum seal (2),
1⁄8
" x 2
½
" fi berglass bolt hole tape
R290-3508 x 8.2 long
R290-3508 x 10.9 long
R290-3508 x 11.5 long
R290-3508 x 12.5 long
Air / exhaust fl ange gasket,
1⁄8
" Grafoil
OA3-2302-2H4
OA3-2302-3H4
OA3-2302-3H4
OA3-2302-3H4
