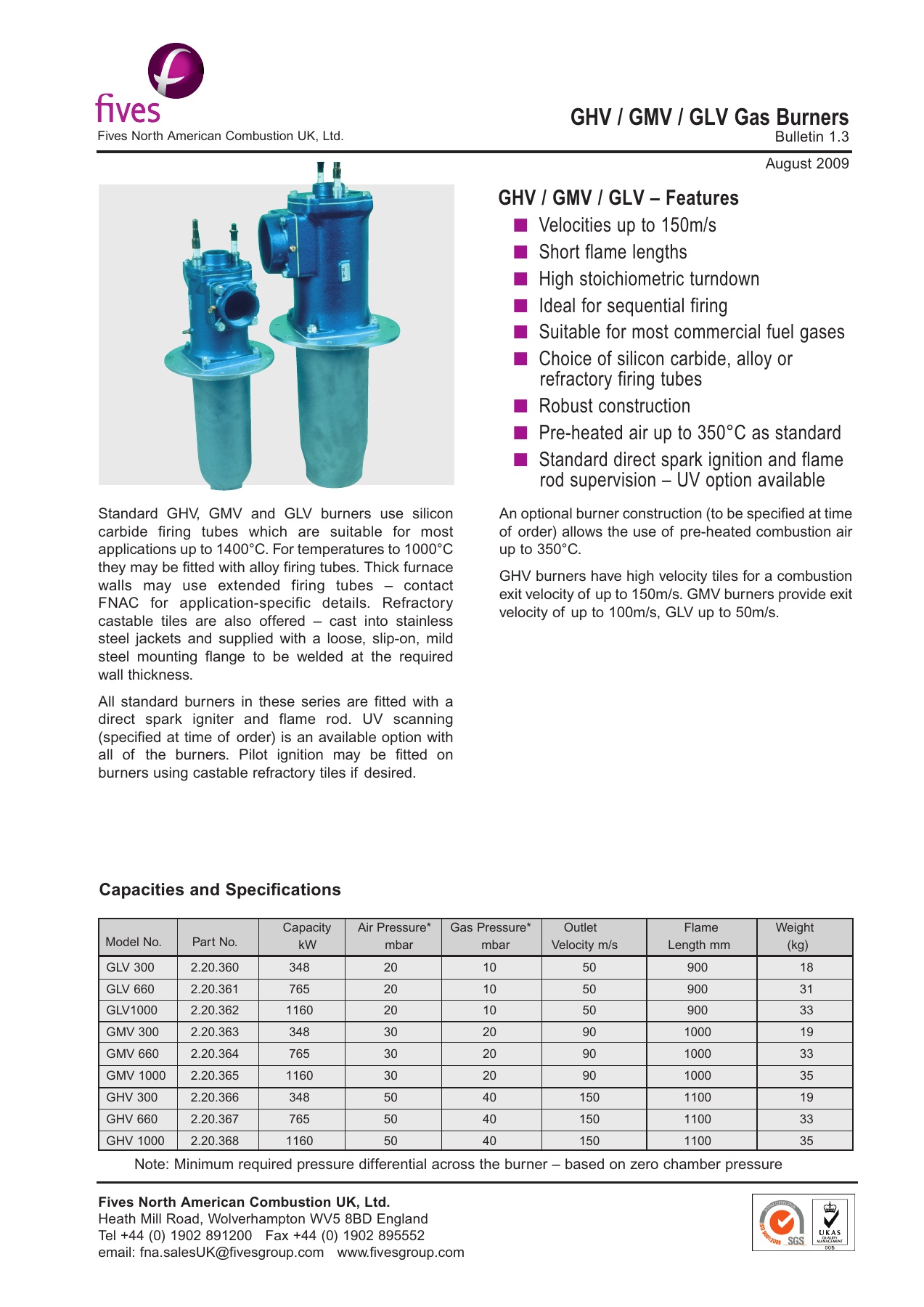

GHV / GMV / GLV Gas Burners

Bulletin 1.3

August 2009

Standard GHV, GMV and GLV burners use silicon
carbide firing tubes which are suitable for most
applications up to 1400°C. For temperatures to 1000°C
they may be fitted with alloy firing tubes. Thick furnace
walls may use extended firing tubes – contact
FNAC for application-specific details. Refractory
castable tiles are also offered – cast into stainless
steel jackets and supplied with a loose, slip-on, mild
steel mounting flange to be welded at the required
wall thickness.

All standard burners in these series are fitted with a
direct spark igniter and flame rod. UV scanning
(specified at time of order) is an available option with
all of the burners. Pilot ignition may be fitted on
burners using castable refractory tiles if desired.

GHV / GMV / GLV – Features

I

Velocities up to 150m/s

I

Short flame lengths

I

High stoichiometric turndown

I

Ideal for sequential firing

I

Suitable for most commercial fuel gases

I

Choice of silicon carbide, alloy or

refractory firing tubes

I

Robust construction

I

Pre-heated air up to 350°C as standard

I

Standard direct spark ignition and flame

rod supervision – UV option available

An optional burner construction (to be specified at time
of order) allows the use of pre-heated combustion air
up to 350°C.

GHV burners have high velocity tiles for a combustion
exit velocity of up to 150m/s. GMV burners provide exit
velocity of up to 100m/s, GLV up to 50m/s.

GLV 300

2.20.360

348

20

10

50

900

18

GLV 660

2.20.361

765

20

10

50

900

31

GLV1000

2.20.362

1160

20

10

50

900

33

GMV 300

2.20.363

348

30

20

90

1000

19

GMV 660

2.20.364

765

30

20

90

1000

33

GMV 1000

2.20.365

1160

30

20

90

1000

35

GHV 300

2.20.366

348

50

40

150

1100

19

GHV 660

2.20.367

765

50

40

150

1100

33

GHV 1000

2.20.368

1160

50

40

150

1100

35

Note: Minimum required pressure differential across the burner – based on zero chamber pressure

Capacity

Air Pressure*

Gas Pressure*

Outlet

Flame

Weight

Model No.

Part No.

kW

mbar

mbar

Velocity m/s

Length mm

(kg)

Capacities and Specifications

Fives North American Combustion UK, Ltd.

Fives



North



American



Combustion



UK,



Ltd.

Heath



Mill



Road,



Wolverhampton



WV5



8BD



England

Tel



+44



(0)



1902



891200



Fax



+44



(0)



1902



895552

email:



fna.salesUK@fivesgroup.com



www.fivesgroup.com
