Page 4
Bulletin 1.1

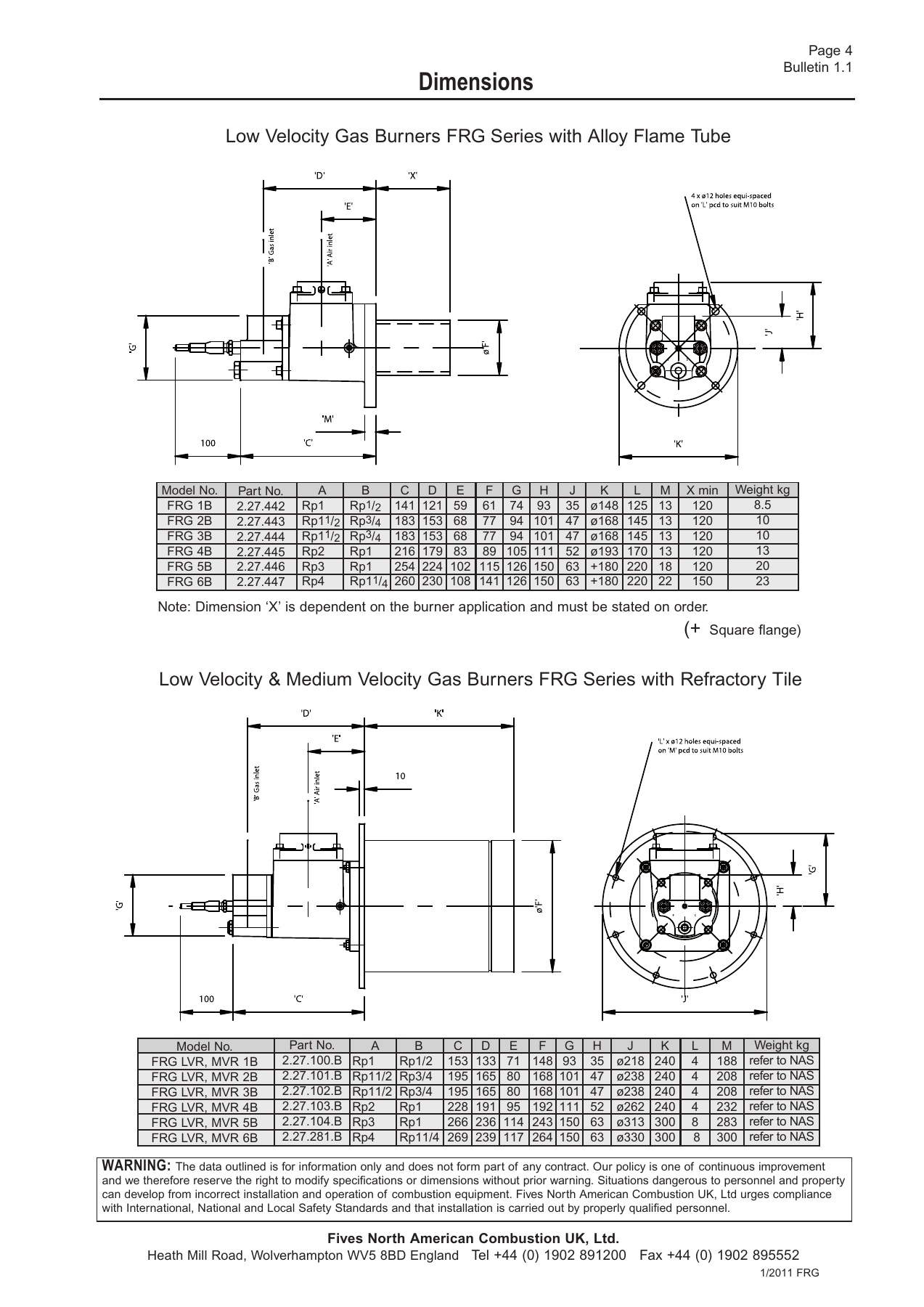

Dimensions
WARNING:
The data outlined is for information only and does not form part of any contract. Our policy is one of continuous improvement
and we therefore reserve the right to modify specifications or dimensions without prior warning. Situations dangerous to personnel and property
can develop from incorrect installation and operation of combustion equipment. Fives North American Combustion UK, Ltd urges compliance
with International, National and Local Safety Standards and that installation is carried out by properly qualified personnel.
Low Velocity Gas Burners FRG Series with Alloy Flame Tube
Note: Dimension ‘X’ is dependent on the burner application and must be stated on order.
(+
Square flange)
Low Velocity & Medium Velocity Gas Burners FRG Series with Refractory Tile
Part No.
2.27.442
2.27.443
2.27.444
2.27.445
2.27.446
2.27.447
Model No.
FRG 1B
FRG 2B
FRG 3B
FRG 4B
FRG 5B
FRG 6B
Weight kg
8.5
10
10
13
20
23
A
Rp1
Rp1
1
/
2
Rp1
1
/
2
Rp2
Rp3
Rp4
B
Rp
1
/
2
Rp
3
/
4
Rp
3
/
4
Rp1
Rp1
Rp1
1
/
4
D
121
153
153
179
224
230
C
141
183
183
216
254
260
E
59
68
68
83
102
108
F
61
77
77
89
115
141
G
74
94
94
105
126
126
H
93
101
101
111
150
150
J
35
47
47
52
63
63
K
ø148
ø168
ø168
ø193
+180
+180
L
125
145
145
170
220
220
M
13
13
13
13
18
22
X min
120
120
120
120
120
150
Model No.
FRG LVR, MVR 1B
FRG LVR, MVR 2B
FRG LVR, MVR 3B
FRG LVR, MVR 4B
FRG LVR, MVR 5B
FRG LVR, MVR 6B
Part No.
2.27.100.B
2.27.101.B
2.27.102.B
2.27.103.B
2.27.104.B
2.27.281.B
Weight kg
refer to NAS
refer to NAS
refer to NAS
refer to NAS
refer to NAS
refer to NAS
A
Rp1
Rp11/2
Rp11/2
Rp2
Rp3
Rp4
B
Rp1/2
Rp3/4
Rp3/4
Rp1
Rp1
Rp11/4
C
153
195
195
228
266
269
D
133
165
165
191
236
239
E
71
80
80
95
114
117
F
148
168
168
192
243
264
G
93
101
101
111
150
150
H
35
47
47
52
63
63
J
ø218
ø238
ø238
ø262
ø313
ø330
K
240
240
240
240
300
300
L
4
4
4
4
8
8
M
188
208
208
232
283
300
