Dimensions
Fives North American Combustion UK, Ltd.
Heath Mill Road, Wolverhampton WV5 8BD England
Tel +44 (0) 1902 891200
Fax +44 (0) 1902 895552
1/2011
FRG
Page 3
Bulletin 1.1

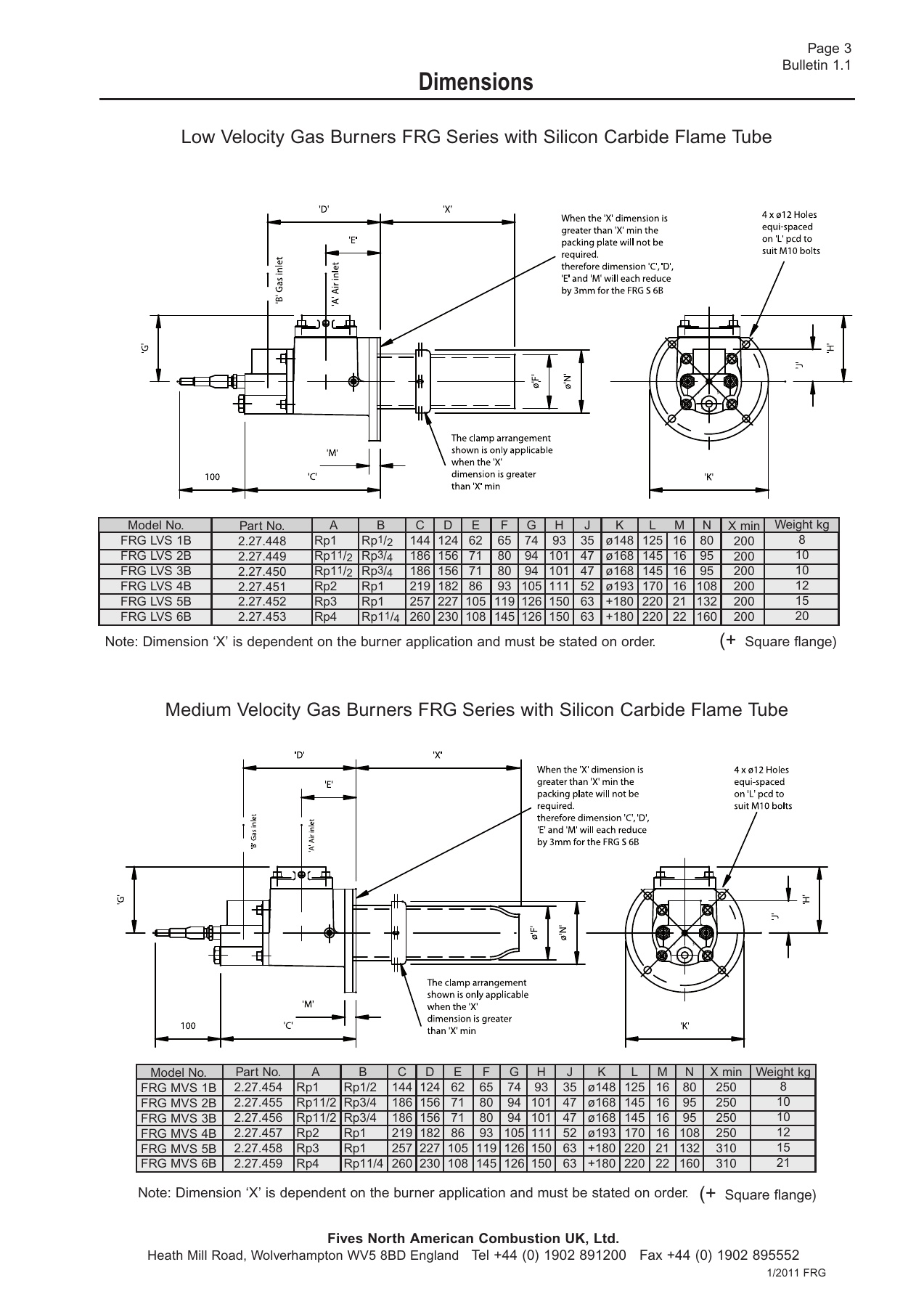

Low Velocity Gas Burners FRG Series with Silicon Carbide Flame Tube
Medium Velocity Gas Burners FRG Series with Silicon Carbide Flame Tube
Note: Dimension ‘X’ is dependent on the burner application and must be stated on order.
(+
Square flange)
Note: Dimension ‘X’ is dependent on the burner application and must be stated on order.
(+
Square flange)
Model No.
FRG LVS 1B
FRG LVS 2B
FRG LVS 3B
FRG LVS 4B
FRG LVS 5B
FRG LVS 6B
Part No.
2.27.448
2.27.449
2.27.450
2.27.451
2.27.452
2.27.453
Weight kg
8
10
10
12
15
20
A
Rp1
Rp1
1
/
2
Rp1
1
/
2
Rp2
Rp3
Rp4
B
Rp
1
/
2
Rp
3
/
4
Rp
3
/
4
Rp1
Rp1
Rp1
1
/
4
C
144
186
186
219
257
260
D
124
156
156
182
227
230
E
62
71
71
86
105
108
F
65
80
80
93
119
145
G
74
94
94
105
126
126
H
93
101
101
111
150
150
J
35
47
47
52
63
63
K
ø148
ø168
ø168
ø193
+180
+180
L
125
145
145
170
220
220
M
16
16
16
16
21
22
N
80
95
95
108
132
160
X min
200
200
200
200
200
200
Model No.
FRG MVS 1B
FRG MVS 2B
FRG MVS 3B
FRG MVS 4B
FRG MVS 5B
FRG MVS 6B
Part No.
2.27.454
2.27.455
2.27.456
2.27.457
2.27.458
2.27.459
Weight kg
8
10
10
12
15
21
A
Rp1
Rp11/2
Rp11/2
Rp2
Rp3
Rp4
B
Rp1/2
Rp3/4
Rp3/4
Rp1
Rp1
Rp11/4
C
144
186
186
219
257
260
D
124
156
156
182
227
230
E
62
71
71
86
105
108
F
65
80
80
93
119
145
G
74
94
94
105
126
126
H
93
101
101
111
150
150
J
35
47
47
52
63
63
K
ø148
ø168
ø168
ø193
+180
+180
L
125
145
145
170
220
220
M
16
16
16
16
21
22
N
80
95
95
108
132
160
X min
250
250
250
250
310
310
