WARNING:
Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot
surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
Description
4988-1000 4988-2500
4988-4000
4988-6000
4988-9000
&
legs
4-5398-2
4-5487-2
4-5452-2
4-5452-2
4-5752-1
Flame
cone
4-5427-1
4-5471-1
4-5486-1
4-5465-1
4-5760-2
Flame
rod
4-5497-1
4-5497-2
4-5497-3
4-5497-3
n/a
Ignition
cable
&
igniter assembly
4-28010-1
4-28010-2
4-28010-3
4-28010-3
n/a
Ignition cable (5 long)
4-5563-3
4-5563-3
4-5563-3
4-5563-3
4-5563-3
Low
fi re gas valve
R930-9873
R930-9873
R930-9873
R930-9873
R930-9873
Spark
igniter*
4-5635-1
4-5635-1
4-5635-1
4-5635-1
4-5635-1
Air tube (natural gas)
4-5413-1
4-5463-1
4-5448-1
4-5448-1
4-5845-1
Air tube (propane)
4-5949-1
4-5548-1
4-5513-1
4-5513-1
4-5845-1
Air tube (butane)
4-5725-1
4-5680-1
4-5704-1
4-5704-1
4-5845-1
Low pressure 4988- -L
Blower assembly including motor (-L)
4-5551-1
4-5551-2
4-5551-3
4-5551-4
4-5803-5
Blower motor 230/460/3/60 (-L)
N.33-B36T2SF T1.0-B36T2SF
T1.0-C18T2SF T1.5-B18T2SF
T3.0-C36T2SF
XXXXXXXXXX
190/380/3/50
Blower impeller (-L)
R340-5152
R340-5170
R340-5162
R340-5165
R340-5171
High pressure 4988- -H
Blower assembly including motor (-H)
4-5803-1
4-5803-2
4-5803-3
4-5803-4
n/a
Blower motor 230/460/3/60 (-H)
T.50-B36T2SF T2.0-B36T2SF
T3.0-C36T2SF
T3.0-C36T2SF n/a
XXXXXXXXXXX
190/380/3/50
Blower impeller (-H)
R340-5157
R340-5160
R340-5161
R340-5171
n/a

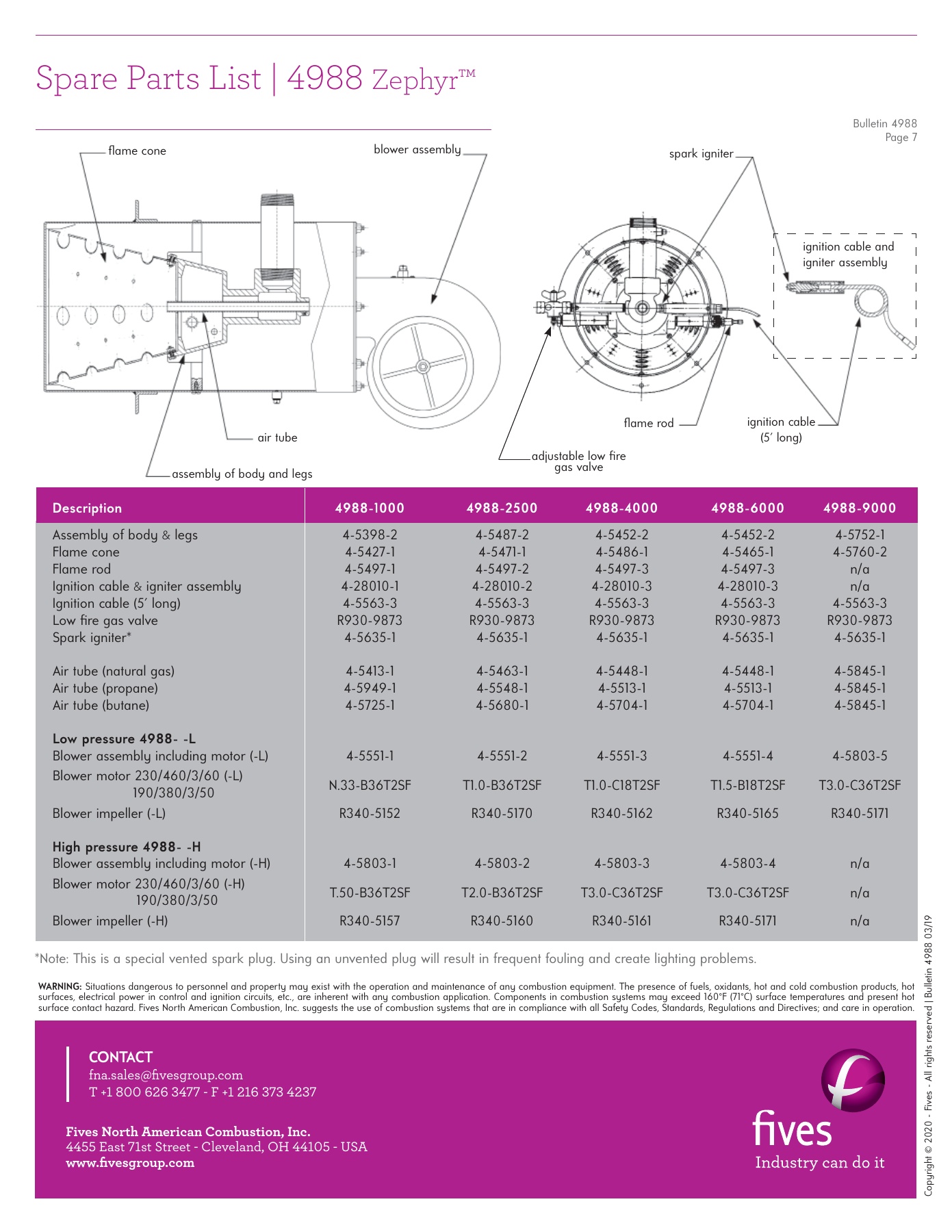

Spare Parts List | 4988
Zephyr™
ignition cable and
igniter assembly
ignition cable
(5 long)
fl ame rod
adjustable low fi re
gas valve
spark igniter
blower assembly
fl ame cone
air tube
Bulletin 4988
Page 7
*Note: This is a special vented spark plug. Using an unvented plug will result in frequent fouling and create lighting problems.
