Part Name
4841–8–A 4841–8–B
Air Orifi ce
OA4-0995-1
OA4-0996-1
Air Connection Gasket (2 reqd.)
OA4-1059-1
OA4-1059-1
Air
Diff user Block
OA4-1057-2
–
Backplate
OB4-0851-1
OB4-0851-1
Body
OC4-0853-1 OC4-0853-2
Cover Plate
OD4-2392-1
OD4-2392-1
Diff user Cup
OB4-0854-3
OB4-0854-3
Gas Tube Assembly
OA4-0998-1
OA4-0998-2
Hanger Rod Assembly
OA4-0399-1
OA4-0399-1
Main Air Flange
8765-8
7-D
8765-8
7-D
Observation Port
8790-0
8790-0
Tile
OC4-2800-1
OC4-2800-1

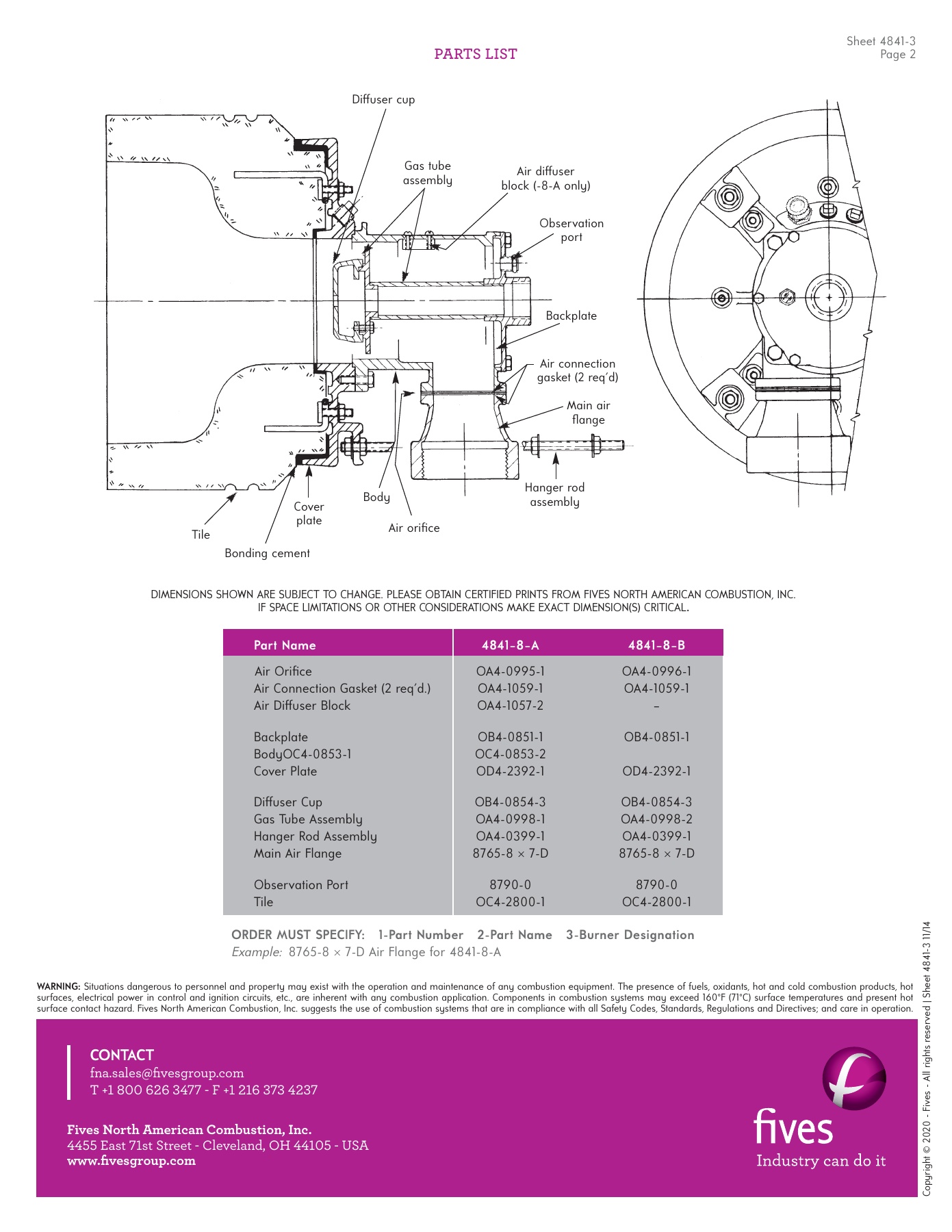

PARTS LIST
Diff user cup
Gas tube
assembly
Hanger rod
assembly
Observation
port
Main air
fl ange
Air orifi ce
Body
Cover
plate
Tile
ORDER MUST SPECIFY: 1-Part Number 2-Part Name 3-Burner Designation
Example:
8765-8
7-D Air Flange for 4841-8-A
Bonding cement
Sheet 4841-3
Page 2
Air diff user
block (-8-A only)
Air connection
gasket (2 reqd)
Backplate
DIMENSIONS SHOWN ARE SUBJECT TO CHANGE. PLEASE OBTAIN CERTIFIED PRINTS FROM FIVES NORTH AMERICAN COMBUSTION, INC.
IF SPACE LIMITATIONS OR OTHER CONSIDERATIONS MAKE EXACT DIMENSION(S) CRITICAL
.
Cop
yr
igh
t © 2020 - F
iv
es - All r
igh
ts r
eser
ved | Shee
t 4841-3 11/14
