26 dia.

A

 - Air Inlet

2

1⁄16

1

" dia. 12 holes

equally spaced

on 24 BC

¾

 NPT Pilot,

Flame Detector†,

and Obs. Port

(3 holes)

B

 - Gas

Inlet

C

4

¼

20

dia.

3⁄8

D

Observation

Port

22

½

°

22

½

°

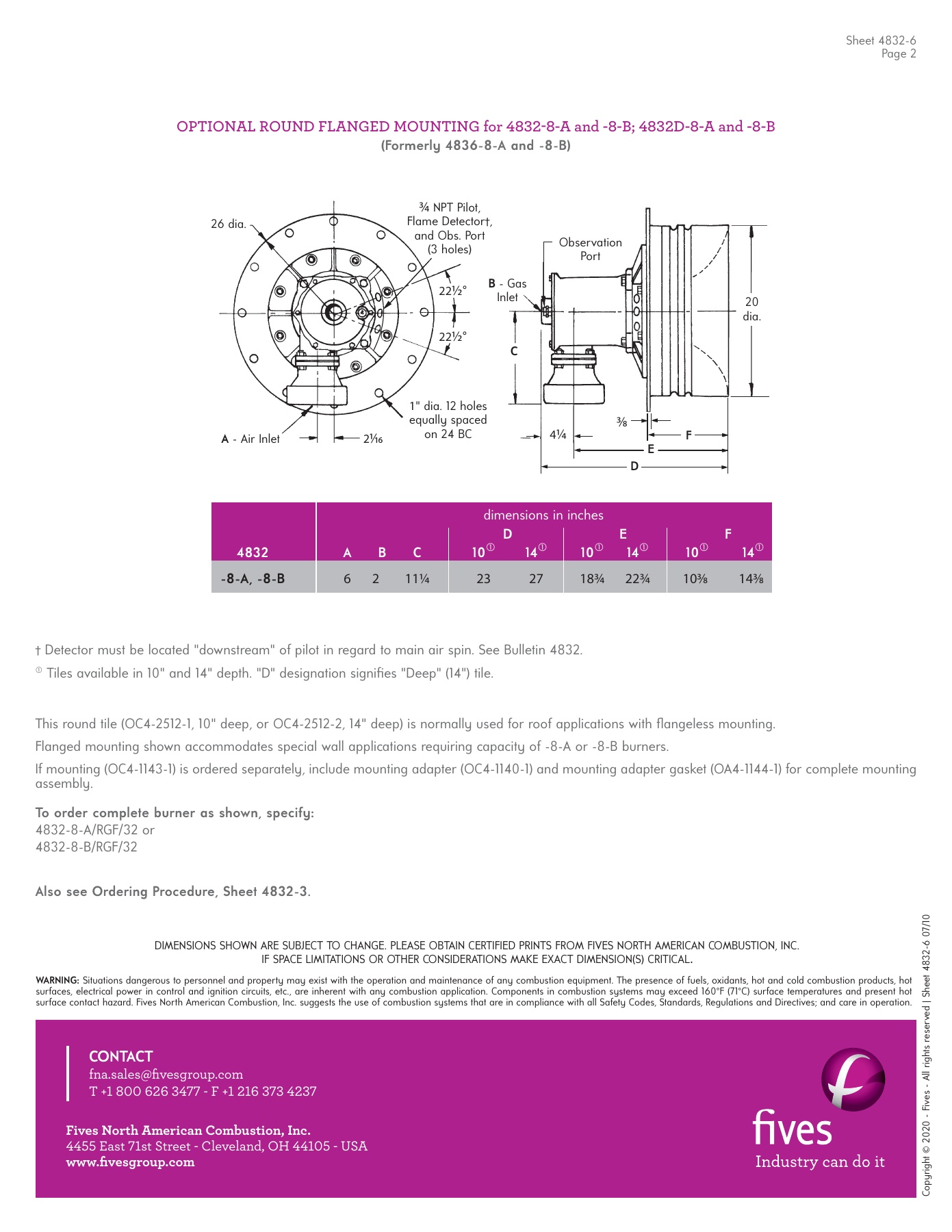

OPTIONAL ROUND FLANGED MOUNTING for 4832-8-A and -8-B; 4832D-8-A and -8-B

(Formerly 4836-8-A and -8-B)

This round tile (OC4-2512-1, 10" deep, or OC4-2512-2, 14" deep) is normally used for roof applications with fl angeless mounting.

Flanged mounting shown accommodates special wall applications requiring capacity of -8-A or -8-B burners.

If mounting (OC4-1143-1) is ordered separately, include mounting adapter (OC4-1140-1) and mounting adapter gasket (OA4-1144-1) for complete mounting
assembly.

To order complete burner as shown, specify:

4832-8-A/RGF/32 or
4832-8-B/RGF/32

Also see Ordering Procedure, Sheet 4832-3.

Sheet 4832-6

Page 2

† Detector must be located "downstream" of pilot in regard to main air spin. See Bulletin 4832.





















4832 A

10

 14

 10

 14

 10

 14



 -8-A,

-8-B

6 2

1

/

2

 11¼

23

27



18¾    22¾

103⁄8

6

 143⁄8

6





dimensions in inches

 Tiles available in 10" and 14" depth. "D" designation signifi es "Deep" (14") tile.

 D

F



E

F

Cop

yr

igh

t © 2020 - F

iv

es - All r

igh

ts r

eser

ved | Shee

t 4832-6 07/10

WARNING:

Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot

surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.

DIMENSIONS SHOWN ARE SUBJECT TO CHANGE. PLEASE OBTAIN CERTIFIED PRINTS FROM FIVES NORTH AMERICAN COMBUSTION, INC.

IF SPACE LIMITATIONS OR OTHER CONSIDERATIONS MAKE EXACT DIMENSION(S) CRITICAL

.

Fives North American Combustion, Inc.

4455 East 71st Street - Cleveland, OH 44105 - USA

www.fi vesgroup.com

CONTACT

fna.sales@fi vesgroup.com
T +1 800 626 3477 - F +1 216 373 4237

Catalog Combustion 2021 - Page 0509
