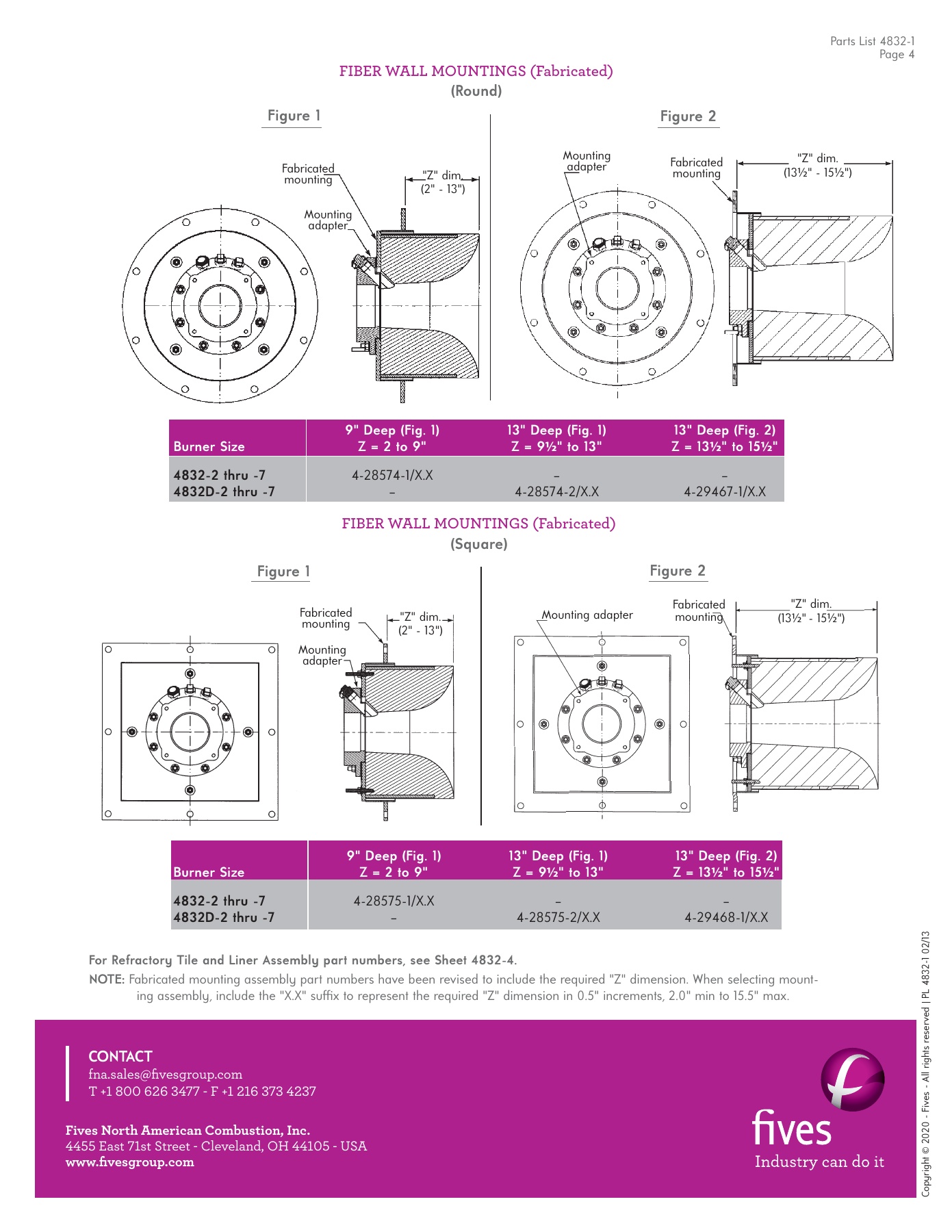

Parts List 4832-1

Page 4

Figure 1

Figure 2

"Z" dim.

(2" - 13")

Fabricated

mounting

Mounting

adapter

Mounting adapter

"Z" dim.

(13

½

"



- 15

½

")

Fabricated

mounting

FIBER WALL MOUNTINGS (Fabricated)

(Square)

Figure 1

Figure 2

"Z" dim.

(2" - 13")

Fabricated

mounting

Mounting

adapter

"Z" dim.

(13

½

" - 15

½

")

Fabricated

mounting

Mounting

adapter

FIBER WALL MOUNTINGS (Fabricated)

(Round)





9" Deep (Fig. 1)

13" Deep (Fig. 1)

13" Deep (Fig. 2)

 Burner Size

Z = 2 to 9"

Z = 9

½

" to 13"

Z = 13

½

" to 15

½

"

 4832-2 thru -7

 4-28574-1/X.X

–

 4832D-2 thru -7

– 4-28574-2/X.X

4-29467-1/X.X





9" Deep (Fig. 1)

13" Deep (Fig. 1)

13" Deep (Fig. 2)

 Burner Size

Z = 2 to 9"

Z = 9

½

" to 13"

Z = 13

½

" to 15

½

"

 4832-2 thru -7

 4-28575-1/X.X

–

4832D-2 thru -7

 –  4-28575-2/X.X

4-29468-1/X.X

For Refractory Tile and Liner Assembly part numbers, see Sheet 4832-4.
NOTE:

 Fabricated mounting assembly part numbers have been revised to include the required "Z" dimension. When selecting mount-



            ing assembly, include the "X.X" suffi

  x to represent the required "Z" dimension in 0.5" increments, 2.0" min to 15.5" max.

Cop

yr

igh

t © 2020 - F

iv

es - All r

igh

ts r

eser

ved | PL 4832-1 02/13

Fives North American Combustion, Inc.

4455 East 71st Street - Cleveland, OH 44105 - USA

www.fi vesgroup.com

CONTACT

fna.sales@fi vesgroup.com
T +1 800 626 3477 - F +1 216 373 4237
