Parts List 4832-1

Page 3

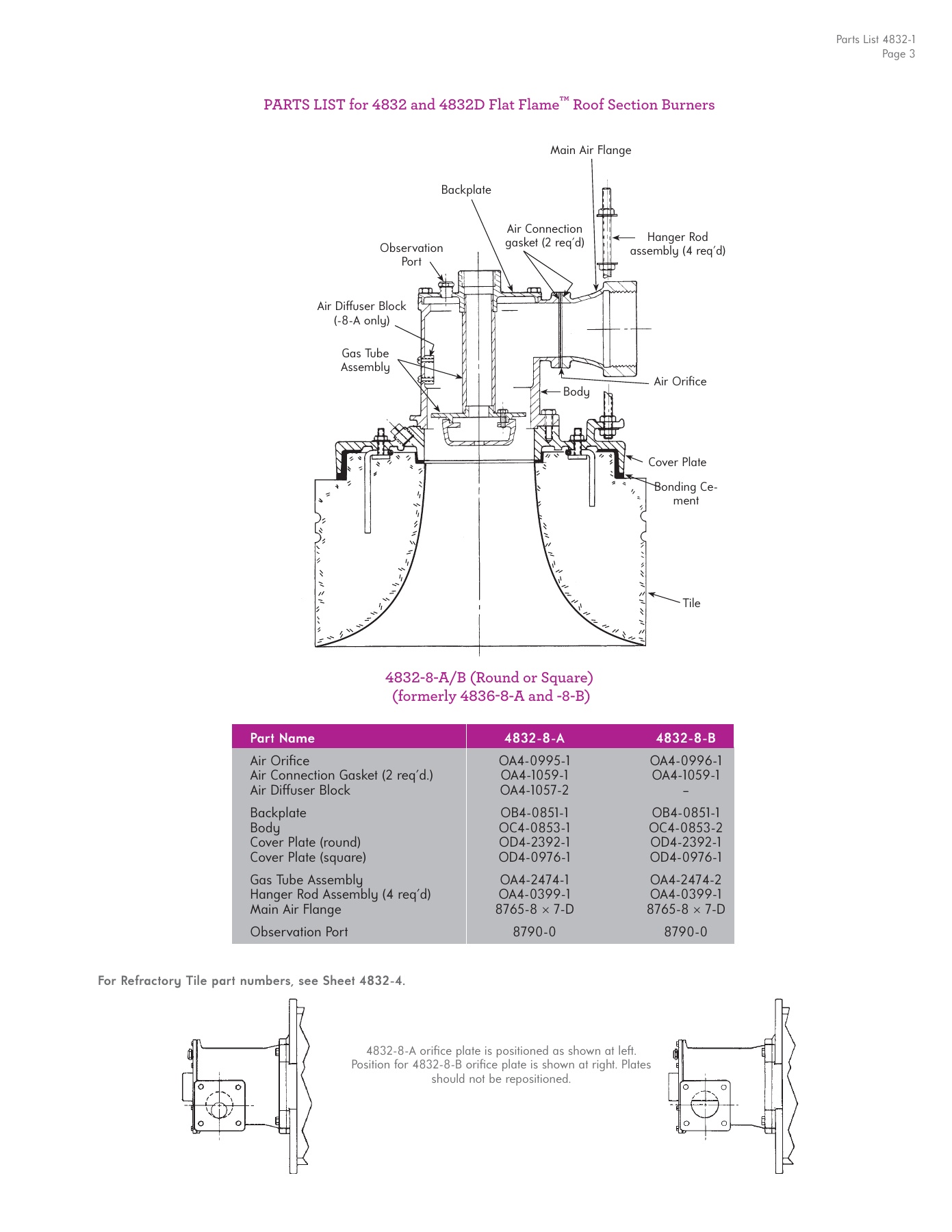

PARTS LIST for 4832 and 4832D Flat Flame™ Roof Section Burners

Body

Air Orifi ce

Cover Plate

Bonding Ce-

ment

Tile

Gas Tube

Assembly

Air Diff user Block

(-8-A only)

Observation

Port

Backplate

Main Air Flange

Air Connection

gasket (2 reqd)

4832-8-A orifi ce plate is positioned as shown at left .

Position for 4832-8-B orifi ce plate is shown at right. Plates

should not be repositioned.



Part Name

4832-8-A

4832-8-B

 Air

Orifi ce

OA4-0995-1

OA4-0996-1



Air Connection Gasket (2 reqd.)

OA4-1059-1

OA4-1059-1

 Air

Diff user Block

OA4-1057-2









 Backplate

OB4-0851-1

OB4-0851-1

 Body

OC4-0853-1

OC4-0853-2



Cover Plate (round)

OD4-2392-1

OD4-2392-1



Cover Plate (square)

OD4-0976-1

OD4-0976-1







Gas Tube Assembly

OA4-2474-1

OA4-2474-2



Hanger Rod Assembly (4 reqd)

OA4-0399-1

OA4-0399-1



Main Air Flange

8765-8

 7-D

8765-8

 7-D







 Observation

Port  8790-0

8790-0



For Refractory Tile part numbers, see Sheet 4832-4.

Hanger Rod

assembly (4 reqd)

4832-8-A/B (Round or Square)

 (formerly 4836-8-A and -8-B)
