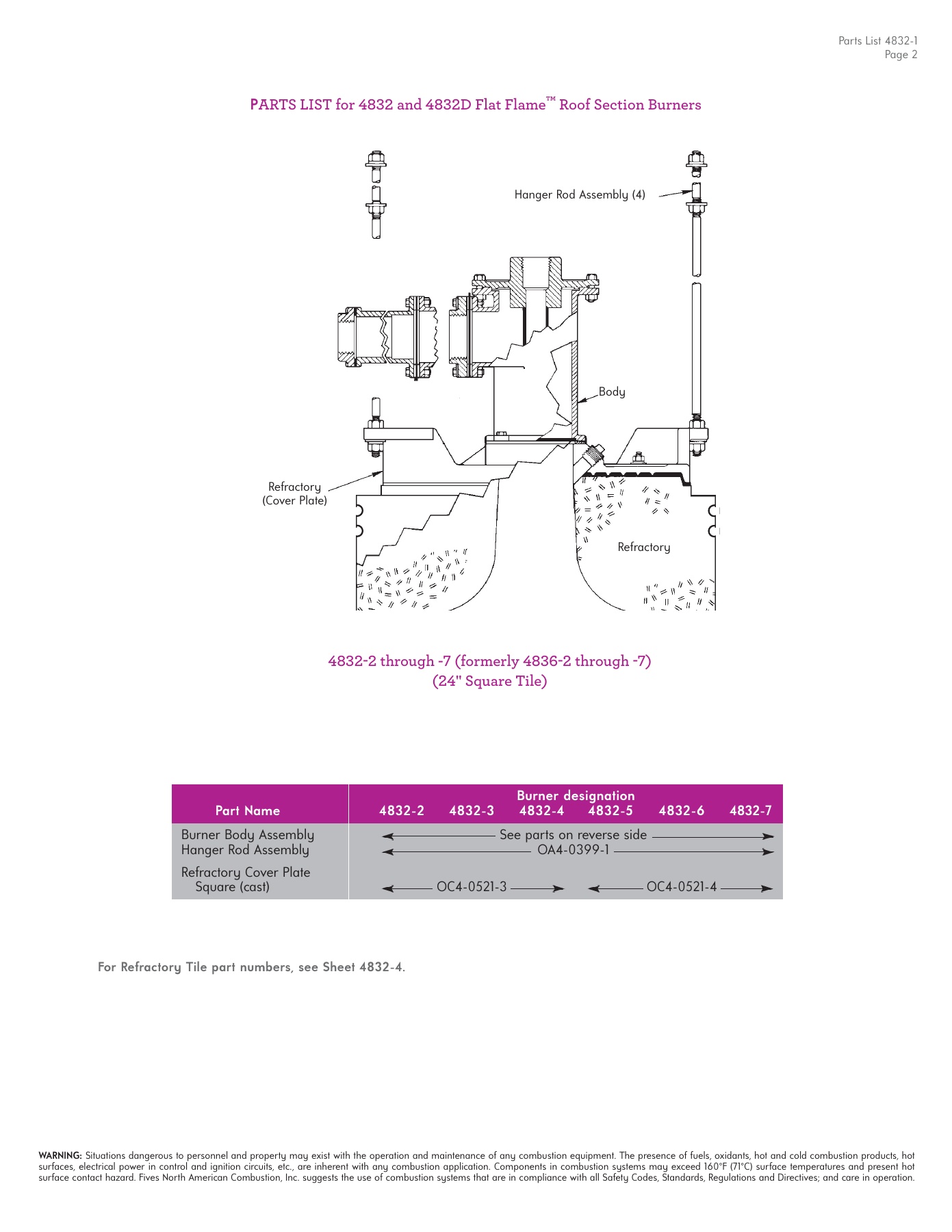

P

ARTS LIST for 4832 and 4832D Flat Flame™ Roof Section Burners

Burner designation

 Part Name

4832-2

4832-3

4832-4    4832-5

4832-6

4832-7

Burner Body Assembly

See parts on reverse side

Hanger Rod Assembly

OA4-0399-1

Refractory Cover Plate
 Square

(cast)

 OC4-0521-3

  OC4-0521-4

Refractory

(Cover Plate)

Refractory

Body

Hanger Rod Assembly (4)

For Refractory Tile part numbers, see Sheet 4832-4.

Parts List 4832-1

Page 2

4832-2 through -7 (formerly 4836-2 through -7)

(24" Square Tile)

WARNING:

Situations dangerous to personnel and property may exist with the operation and maintenance of any combustion equipment. The presence of fuels, oxidants, hot and cold combustion products, hot

surfaces, electrical power in control and ignition circuits, etc., are inherent with any combustion application. Components in combustion systems may exceed 160°F (71°C) surface temperatures and present hot
surface contact hazard. Fives North American Combustion, Inc. suggests the use of combustion systems that are in compliance with all Safety Codes, Standards, Regulations and Directives; and care in operation.
